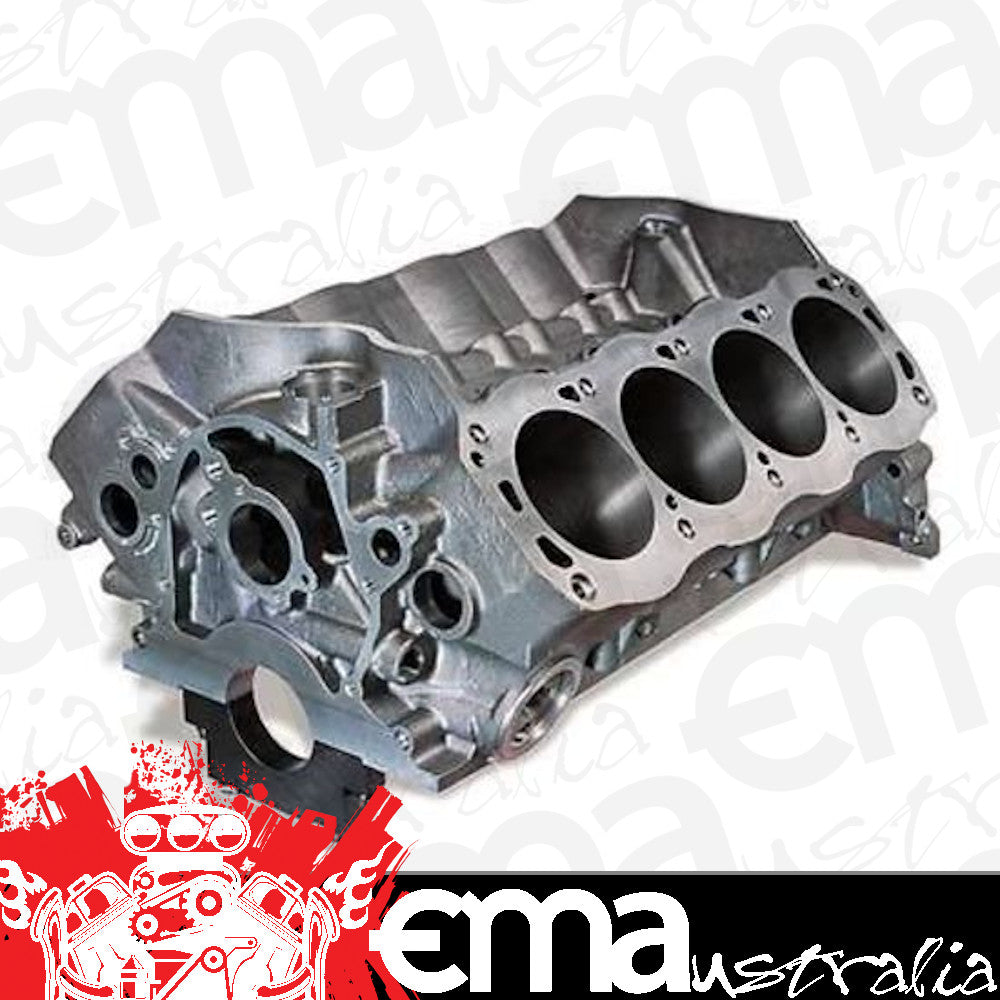

DART DA31384295 Ford SB Windsor Iron Eagle Block 4.125" Bore 4 Bolt Mains
SKU:DA31384295
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
A true race engine--Dart Iron Eagle small block Ford cast iron bare blocks are designed from the ground up!
Factory casting weaknesses have been addressed and improved upon them. The results? You get maximum efforts from your engine build with Dart's Iron Eagle Ford small blocks as your foundation!
Dart Iron Eagle small bock Ford cast iron bare block features:
- Dart blocks are fully CNC-machined for durability
- Multiple deck heights allow for increased displacements of up to 468 cubic inches
- Scalloped outer water jacket walls improve coolant flow around the cylinder barrels to prevent detonation, extend engine life and produce consistent cylinder temperatures
- 4-bolt billet steel main caps are standard. Three center caps have splayed outer bolts for maximum strength
- Two main bearing diameters 302 (2.249 in.) or 351C (2.749 in.) allow choice of small or large journal camshaft
- Upgraded oiling system has been completely redesigned with a low restriction priority main oiling system with external oil pump feed
- Reinforced head bolt bosses are blind tapped to prevent leaks and produce accurate torque readings (extra thick decks prevent head gasket leaks)
Engine Family: Ford small block Windsor
- Main Journal Type: 302 mains
- Engine Block Style: Aftermarket/OEM tall deck
- Deck Height (in): 9.200 in.
- Cylinder Bore as Shipped: 4.115 in.
- Cylinder Bore Diameter: 4.125 in.
- Maximum Bore Diameter: 4.185 in.
- Engine Block Material: Cast iron
- Main Bolt Style: 4-bolt
- Main Caps Included: Yes
- Main Cap Material: Steel
- Main Cap Fasteners Included: Yes
- Main Bearings Included: No
- Rear Main Seal Style: 1-piece
- Finished Cylinder Bores: No
- Raised Cam Location: No
- Cam Bearings Included: Yes
- Freeze Plugs Included: Yes
- Quantity: Sold individually.
- Notes: Block bores are .10 undersized to allow for piston set up.
