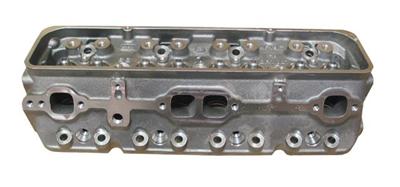

DART 10024370A Iron Eagle SS Cylinder Head Chev Vortec Assembled

Dart Iron Eagle S/S Cylinder Heads

These Dart Iron Eagle S/S cylinder heads are the perfect way to squeeze a little bit more performance out of your street engine. They are designed to offer many of the features of other high-end cylinder heads at a more affordable price. Dart produces these heads from premium, high-density cast iron with extra-thick decks for durability and power potential. These heads feature precision-cast 165cc intake ports and heart-shaped combustion chambers that are designed to produce great airflow without expensive or time-consuming porting. The hardened exhaust valve seats are fully compatible with unleaded fuels, and the multi-angle intake and radiused exhaust seats further improve flow, maximizing power. Dart utilizes screw-in rocker studs that won't pull out, even under heavy use, and the machined valve cover rails eliminate possible oil leaks. All you have to do is choose which combination of combustion chamber volume and valve size will best complement your engine, and whether you want fully assembled, bolt-on heads or bare, ready-to-build castings. Dart Iron Eagle S/S cylinder heads produce great throttle response and gains in low-to-midrange torque, just where you need it, for your street hot rod, musclecar, or pickup.

Combustion Chamber Volume (cc): 67
Intake Runner Volume (cc): 165cc
Exhaust Runner Volume (cc): 65cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast iron
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 1.940 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Straight
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.500 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.510 in.
Camshaft Style: Hydraulic flat tappet
Outside Diameter of Outer Spring (in.): 1.250 in.
Damper Spring Included: No
Number of Springs Per Valve: Single
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Valve Cover Mounting Style: Centerbolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze intake/Phosphorous bronze exhaust
Valve Seats Machined: Yes
Valve Seat Machine Style: 4-angle intake/3-angle exhaust
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: Yes
Remanufactured: No
Quantity: Sold individually (one head)
