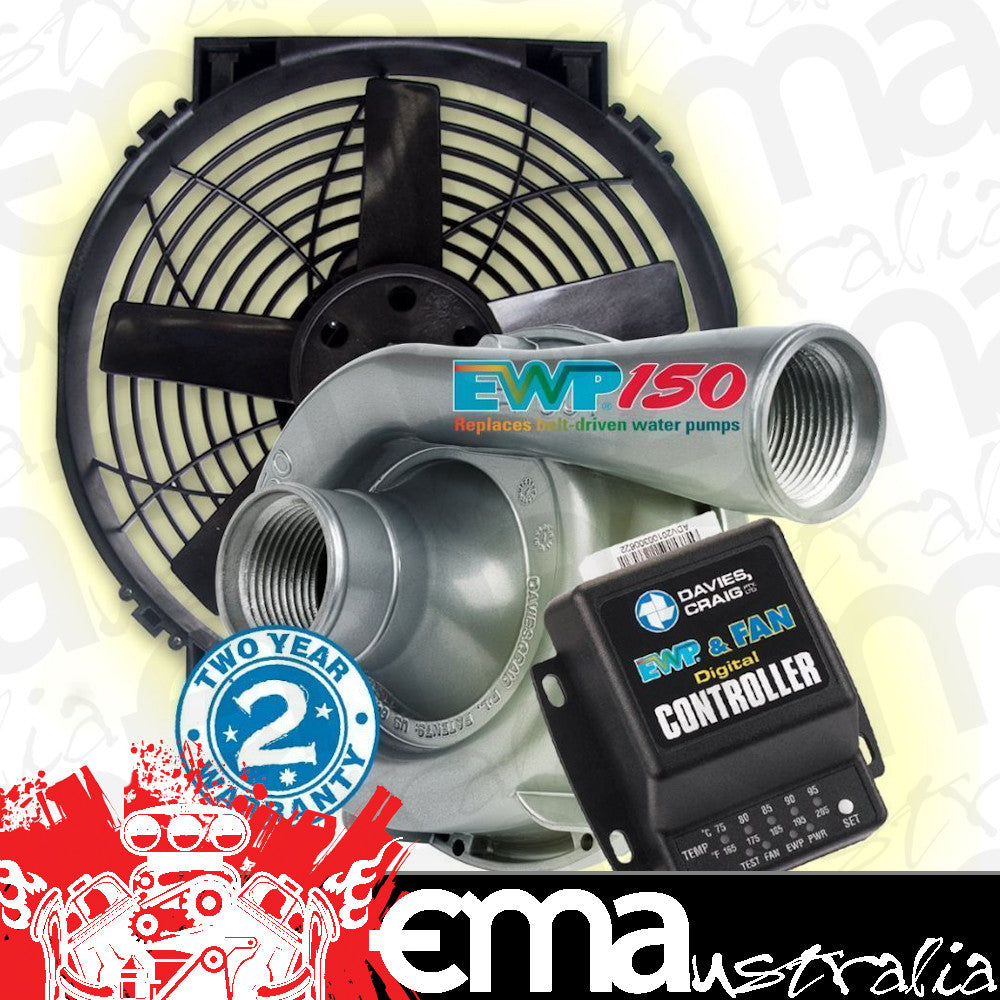

Davies Craig DC0003 EWP150 Electric Water Pump / Controller & Thermo Fan Combo

Davies Craig DC0003 EWP150 Electric Water Pump / Controller & Thermo Fan Combo

DC0003
Regular price $850.80 AUD
Regular price Sale price $850.80 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
 More payment options

Couldn't load pickup availability


DAVIES CRAIG EWP150 ELECTRIC WATER PUMP / CONTROLLER & THERMO FAN COMBO DC0003
The Davies Craig universal-fit, do-it-yourself EWP®150 Electric Water Pump, 16" thermatic fan and Fan Digital
Controller Combo Kits suit a wide variety of engines and also offer improved coolant flow and cooler engine operating
temperatures! The high performance 16” Thermatic Fan Kit complements the EWP® Combo Kit offering a more
consistent, higher air flow at lower speeds and at idle!
Fan Specs:
Pump & Controller
The revolutionary EWP®150 is now available in light weight aluminium bundled with our Digital Controller. Designed
with the high-performance pro, sprint, tarmac, circuit and drag racer in mind this rugged Alloy electric water pump has
AN-16 internal threads at inlet and outlet for neat, tight, dash fitting applications. All the same exciting features offered
on the EWP®150 are here on the street-smart alloy EWP.

Technical Specifications EWP Kit Contents
Operating voltage 3V DC to 15V DC EWP150 Alloy Pump 1
Maximum current 10A EWP & FAN Digital Controller 1
Flow rate 150 L/min (40 US gal/min) Inline Adaptor 1
Operating temp -40 to 130C (-40 to 266F) Wiring Harness with 10A Fuse 1
Pump design Clockwise Centrifugal Rubber Sleeves3mm 4
Pump Material Aluminium Hose Clamps 4
Pump weight 1,170 grams (2.60lbs) Hardware Bag:
Relay, Scotch Lock, Ring Terminal, Self Tapper
1
Burst pressure 500 kPa (72.5 psi)
Dimensions 128mm x 85mm x 188mm
Hose Sizes 38mm to 51mm(1-1/2" to 2")
Inlet & Outlet Internal Thread AN-16

This high capacity EWP®150 (40 US Gal/Min) is designed to replace and/or complement the existing belt driven mechanical water pump and when fitted with the Digital Controller, replaces the thermostat.
The major benefits a EWP®150 offers are:
> Minimise the parasitic power losses running a mechanical water pump at high speed when not needed
> Maximise engine warm-up & minimise the effects of heat soak by operating the EWP®150 after engine shut down.
The EWP®150 has the advantage of offering more consistent coolant flow independent of the engine revs. The fitment of the EWP® & Fan Digital Controller to your engine, which is scientifically calibrated to manage the volume/flow of engine coolant with the corresponding increase in coolant temperature within the engine's cooling system.
From start-up, the EWP® & Fan Digital Controller will 'system check' the EWP®150 and Thermatic Fan operating the pump and fan for approx. 10 seconds. Low engine temperature, low flow (10-on - 30-off pwm) reduces engine warm-up time, arriving at your targeted/set temperature quicker, assisting control the engine temperature within your -5 to +3 degree targeted/set temperature range. The Electric Thermatic Fan/s will be deployed at +3â—¦C above targeted/set temp if slower travel (traffic) or engine idle conditions continue. The EWP® & Fan Digital Controller will continue operating after a hot engine shut down for a approx. 2 minute period to help prevent damaging heat soak.



Manufacturer Part Number:
