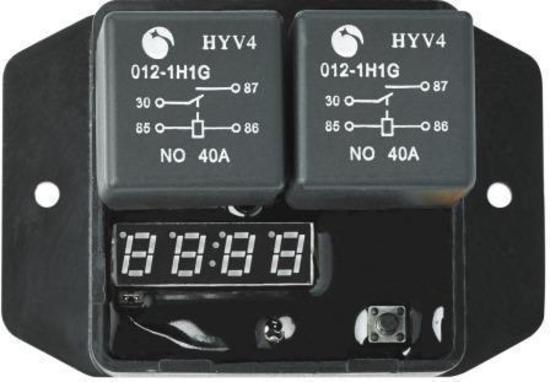

Davies Craig DC0444 Digital Thermatic Fan Switch Kit

Davies Craigs Digital Thermatic Fan Switch Kit can be used with Davies Craig Thermatic Fans, EWP's and competitors Fans.

It senses air temperature as it passes through the radiator with the sensor placed in the radiator fin section or the sensor can now also be placed directly into the coolant system in combination with a Temperature Sensor Adaptor Kit (Part 0409). It can be used for 12 or 24 volt applications and has an adjustable temperature range of 40ºC to 110ºC (104ºF to 230ºF) which can show Centigrade or Fahrenheit. Temp is set by pressing the set button. It can run 1 or 2 fans. The second fan (if applicable) will start 10 seconds after Fan #1 runs. It operated thermally & also when the air conditioning is in operation.

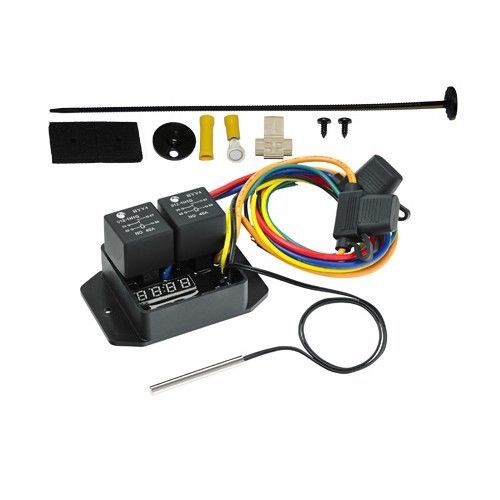

Kit Contains:

• Digital Fan Controller x 1
• Mount Kit x 1
• Scotch Lock x 1
• Ring Terminal (yellow) x 1
• Self Tap Screw x 2
• Connector (yellow) x 1

Davies, Craig Pty Ltd very own designed Digital Thermatic Fan Switch Kit can be used with our Thermatic Fans, EWP's & competitors Fans.

Simply set the temperature by pressing the set button.
It can run 1 or two fans. The second fan (if applicable) will start 10 seconds after Fan #1 runs. The fans will operate until the air temperature is reduced by 5 degrees (C) from the set temperature.

• • Probe connection 900mm long
• • Suitable for both 12v & 24v electrical systems
• • Adjustable temperature setting button, a simple change from Centigrade to Fahrenheit
• • Increase to 5°c for fan shut down
• • Increase to 10 secs. for second fan engagement
• *Note: Kit sold in 12 volt configuration, for 24 volt application, you will need to change the two relays with 24 volt units which are not supplied in the kit.

AIR TEMPRETURE APPLICATION:

It senses air temperature as it passes through the radiator and has an adjustable temperature range of 40ºC to 110ºC (104ºF to 230ºF). The Temperature Sensor is placed in the radiator fin section as close to the hot coolant inlet as possible, no need to cut hoses or can be placed directly into the coolant system.

WATER / COOLANT APPLICATION:
The DC0444 sensor can now also be placed directly into the coolant system. To help you identify if your DC0444 is capable of water / coolant applications, the sensor cable will be 1meter in length whilst the older DC0444 units only have a 50cm cable.

Specs:

• Max voltage: 15V
• Max curren 50A
• Relay setup: Dual relay
• Speed: Single speed - 10 sec. delay to start up the second fan

Applications: Suitable for single and dual fan applications

• Temperature Display: LED digital temp display – actual temp + set temp
• Temp Display: Centigrade+ Fahrenheit
• Temp settings: 40°c to 110°c (104°F to 230°F)
• Temp setting: Push Button
• Circuit type: Pre-programmed micro controller
• Output wires: Batt + Batt - IGN, AC Clutch, Fan #1, Fan #2 Thermistor Probe
• Dimensions: 95x65x56 mm
• Quantity: Sold as a kit
• Note: if using this switch for use with our EWP's, it will not vary the speed of the pump in response to engine temperature but rather turn the pump on and off at your set temperature. For EWP control, we would recommend part number 8020 which can manage both the EWP and your Thermatic Fans.
