Product Information

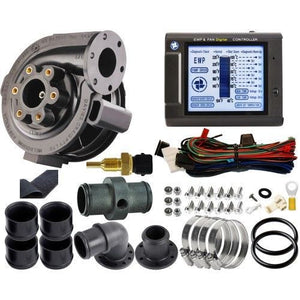

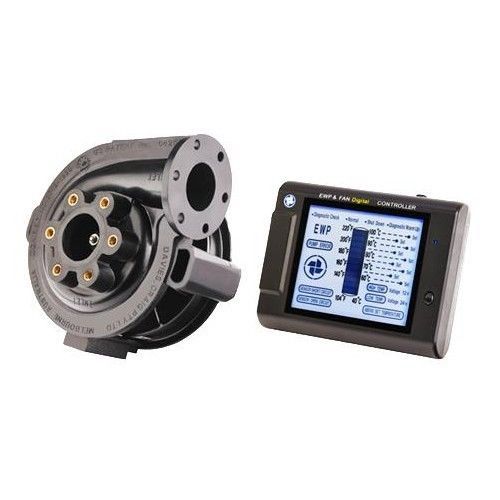

DAVIES CRAIG ELEC WATER PUMP & LCD CONTROLLER KIT DC8907 FOR ENGINES UP TO 3 LITRES
The unique LCD EWP®/Fan Digital Controller will manage the operation of your chosen EWP® by varying the speed of your pump in response to coolant temperature and manage control of your electric Thermatic® Fan, No need for a separate thermal switch. The Controller varies the speed of your EWP® looking for, and locking onto your target temp. If the engine temp goes 3 degrees C over the target, the Controller will run your radiator fan until the target temp is restored. And it now does 12 & 24 Volt.
This LCD EWP®/Fan Digital Controller is Australian designed and as part of this Australian manufacturing company's continuous improvement program this advanced Digital Controller boasts a suite of enhancements.
These include:
• The prominent blue Liquid Crystal Display screen (pictured)
• Now suitable for all 12v & 24v electrical systems, with relevant displays
• Genuine Thermometer, with coolant and targeted/set temp. displays
• Diagnostic check & warm-up signals
• Nine (9) targeted/set coolant temperatures, 60C (140F) to 100C (212F)
• Flashing “EWP®” logo signifying water pump in operation
• Davies Craig Thermatic® Fan logo, circulating signifying fan in operation
• Flashing High & Low Voltage indicators
• Low & High Temp indicators
• Audible alarm -
* if coolant temp doesn't exceed 40ºC (104ºF) within 5 mins of start-up
* when coolant temperature exceeds 10ºC (50ºF) of set/target
* when coolant temperature exceeds 100ºC (212ºF)
• Above Set/Target Temperature indicator accompanies audible alarm
• Temperature Sensor short & open circuit indicators
• Automatic time-out, EWP® runs for 3 minutes or until engine temp has reduced to -10â—¦C (-14F) below set/targeted temp whichever occurs first.
The updated Davies, Craig LCD EWP®/Fan Digital Controller as an engine management component has undergone extensive research, development, vehicle and test centre scrutiny.
The updated LCD Digital Controller how has two specific functions. This unique Controller will now manage the operation of the EWP® by varying the speed of the EWP® in response to the temperature of the engine and manage control of your electric engine fan. The Controller has a push-button on the facia panel that offers target temperatures, 60ºC (140°F) 65ºC (150°F) 70C (160°F) 75ºC (165°F) 80ºC (175°F) 85ºC (185°F) 90ºC (195°F) 95ºC (205°F). Generally, higher engine temperature will offer improved fuel efficiency and lower engine temperature more power. The LCD Digital Controller will now operate the engine's electric fan automatically once the engine has reached +3c above the target temperature. A significant benefit too is the Controller allows the EWP® to run on after ignition shutdown to reduce heat soak. It is recommended that engine operational temperatures be checked with manufacturer.
Pump Specs:
Application: Suit Engines Up To 3 Litres Pump design: Clockwise Centrifugal with volute chamber
Pump Material: Nylon 66, 30% glass filled
Flow Rate (Max): 80 L/pm @13.5V DC
Operating Voltage: 3V DC to 15V DC
Maximum curren 7.5A
Operating temp: -20° to 130°C (-4° to 266°F)
Burst pressure: 350 kPa (50 psi)
Hose Sizes: 32mm to 51mm (1-1/4" to 2")
Inlet & Outle Internal Thread AN-16
Weigh 900 grams (2.0lbs)
Quantity: Sold as a kit.


.



Product Information

DAVIES CRAIG ELEC WATER PUMP & LCD CONTROLLER KIT DC8907 FOR ENGINES UP TO 3 LITRES
The unique LCD EWP®/Fan Digital Controller will manage the operation of your chosen EWP® by varying the speed of your pump in response to coolant temperature and manage control of your electric Thermatic® Fan, No need for a separate thermal switch. The Controller varies the speed of your EWP® looking for, and locking onto your target temp. If the engine temp goes 3 degrees C over the target, the Controller will run your radiator fan until the target temp is restored. And it now does 12 & 24 Volt.
This LCD EWP®/Fan Digital Controller is Australian designed and as part of this Australian manufacturing company's continuous improvement program this advanced Digital Controller boasts a suite of enhancements.
These include:
• The prominent blue Liquid Crystal Display screen (pictured)
• Now suitable for all 12v & 24v electrical systems, with relevant displays
• Genuine Thermometer, with coolant and targeted/set temp. displays
• Diagnostic check & warm-up signals
• Nine (9) targeted/set coolant temperatures, 60C (140F) to 100C (212F)
• Flashing “EWP®” logo signifying water pump in operation
• Davies Craig Thermatic® Fan logo, circulating signifying fan in operation
• Flashing High & Low Voltage indicators
• Low & High Temp indicators
• Audible alarm -
* if coolant temp doesn't exceed 40ºC (104ºF) within 5 mins of start-up
* when coolant temperature exceeds 10ºC (50ºF) of set/target
* when coolant temperature exceeds 100ºC (212ºF)
• Above Set/Target Temperature indicator accompanies audible alarm
• Temperature Sensor short & open circuit indicators
• Automatic time-out, EWP® runs for 3 minutes or until engine temp has reduced to -10â—¦C (-14F) below set/targeted temp whichever occurs first.
The updated Davies, Craig LCD EWP®/Fan Digital Controller as an engine management component has undergone extensive research, development, vehicle and test centre scrutiny.
The updated LCD Digital Controller how has two specific functions. This unique Controller will now manage the operation of the EWP® by varying the speed of the EWP® in response to the temperature of the engine and manage control of your electric engine fan. The Controller has a push-button on the facia panel that offers target temperatures, 60ºC (140°F) 65ºC (150°F) 70C (160°F) 75ºC (165°F) 80ºC (175°F) 85ºC (185°F) 90ºC (195°F) 95ºC (205°F). Generally, higher engine temperature will offer improved fuel efficiency and lower engine temperature more power. The LCD Digital Controller will now operate the engine's electric fan automatically once the engine has reached +3c above the target temperature. A significant benefit too is the Controller allows the EWP® to run on after ignition shutdown to reduce heat soak. It is recommended that engine operational temperatures be checked with manufacturer.
Pump Specs:
Application: Suit Engines Up To 3 Litres Pump design: Clockwise Centrifugal with volute chamber
Pump Material: Nylon 66, 30% glass filled
Flow Rate (Max): 80 L/pm @13.5V DC
Operating Voltage: 3V DC to 15V DC
Maximum curren 7.5A
Operating temp: -20° to 130°C (-4° to 266°F)
Burst pressure: 350 kPa (50 psi)
Hose Sizes: 32mm to 51mm (1-1/4" to 2")
Inlet & Outle Internal Thread AN-16
Weigh 900 grams (2.0lbs)
Quantity: Sold as a kit.


.
