DEI010496Onyx Pipe Shield 4"x8"
Product Information

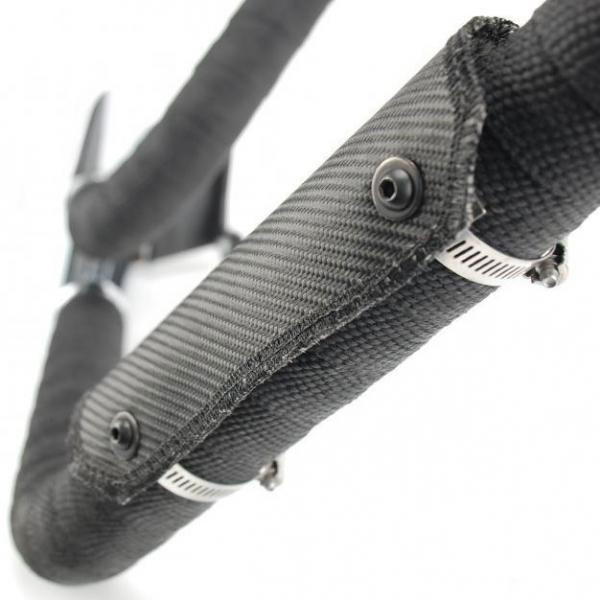

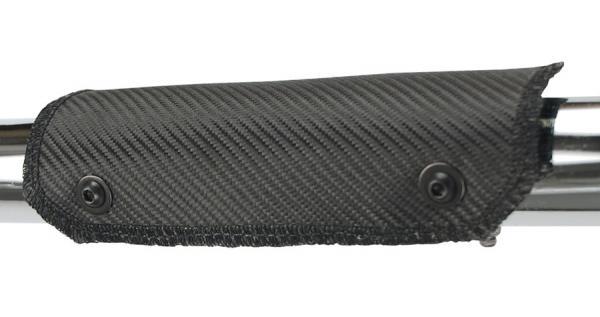

DEI has launched the next generation of heat protection performance! Using a combination of advanced textiles, DEI developed a flexible heat shield solution that looks great and outperforms other conventional heat shields available today. This enhanced performance starts by joining two durable materials together forming a dual-layer design. The outer layer is made from heat-treated glass fiber that is bonded with molten aluminum and then formed into a tight weave for durability and strength.The inside material is made of a specially treated, high temperature resistant fabric (89% silica) designed to withstand some serious exhaust heat. The outer edge is finished off with a surge stitch for durability. All hardware is stainless steel. The result is a product with very good thermal performance up to 1350°F, with an eye catching rich black finish.This proprietary textile technology combined with DEI’s unique shield standoff bracket design provides the maximum potential for cooling and heat dissipation. In addition to external applications protecting legs and boots, Flexible Pipe Shields can also be used as a barrier between the exhaust and plastic bodywork, suspension components, or electrical harnesses. They will fit many applications and because the shield remains flexible, it will fit most pipe diameters.
Fits Tubing Diameter: 2.500 in.
Length (in): 8.000 in.
Width (in): 4.000 in.
Installation: Worm clamp
Maximum Ambient Temperature (F): 1,350 degrees F
Heat Shield Material: Fiberglass/Silica
Heat Shield Finish: Black
Quantity: Sold as a kit.
Notes: Includes two stainless clamps.
Product Information
DEI has launched the next generation of heat protection performance! Using a combination of advanced textiles, DEI developed a flexible heat shield solution that looks great and outperforms other conventional heat shields available today. This enhanced performance starts by joining two durable materials together forming a dual-layer design. The outer layer is made from heat-treated glass fiber that is bonded with molten aluminum and then formed into a tight weave for durability and strength.The inside material is made of a specially treated, high temperature resistant fabric (89% silica) designed to withstand some serious exhaust heat. The outer edge is finished off with a surge stitch for durability. All hardware is stainless steel. The result is a product with very good thermal performance up to 1350°F, with an eye catching rich black finish.This proprietary textile technology combined with DEI’s unique shield standoff bracket design provides the maximum potential for cooling and heat dissipation. In addition to external applications protecting legs and boots, Flexible Pipe Shields can also be used as a barrier between the exhaust and plastic bodywork, suspension components, or electrical harnesses. They will fit many applications and because the shield remains flexible, it will fit most pipe diameters.Fits Tubing Diameter: 2.500 in.
Length (in): 8.000 in.
Width (in): 4.000 in.
Installation: Worm clamp
Maximum Ambient Temperature (F): 1,350 degrees F
Heat Shield Material: Fiberglass/Silica
Heat Shield Finish: Black
Quantity: Sold as a kit.
Notes: Includes two stainless clamps.
