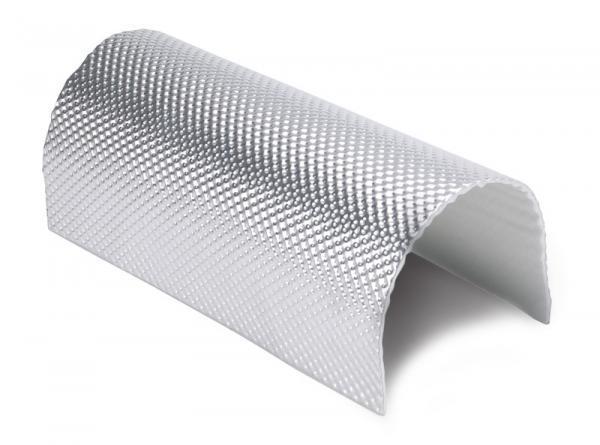

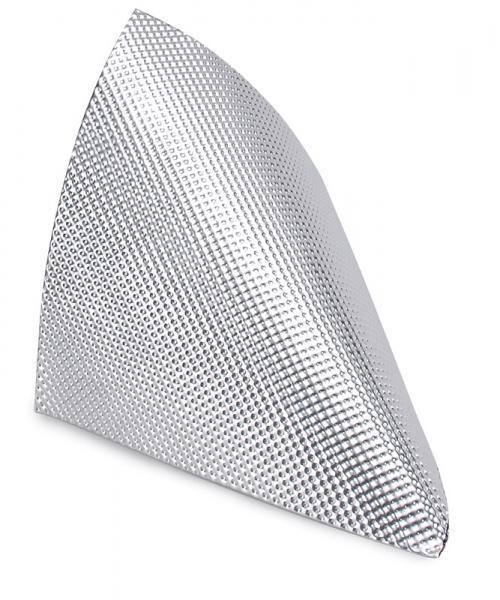

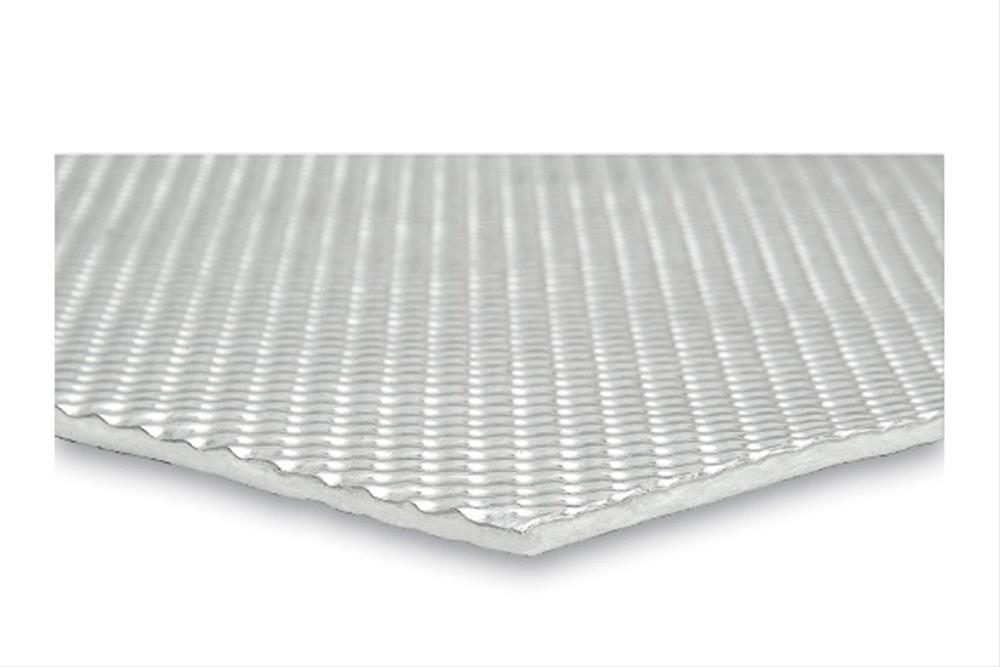

DEI Design Engineering DEI050508 Floor & Tunnel Shield II 21"x48" (7.0sqft)

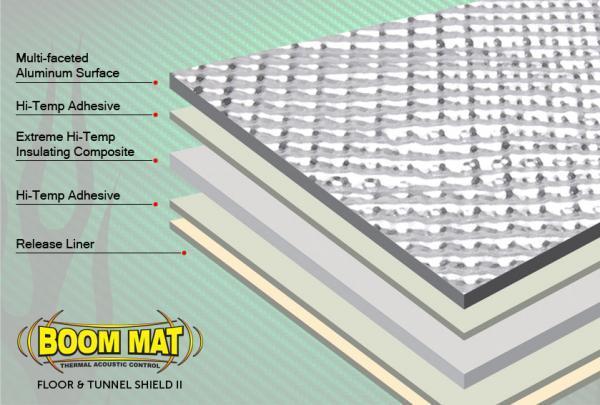

Designed to provide the best possible heat protection in areas where high temperatures are always present and problematic, Floor & Tunnel Shield II limits heat transfer on fire walls, transmission tunnels, floor boards, fuel cells and other areas where heat is an issue. Floor & Tunnel Shield II provides excellent light weight thermal protection, acts as a guard against track and road debris, and provides sound deadening as well.Constructed with an embossed 10 mil aluminum face bonded to 1/8" composite glass-fiber core and backed with a high temp super strong pressure sensitive backing, Floor & Tunnel Shield II withstands up to 1750°F of direct continuous heat. The adhesive side holds past 450°F. Its improved multifaceted modern aluminum surface offers improved reflectivity and rigidity and allows for ease of installation. At only 5/16" thick, this product can be shaped and trimmed for a custom fit and is ideal for minimal clearance areas.With a unique and patented finely woven glass-fiber backing, Floor & Tunnel Shield II is the easiest, most cost effective way to control thermal transfer while protecting expensive components and vehicle occupants from extreme heat situations and sound.Floor & Tunnel Shield II can be used on any number of surfaces including, metal, aluminum, carbon fiber, plastic, and more. Multiple uses include: fire walls, under hoods, transmission tunnels, floor pans, fuel cells, and exterior under vehicle locations – anywhere to reflect damaging heat.

Mat Use: Heat barrier
Length (in): 21.000 in.
Width (in): 48.000 in.
Thickness (in): 0.313 in.
Installation: Self-adhesive
Maximum Ambient Temperature (F): 1,750 degrees F
Quantity: Sold individually.
Notes: DEI Cool Tape is suggested for sealing Floor and Tunnel Shield-II edges and seams.
