Derale 13614 17 Row Series 9000 Plate & Fin Transmission Cooler Kit, 1/2" NPT

13614 17 Row Series 9000 Plate & Fin Transmission Cooler Kit, 1/2" NPT

1 3
Derale
Derale Part No. DP13614
$299.10 AUD
$299.10 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

DP13614

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

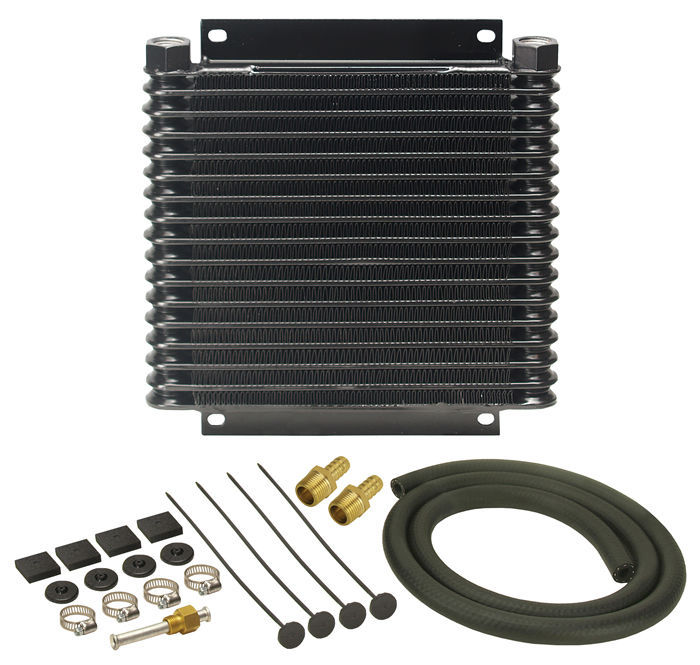

Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Product Information

Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Technical Information

Features
• 17 Row Series 9000 Plate & Fin Transmission Cooler Kit, 1/2" NPT
Specifications
Manufacturer
Derale
MPN
Not provided
UPC
083277136146
Our Part Number
DP13614
Color: Black
Cooler style: Plate & Fin
Depth: 1-1/4
Fitting size: 3/8 barb
Height: 10-5/8
Hose length: 4
Hose size: 3/8
Inlet dim: 8-1/2
Inlet size: 1/2 NPT female
Material: Aluminum

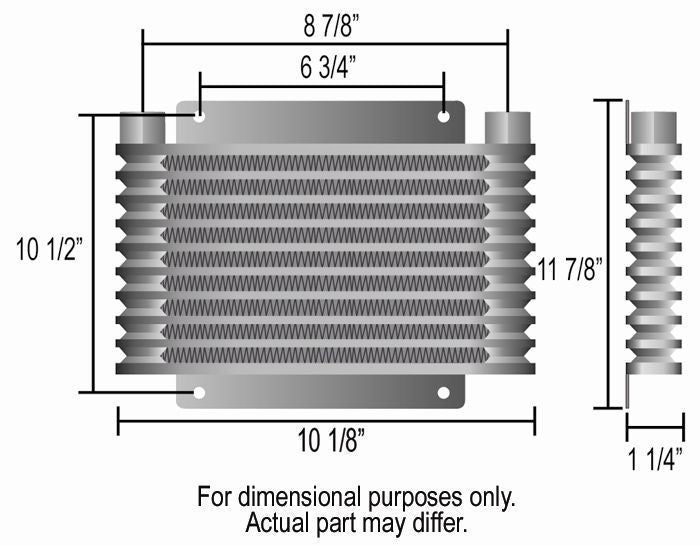

Mounting: 6-11/16 x 9-13/16
Width: 9-3/4
Prop 65: Yes
Overall Height (in): 11.875 in.
Overall Width (in): 10.125 in.
Overall Thickness (in): 1.250 in.
Cooler Construction: Tube and fin
Cooler Material: Aluminum
Inlet Size: 1/2 in. NPT 0.630 in.
Inlet Attachmen Female threads
Outlet Size: 1/2 in. NPT
Outlet Attachmen Female threads
Number of Cooling Rows: 17
Core Width (in): 10.125 in.
Core Thickness (in): 1.250 in.
Cooler Finish: Black painted
Quantity: Sold as a kit.
Notes: 22500 GVW rated.
