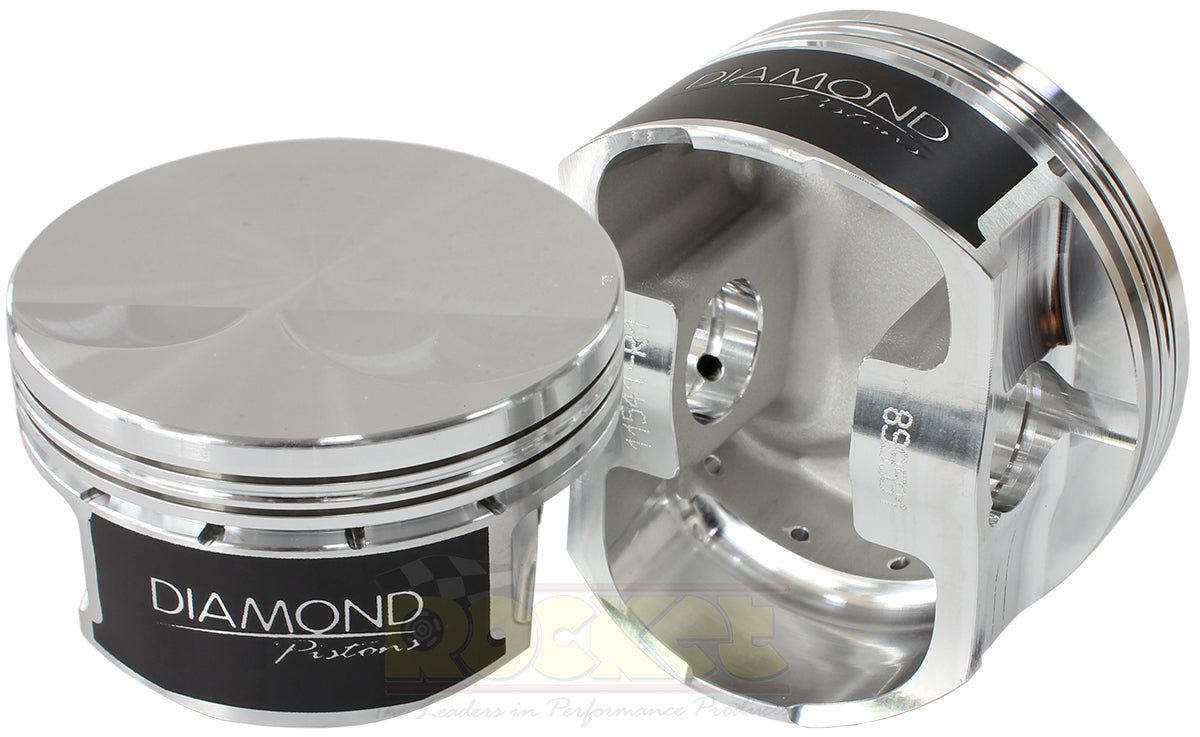

Ls3 L92 4.005" B -2Cc
Product Information
Piston Specifications:
- Block: LS2
- Bore: 4.005"
- Stroke: 4.000"
- Rod: 6.125"
- Comp Heigh: 1.115"
- Weight: 413
- Pin: .927 x 2.500"
- CC's: Flat Top -2.0cc
- Comp Ratio With 62cc Head: 12.2
- Comp Ratio With 70cc Head: 11.1
- Comp Ratio With 76cc Head: 10.4
- Ring Set: 09454005
Piston Features:
- 3D milling on piston crowns for ready to install finish
- Valve pockets designed to work with most aftermarket cylinder heads
- Offset pins for quiet operation
- Moly skirt coating for friction loss and skirt wear protection
- Top ring down dimension: .250"
- Ratios figured for .040 head gasket
- Premium 1.2mm x 1.2mm x 3.0mm ring package included
- Premium 8620 .185W wrist pins included
- Valve pocket depth: 0.176" intake and .105" exhaust
- 2618 material for High HP-NOS-Boost applications
