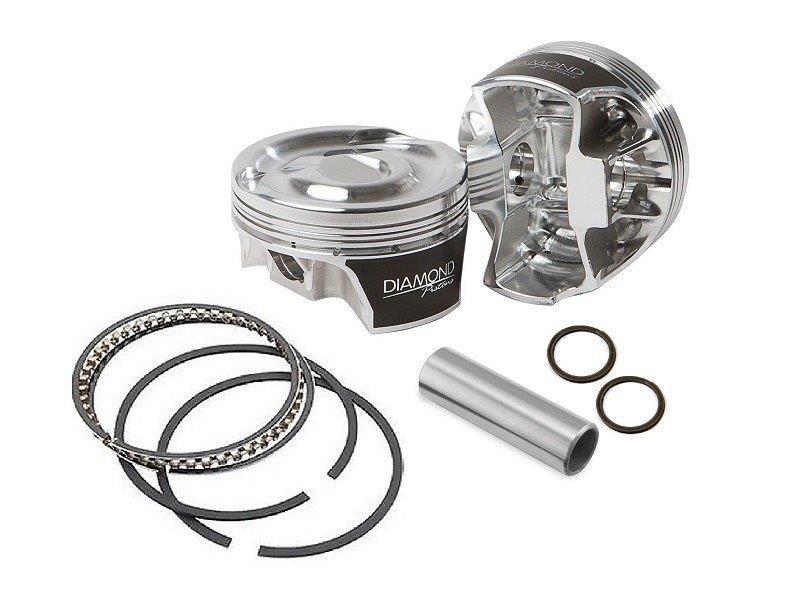

Diamond Pistons D11588-R1-8 Ls9 Lsa 4.065" Bore

Ls9 Lsa 4.065" Bore

Name: Diamond Pistons D11588-R1-8 Ls9 Lsa 4.065" Bore
Brand: Diamond Pistons
SKU: D11588-R1-8
Price: 1988.90 AUD
Availability: InStock

1 2

Diamond Pistons

Diamond Pistons Part No. D11588-R1-8

$1,988.90 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:D11588-R1-8

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

Availability: In-Store - Ready to Ship^*

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

View full details

Product Information

Piston Specifications:

Product Information

Piston Specifications:

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications

Manufacturer: Diamond Pistons
MPN: Not provided
UPC: Not provided
Our Part Number: D11588-R1-8

Piston Specifications:
Block: LSA
Bore: 4.065
Stroke: 3.622
Rod: 6.125
Comp Heigh: 1.304
Weight: N/A
Pin: .927 x 2.500"
CC's: Dish Top -11.0
Comp Ratio With 62cc Head: N/A
Comp Ratio With 70cc Head: 9.5
Comp Ratio With 76cc Head: N/A
Ring Set: 09454065
Piston Features: 3D milling on piston crowns for ready to install finish
Notes: Valve pockets designed to work with most aftermarket cylinder heads
Offset pins for quiet operation: Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .250"
Ratios figured for.040 head gasket: Premium 1.2mm x 1.2mm x 3.0mm ring package included
Premium 8620.185W wrist pins included:
Valve pocket
depth: 0.178" intake and.108" exhaust
Notes: 2618 material for High HP-NOS-Boost applications

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

Diamond Pistons

Diamond Pistons products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.
