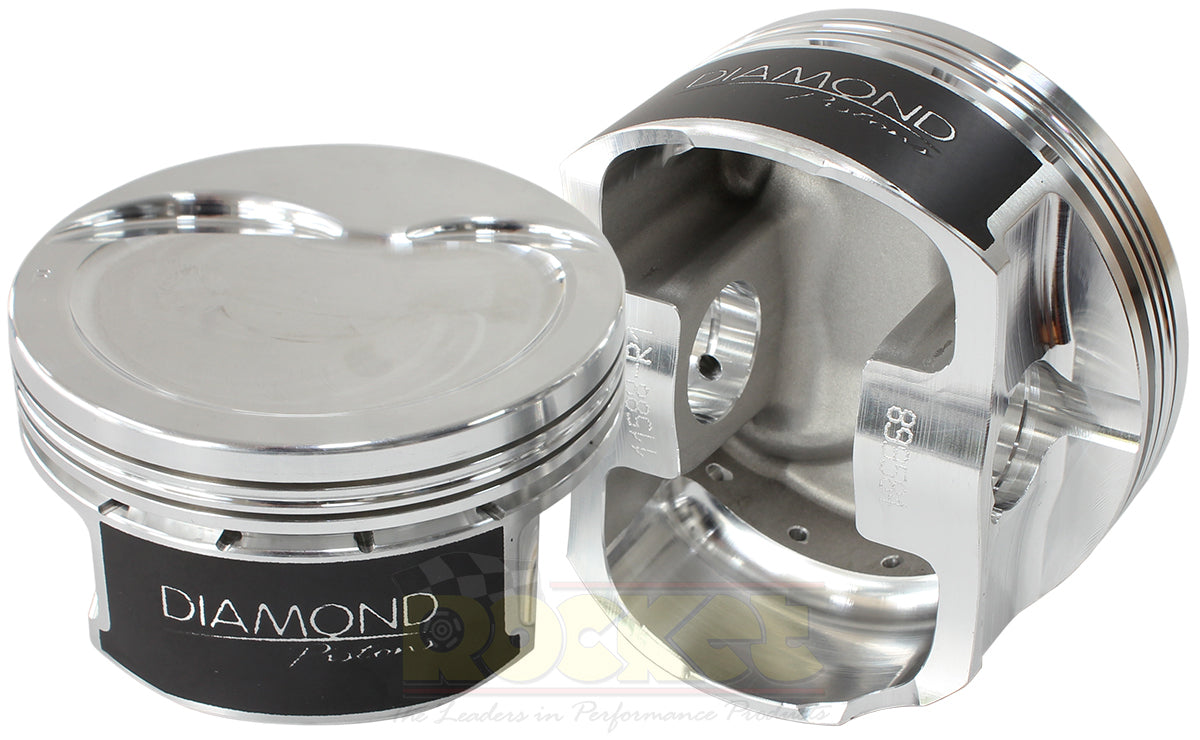

Diamond Pistons D11589-R1-8-STD Lsa Dish Top Forged Pistons 4.070" Bore 3.622" Stroke 6.098" Rod Length -11Cc Dome Volume

Item Description

Piston Specifications:

  • Piston Specifications:
  • Block: LSA
  • Bore: 4.070
  • Stroke: 3.622
  • Rod: 6.098
  • Comp Heigh: 1.331
  • Weight: N/A
  • Pin: .945 x 2.500"
  • CC's: Dish Top -11.0
  • Comp Ratio With 62cc Head: N/A
  • Comp Ratio With 70cc Head: 9.5
  • Comp Ratio With 76cc Head: N/A
  • Ring Set: 09454070

Piston Features:

  • 3D milling on piston crowns for ready to install finish
  • Valve pockets designed to work with most aftermarket cylinder heads
  • Offset pins for quiet operation
  • Moly skirt coating for friction loss and skirt wear protection
  • Top ring down dimension: .250"
  • Ratios figured for .040 head gasket
  • Premium 1.2mm x 1.2mm x 3.0mm ring package included
  • Premium 8620 .185W wrist pins included
  • Valve pocket depth: 0.178" intake and .108" exhaust
  • 2618 material for High HP-NOS-Boost applications


Manufacturer Information

  • Manufacturer: Diamond Pistons
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
