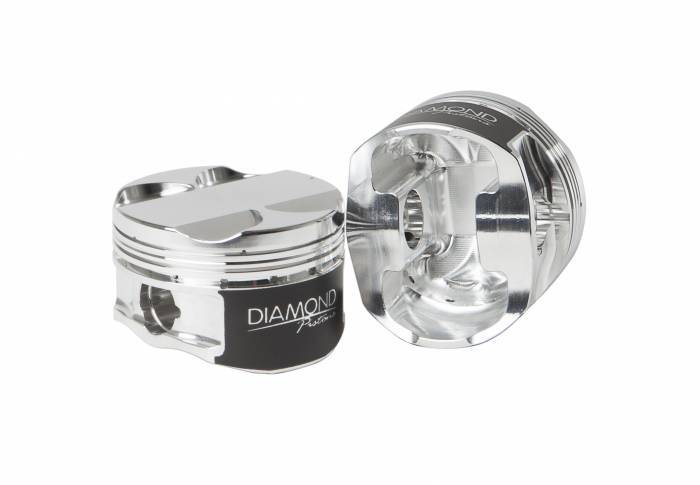

Toy 2Jzgte 86.5mm Piston -14.5
Product Information
Piston Specifications:
- Block: Toyota 2JZGTE
- Bore: 86.5mm
- Stroke: 86mm
- Rod: 5.590"
- Comp Heigh: 1.338"
- Weight: N/A
- Pin: .866 x 2.250"
- CC's: Dish Top -14.5
- Comp Ratio With 45cc Head: 8.5
- Ring Set: 09513405
Piston Features:
- 3D milling on piston crowns for ready to install finish
- Offset pins for quiet operation
- Moly skirt coating for friction loss and skirt wear protection
- Side gas ports for better ring seal
- Ratios figured for 87mm x .040 head gasket @ 8.621 deck
- Top ring down dimension: .300" 1.338cd - .280" 1.180cd
- Premium 8620 .180W wrist pins chamfered for roundwire locks included
- Premium 1.0mm x 1.2mm x 2.8mm ring package included
- Oversized valve pockets - for larger than stock valve sizes
- Valve pocket depth: 0.245" intake and .230" exhaust
- 2618 material for High HP/Boost applications
