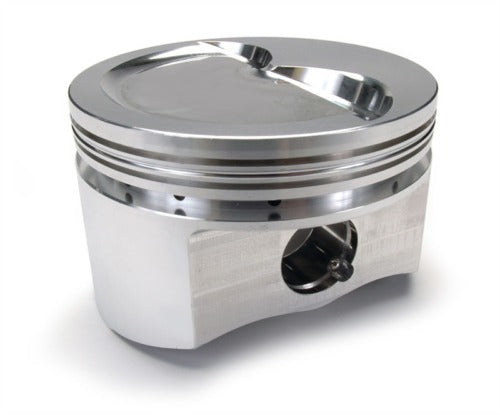

Diamond Pistons DIA11405 Diamond Racing Chev Small Block 350 - 4.030 Bore D-Shaped Dish Pistons

Item Description

Diamond Racing DIA11405 Chev Small Block 350 - 4.030 Bore D-Shaped Dish PistonsSB Chevy 350, Bore 4.030, Stroke 3.750, Rod Length 6.000, Dish -18cc, Set of 8Small Block Chevy Diamond D-Shaped Pistons are made from lightweight 4032 alloy making them great for a street replacement piston. They're designed to fit most 23 Degree cylinder heads. Standard 1/16" x 1/16" x 3/16" ring package (Rings not Included). Premium 8620 wrist pins included. Top ring down=minimum .190", valve relief depths = .295" intake and .200" exhaust.Compression Ratio with 64cc Heads 9.5:1
Compression Ratio with 70cc Heads 9:1
Advertised piston weight 393 gramsCompression Ratios
64cc 70cc 76cc
9.5:1 9.0:1 8.5:1
Part Number 11405
Bore 4.030"
Stroke 3.750"
Rod Length 6.000"
Comp. Height 1.125"
Wrist Pin .927" x 2.500"
Top Ring Down
.190"
Piston Material 4032 Alloy
Piston Style Dish
Volume -18.0cc
Ring Stack
1/16" x 1/16 x 3/16
