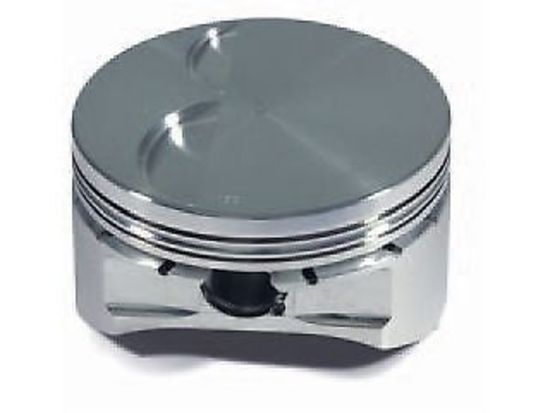

Diamond Pistons DIA11529 Diamond Racing Flat Top Pistons & Rings Chev Holden Ls1 4.060"

Racing Flat Top Pistons & Rings Chev Holden Ls1 4.060"

Skip to product information
1 of 2
Diamond Pistons Part No. DIA11529
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:DIA11529

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

DIAMOND RACING FLAT TOP PISTONS & RINGS CHEV HOLDEN LS1 4.060" DIA11529Since 1968, Diamond Racing has been producing the highest quality racing parts around.From the early 70's Diamond has been concentrating on manufacturing forged pistons for the racing industry. In the 70's, 80's and early 90's Diamond Racing was known for its championship winning engines and its custom forged racing pistons. From the late 90's to current day Diamond has solely dedicated itself to manufacturing forged pistons. With this being said, Diamond has updated all of its machinery so they can offer customers the state of the industry in machining. The result is a top quality piston for you engine!Specs:Compression Ratios (Calculated for .000" Deck @ 9.240)"
62cc
66cc
70cc
12.5:1
11.9:1
11.4:1
* Includes Oil Rail Supports & Ring Set
Part Number
11529
Bore
4.060"
Stroke
4.000"
Rod Length
6.125"
Comp. Height
1.115"
Wrist Pin
.927" x 2.500"
Top Ring Down
.210" to .250"
Piston Material
2618 Alloy
Piston Style
Flat Top
Volume -2cc
Ring Stack
1.5mm x 1.5mm x 3.0mm



Product Information

DIAMOND RACING FLAT TOP PISTONS & RINGS CHEV HOLDEN LS1 4.060" DIA11529Since 1968, Diamond Racing has been producing the highest quality racing parts around.From the early 70's Diamond has been concentrating on manufacturing forged pistons for the racing industry. In the 70's, 80's and early 90's Diamond Racing was known for its championship winning engines and its custom forged racing pistons. From the late 90's to current day Diamond has solely dedicated itself to manufacturing forged pistons. With this being said, Diamond has updated all of its machinery so they can offer customers the state of the industry in machining. The result is a top quality piston for you engine!Specs:Compression Ratios (Calculated for .000" Deck @ 9.240)"
62cc
66cc
70cc
12.5:1
11.9:1
11.4:1
* Includes Oil Rail Supports & Ring Set
Part Number
11529
Bore
4.060"
Stroke
4.000"
Rod Length
6.125"
Comp. Height
1.115"
Wrist Pin
.927" x 2.500"
Top Ring Down
.210" to .250"
Piston Material
2618 Alloy
Piston Style
Flat Top
Volume -2cc
Ring Stack
1.5mm x 1.5mm x 3.0mm



Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Diamond Pistons
MPN
Not provided
UPC
Not provided
Our Part Number
DIA11529

Contact our team for specifications not listed in the description.

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

Diamond Pistons

Diamond Pistons products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.

Read more about Diamond Pistons →
