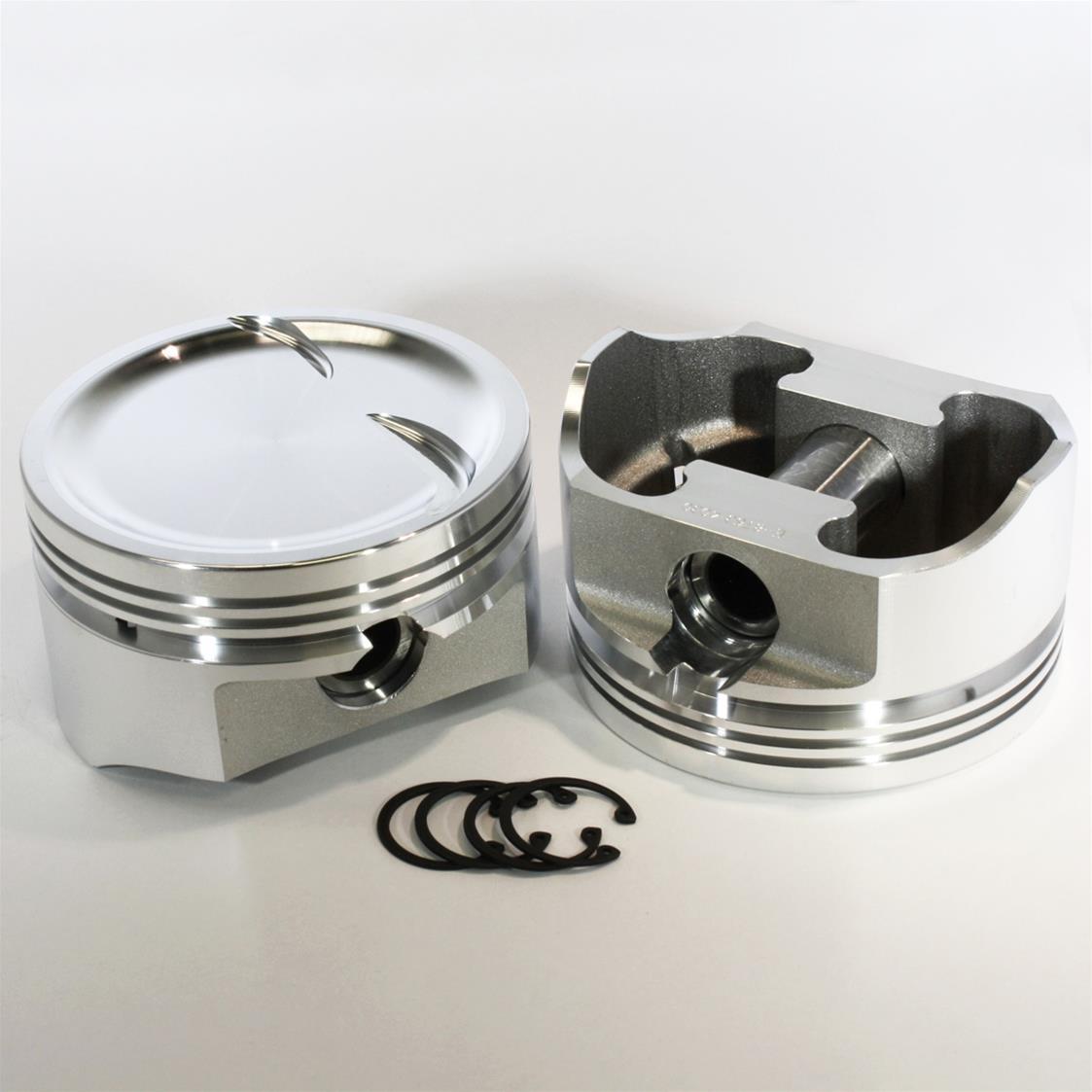

Ford SB Windsor 5.8L Forged Pistons 4.030" Bore Sx-Series (set of 8)
Product Information
D.S.S. E Series forged pistons are fully forged and machined from a 4032 alloy material with precision-honed piston pin bores and include heavy-duty piston pins.
The pistons are full-floating or press-fit compatible and use double true arc pin locks, forged oil drainbacks, double valve notches, and diamond turned piston skirts. Get high-quality pistons at a great price--try a set of D.S.S. E Series forged pistons today!
- Piston Rings Included:No
- Bore (in.):4.030 in.
- Bore (mm):102.362mm
- Stroke:4.000 in.
- Engine Stroke Type:Stroked
- Rod Length:6.200 in.
- Piston Style:Dish, with two valve reliefs
- Piston Material:Forged aluminum
- Compression Height (in.):1.280 in.
- Piston Head Volume (cc):+18.00cc
- Wrist Pin Style:Press-fit or floating
- Wrist Pin Retainers Included:Yes
- Wrist Pin Included:Yes
- Pin Diameter (in.):0.927 in.
- Piston Ring Thickness:5/64 in. x 5/64 in. x 3/16 in.
- File Fit:No
- Gapless:No
- Quantity:Sold as a set of 8.
