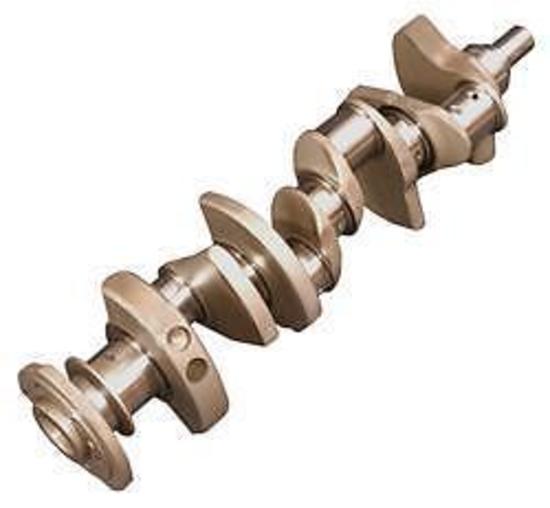

Eagle EA435034805700 Forged 4340 Crankshaft 3.480" Stroke Chev 305-350 Int Bal

EAGLE FORGED 4340 CRANKSHAFT 3.480" STROKE CHEV 305-350 INT BAL EA435034805700

Eagle "ESP" 4340 steel cranks feature exceptional strength and unsurpassed quality at a reasonable price. The perfect choice for high performance application. These 4340 cranks are comparably priced with other cranks of lesser strength. These cranks start as forged 4340 steel non-twist forgings that undergo a multi-stage heat treat process and x-rayed, magnafluxed and sonic tested to ensure your crank is free of cracks, air pockets and any imperfections that could occur during the forging process. They are stress relieved and shot peened for durability and longevity. During the machining process, the crank is indexed for correct stroke and all of the rod & main journals receive a .125" radius in the corners for increased strength. The journals are then precision ground & micro-polished to an R.A. of less than 5 and Nitrided for superior wear resistance. All of the oiling holes are cross drilled & chamfered for improved oiling to the rods and mains. Counterweights are designed for easy balancing and do not require any machining for block clearance. Each "ESP" crankshaft is inspected for dimension, size and stroke accuracy so you know it is capable of going from the box to your block without worries. Eagle also guarantees a target bobweight +/-2% that reduces balancing time.

Specs:

Application: Chev SB 305/350 C.I.D

Rod Length: 5.700"

Max HP: 1500

Rear Main Seal Style:2-piece

Engine Stroke (in):3.480 in.

Crankshaft Material:Forged 4340 steel

Engine Balance:Internal

Lightened:No

Requires Narrow Bearings:No

Rod Bearings Included:No

Main Bearings Included:No

Rod Journal Diameter (in):2.100 in.

Main Journal Diameter (in):2.448 in.

Balancer Bolt Thread Size:7/16-20 in.

Crankshaft Snout Style:Standard

Quantity:Sold individually.
