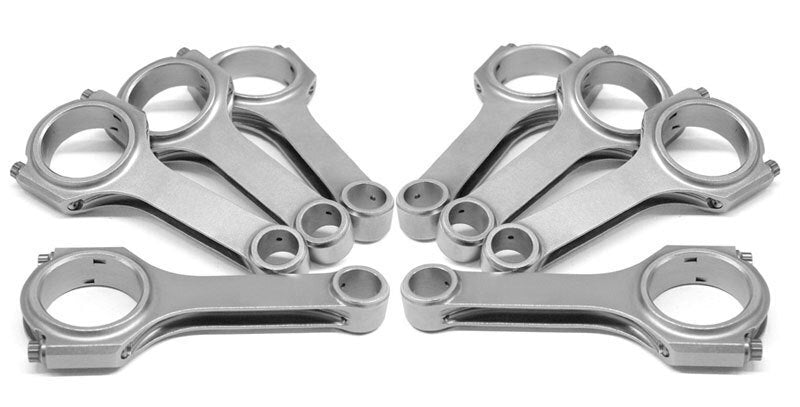

Ford 289W & 302W Boss Forged H-Beam Conrod Set 5.155" Length
Product Information
The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts
Standard length rod for 289W, Boss 302W
Rod Specification
Bolt Type: 7/16" ARP 8740
Pin Fit: Bushed
Maximum HP: 750
Rod Length: 5.155"
Rod Journal: 2.123"
Pin Size: .912"
