Forged H-Beam Conrods 5.394" Long .827" Pin Honda B18/B20B/Z
Product Information

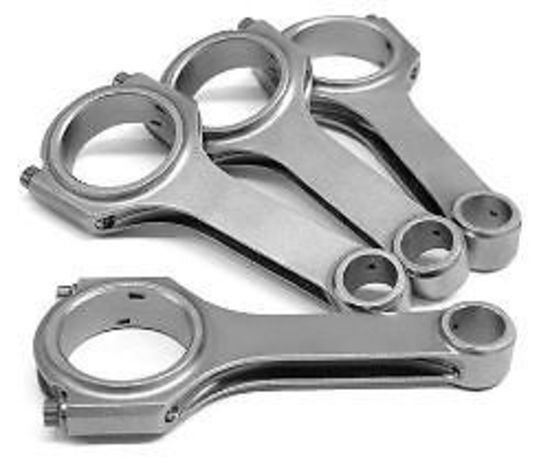

EAGLE FORGED H-BEAM CONRODS 5.394" LONG .827" PIN HONDA B18/B20B/Z EACRS5394A3D
The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations.
Specs:
Application: Honda B18 & B20B/Z Non V-TEC (See Notes)
Bolt Type: 3/8" ARP 2000
Pin Fi Bushed
Maximum HP: 900
Rod Length: 5.394"
Rod Journal: 1.771"
Pin Size: .827"
Quantity: 4
Notes: Standard length rod for B18A, B18B, B20B, B20Z. Older design used 5/16" bolt (3/8" head) - torque was 28 ftlbs with moly lube.
