Forged H-Beam Conrods 5.565" Long .927" Pin Chev SB 400
Product Information

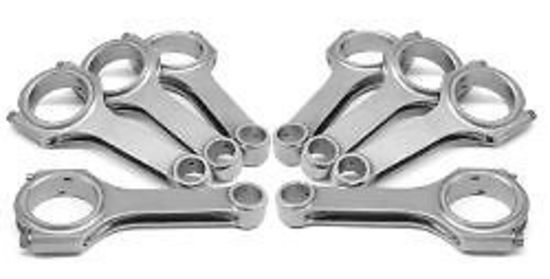

The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations.
- Application: Chevrolet Small Block 400 C.I.D
- Connecting Rod Length Center to Center (in):5.565 in.
- Connecting Rod Beam Style:H-beam
- Connecting Rod Material:Forged 4340 steel
- Connecting Rod Finish:Shot-peened
- Wrist Pin Style:Floating
- Clearanced for Stroker:No
- Cap Retention Style:Cap screw
- Connecting Rod Bolt Brand:ARP
- Connecting Rod Bolt Diameter:7/16 in.
- Connecting Rod Bolt Material:8740 chromoly steel
- Fastener Yield Strength (psi):160,000 psi
- Connecting Rod Bolt Head Style:12-point
- Approximate Connecting Rod Weight (g):635
- Rod Journal Diameter (in):2.100 in.
- Big End Bore Diameter (in):2.2250 in.
- Pin End Bore Diameter:0.927 in.
- Advertised Horsepower Rating (hp):750 hp
- Advertised RPM Rating:7,500 rpm
- Weight Matched SeYes
- Remanufactured:No
- Magnafluxed:Yes
- Quantity:Sold as a set of 8.
