Chev Small Block Lightweight 6.000" Conrods
Product Information

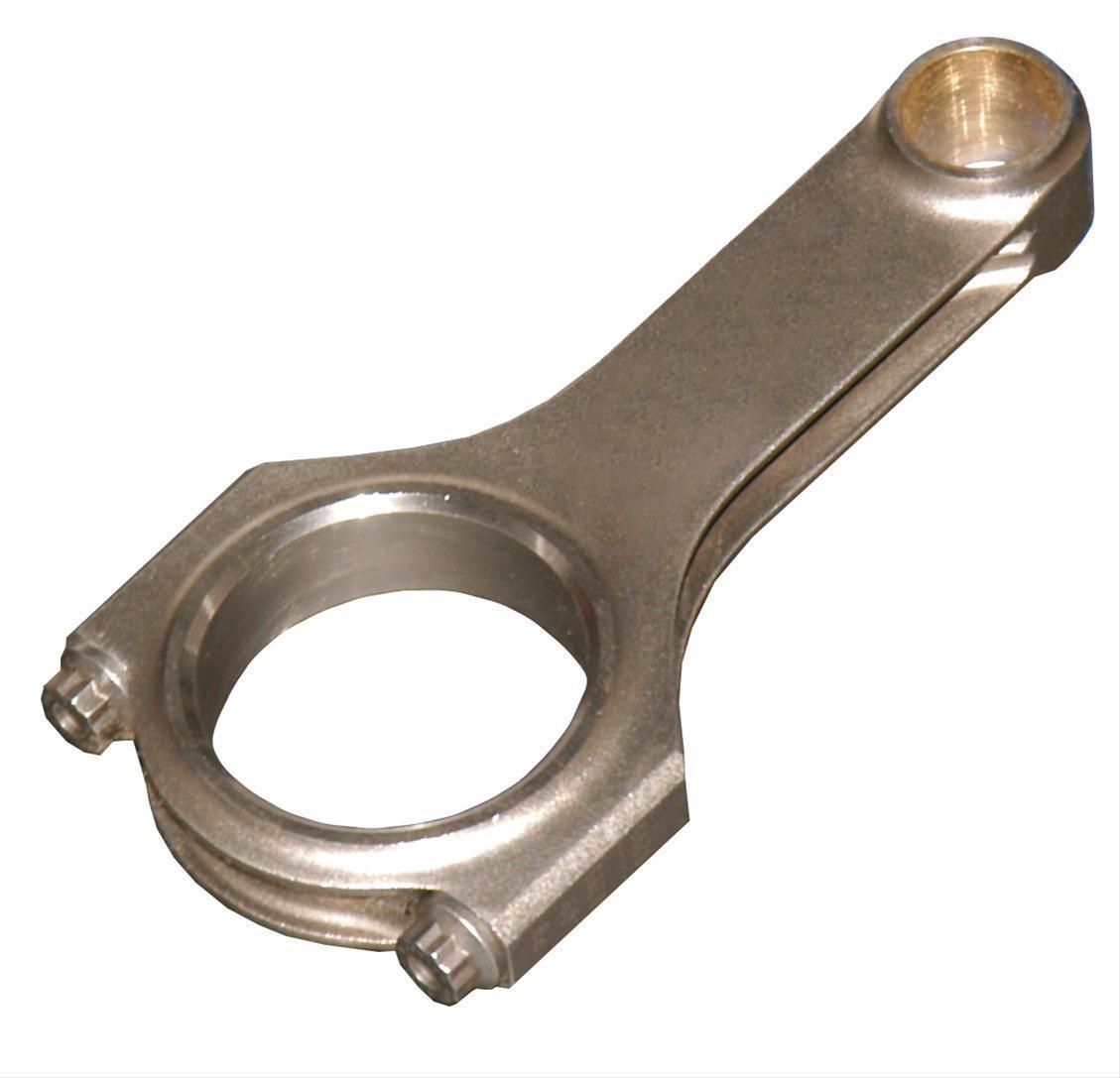

Eagle EACRS6000BLW Chev Small Block Lightweight 6.000" ConrodsEagle now offers their CRS H-beam connecting rods in a Featherweight series. Their lighter weight design provides less rotating mass for flawless high-rpm performance. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides superb strength at a fraction of the weight of most other rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal. The rods have a stout cap screw attachment with precision cap alignment sleeves to positively locate each rod cap. They come with 220,000 psi rated ARP 2000 cap screw rod bolts, instructions, and rod bolt lubrication.Connecting Rod Length Center to Center (in):6.000 in.
Connecting Rod Beam Style:H-beam
Connecting Rod Material:Forged 4340 steel
Connecting Rod Finish:Shot-peened
Wrist Pin Style:Floating
Clearanced for Stroker:No
Cap Retention Style:Cap screw
Connecting Rod Bolt Brand:ARP
Connecting Rod Bolt Diameter:3/8 in.
Connecting Rod Bolt Material:ARP2000 alloy
Fastener Yield Strength (psi):200,000 psi
Connecting Rod Bolt Head Style:12-point
Approximate Connecting Rod Weight (g):545
Rod Journal Diameter (in):2.100 in.
Big End Bore Diameter (in):2.2250 in.
Pin End Bore Diameter:0.927 in.
Big End Width (in):0.940 in.
Pin End Width (in):1.060 in.
Advertised Horsepower Rating:600 hp
Weight Matched SeYes
Remanufactured:No
Magnafluxed:Yes
Quantity:Sold as a set of 8.
