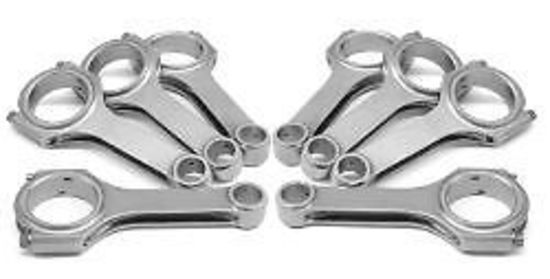

Conrods 6.000" Long .927" Pin Chev SB 4" Stroke Clearanced

EAGLE CONRODS 6.000" LONG .927" PIN CHEV SB 4" STROKE CLEARANCED EACRS6000BST

Using the state-of-the-art Sunnen Krossgrinding system, Eagle has created these maximum stroke H-beam connecting rods. This new process is designed to hold extremely tight tolerances, making for better quality connecting rods. The Eagle maximum stroke H-beam connecting rods are packaged in weight-matched sets and have been sonic-tested and magnafluxed to ensure quality. They feature 2-piece forging for increased strength, and precision alignment sleeves to precisely locate the rod cap.

Specs:

Application: Chev Small Block Gen I Large Journal

Connecting Rod Length Center to Center (in):6.000 in.

Connecting Rod Beam Style:H-beam

Connecting Rod Material:Forged 4340 steel

Connecting Rod Finish:Shot-peened

Wrist Pin Style:Floating

Clearanced for Stroker:No

Cap Retention Style:Cap screw

Connecting Rod Bolt Brand:ARP

Connecting Rod Bolt Diameter:7/16 in.

Connecting Rod Bolt Material:8740 chromoly steel

Fastener Yield Strength (psi):160,000 psi

Connecting Rod Bolt Head Style:12-point

Approximate Connecting Rod Weight (g):645

Rod Journal Diameter (in):2.100 in.

Big End Bore Diameter (in):2.2250 in.

Pin End Bore Diameter:0.927 in.

Advertised Horsepower Rating (hp):700 hp

Advertised RPM Rating:7,500 rpm

Weight Matched SeYes

Remanufactured:No

Magnafluxed:Yes

Quantity:Sold as a set of 8.

Notes:Custom pistons required when using longer-than-stock connecting rods.
