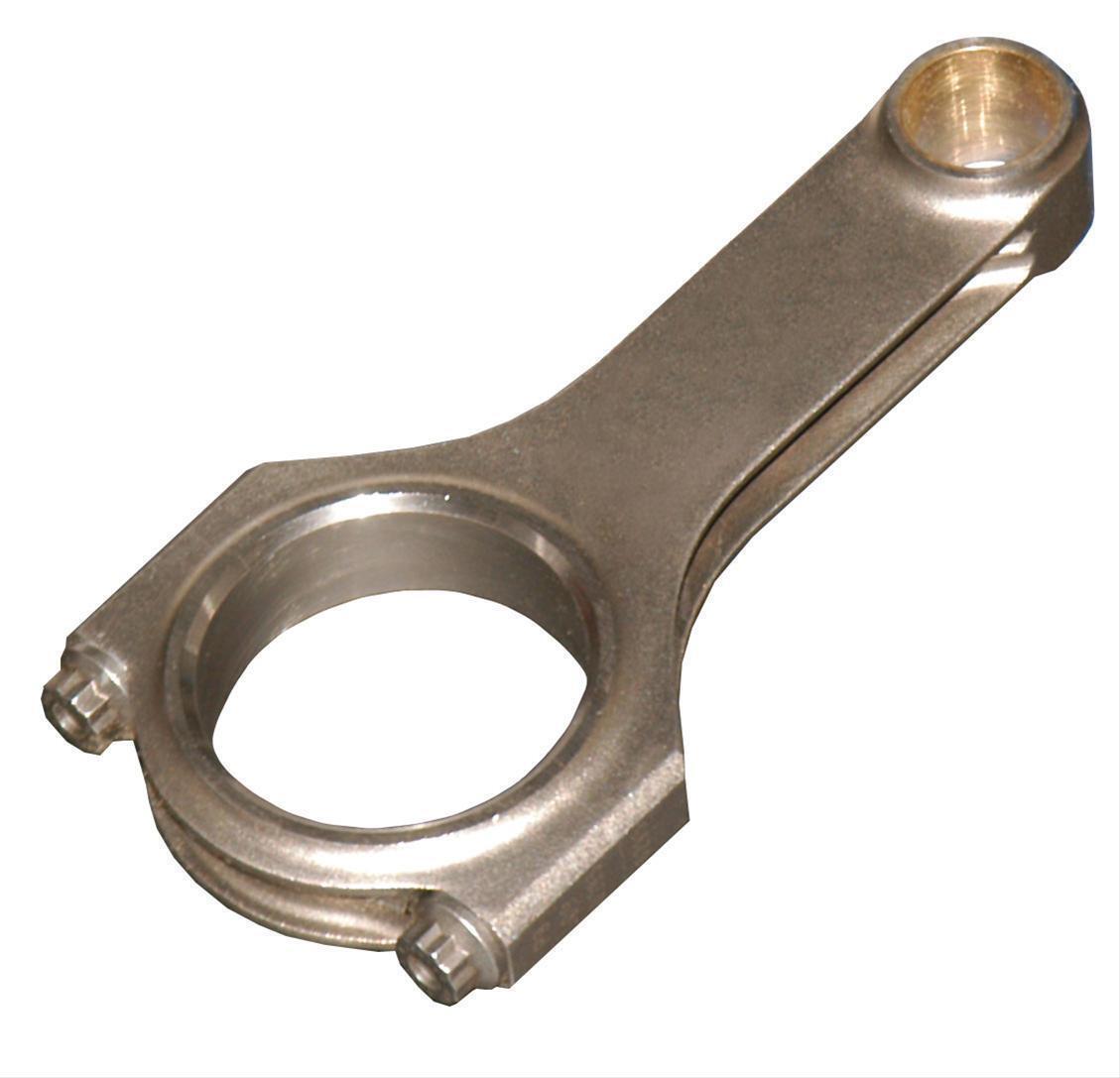

Eacrs6125O3D2000 Chev Small Block LS1 H-Beam Conrods - Connecting Rods
Product Information
Eagle EACRS6125O3D2000 Chev Small Block LS1 H-Beam Conrods - Connecting RodsFree your engine's horsepower on the wings of Eagle H-beam connecting rods. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models, and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts, or 265,000 psi rated ARP L-19 bolts as upgrades. Instructions and rod bolt lubrication are included.Connecting Rod Length Center to Center (in):6.125 in.
Connecting Rod Beam Style:H-beam
Connecting Rod Material:Forged 4340 steel
Connecting Rod Finish:Shot-peened
Wrist Pin Style:Floating
Clearanced for Stroker:No
Cap Retention Style:Cap screw
Connecting Rod Bolt Brand:ARP
Connecting Rod Bolt Diameter:7/16 in.
Connecting Rod Bolt Material:ARP2000 alloy
Fastener Yield Strength (psi):200,000 psi
Connecting Rod Bolt Head Style:12-point
Approximate Connecting Rod Weight (g):620
Rod Journal Diameter (in):2.100 in.
Big End Bore Diameter (in):2.2250 in.
Pin End Bore Diameter:0.927 in.
Advertised Horsepower Rating:1,300 hp
Advertised RPM Rating:7,500 rpm
Weight Matched SeYes
Remanufactured:No
Magnafluxed:Yes
Quantity:Sold as a set of 8.
Notes:Designed for racing use only. Custom pistons required when using connecting rods with custom wrist pin diameter and longer than stock length.
