Forged H-Beam Conrods 6.135" Long .990" Pin Chev Big Block
Product Information
EAGLE FORGED H-BEAM CONRODS 6.135" LONG .990" PIN CHEV BIG BLOCK EACRS61353D

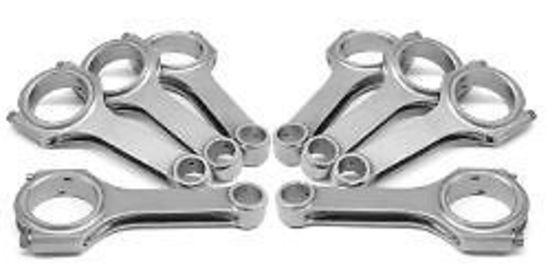

The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations.
Specs:
Application: Chevrolet Big Block Mark IV, Gen V, VI 396-454 C.I.D
Connecting Rod Length Center to Center (in):6.135 in.
Connecting Rod Beam Style:H-beam
Connecting Rod Material:Forged 4340 steel
Connecting Rod Finish:Shot-peened
Wrist Pin Style:Floating
Clearanced for Stroker:No
Cap Retention Style:Cap screw
Connecting Rod Bolt Brand:ARP
Connecting Rod Bolt Diameter:7/16 in.
Connecting Rod Bolt Material:8740 chromoly steel
Fastener Yield Strength (psi):160,000 psi
Connecting Rod Bolt Head Style:12-point
Approximate Connecting Rod Weight (g):780
Rod Journal Diameter (in):2.200 in.
Big End Bore Diameter (in):2.3250 in.
Pin End Bore Diameter:0.990 in.
Advertised Horsepower Rating (hp):700 hp
Advertised RPM Rating:7,500 rpm
Weight Matched SeNo
Remanufactured:No
Magnafluxed:Yes
Quantity:Sold as a set of 8
