Forged H-Beam Conrods 6.250" Long .927" Pin Chev SB Large Jnl

EAGLE FORGED H-BEAM CONRODS 6.250" LONG .927" PIN CHEV SB LARGE JNL EACRS6250B3D

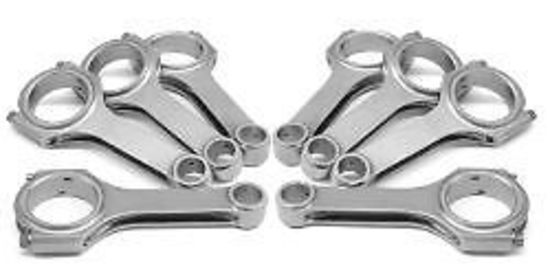

The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations.

Specs:

Application: Chevrolet Small Block Gen I, Large Journal

Connecting Rod Length Center to Center (in):6.250 in.

Connecting Rod Beam Style:H-beam

Connecting Rod Material:Forged 4340 steel

Connecting Rod Finish:Shot-peened

Wrist Pin Style:Floating

Clearanced for Stroker:No

Cap Retention Style:Cap screw

Connecting Rod Bolt Brand:ARP

Connecting Rod Bolt Diameter:7/16 in.

Connecting Rod Bolt Material:8740 chromoly steel

Fastener Yield Strength (psi):160,000 psi

Connecting Rod Bolt Head Style:12-point

Approximate Connecting Rod Weight (g):665

Rod Journal Diameter (in):2.100 in.

Big End Bore Diameter (in):2.2250 in.

Pin End Bore Diameter:0.927 in.

Advertised Horsepower Rating (hp):750 hp

Advertised RPM Rating:7,500 rpm

Weight Matched SeYes

Remanufactured:No

Magnafluxed:Yes

Quantity:Sold as a set of 8.

Notes:Custom pistons required when using longer than stock connecting rods.
