Forged H-Beam Conrods 7.100" Long .990" Pin Chev Big Block
Product Information

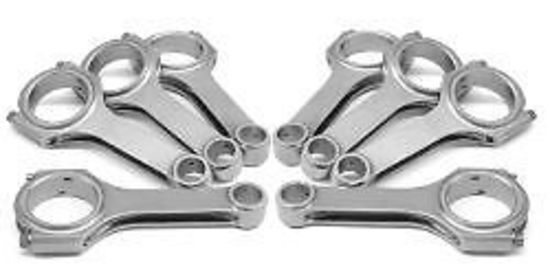

EAGLE FORGED H-BEAM CONRODS 7.100" LONG .990" PIN CHEV BIG BLOCK EACRS7100C3D
The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations.
Specs:
Application: Chev big block Mark IV, Gen V, Gen IV
Connecting Rod Length Center to Center (in):7.100 in.
Connecting Rod Beam Style:H-beam
Connecting Rod Material:Forged 4340 steel
Connecting Rod Finish:Shot-peened
Wrist Pin Style:Floating
Clearanced for Stroker:No
Cap Retention Style:Cap screw
Connecting Rod Bolt Brand:ARP
Connecting Rod Bolt Diameter:7/16 in.
Connecting Rod Bolt Material:8740 chromoly steel
Fastener Yield Strength (psi):160,000 psi
Connecting Rod Bolt Head Style:12-point
Approximate Connecting Rod Weight (g):840
Big End Bore Diameter (in):2.2200 in.
Pin End Bore Diameter:0.990 in.
Advertised Horsepower Rating (hp):750 hp
Advertised RPM Rating:7,500 rpm
Weight Matched SeYes
Remanufactured:No
Magnafluxed:Yes
Quantity:Sold as a set of 8.
