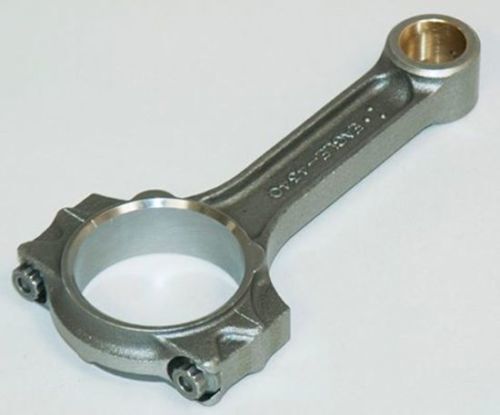

I-Beam Connecting Rod Set 6.125" Gm LS1 LS2 LS3 LS6 LS7

Product Information

Forged from SAE/AISI certified 4340 steel, Eagle's ''FSI'' I-Beam rods offer a high-strength, lower cost alternative to their H-Beam rods. Eagle ''FSI'' I-Beam rods are equipped with 7/16'' ARP 2000 bolts and silicon-bronze bushings for performance and racing applications. Big end sizing is performed with Sunnen's Krossgrinding system to ensure perfect sizing. I-Beam design is lighter and less expensive than H-Beam designs.

Application: GM LS1 LS6 5.7L, LS2 6.0L, LS3 6.2L, LS7 7.0L

Connecting Rod Length Center to Center (in): 6.125 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Cap screw
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: ARP2000
Fastener Yield Strength (psi): 180,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 624
Rod Journal Diameter (in): 2.100 in.
Big End Bore Diameter (in): 2.2250 in.
Pin End Bore Diameter: 0.927 in.
Big End Width (in): 0.940 in.
Pin End Width (in): 1.000 in.
Advertised Horsepower Rating: 1000 hp
Quantity: Sold as a set of 8.
