ED36032 - Fuel Pump, Electric, External, Universal EFI Sump, 67 gph, 35-90 psi, Supports up to 600 hp

ED36032 - Fuel Pump, Electric, External, Universal EFI Sump, 67 gph, 35-90 psi, Supports up to 600 hp

UPC: 085347360321

Fuel Pump Included: Yes

Flow Rate: 67gph / 255lph

Maximum Pressure (psi): 90 psi

Inlet Attachment: Female O-ring

Fuel Pump Inlet Size: -6 AN

Inlet Quantity: One

Outlet Attachment: Female O-ring

Fuel Pump Outlet Size: -6AN

Outlet Quantity: One

Sending Unit Included: No

Fuel Pressure Regulator Included: Yes

Mounting Bracket Included: Yes

Mounting Hardware Included: Yes

Wiring Harness Included: Yes

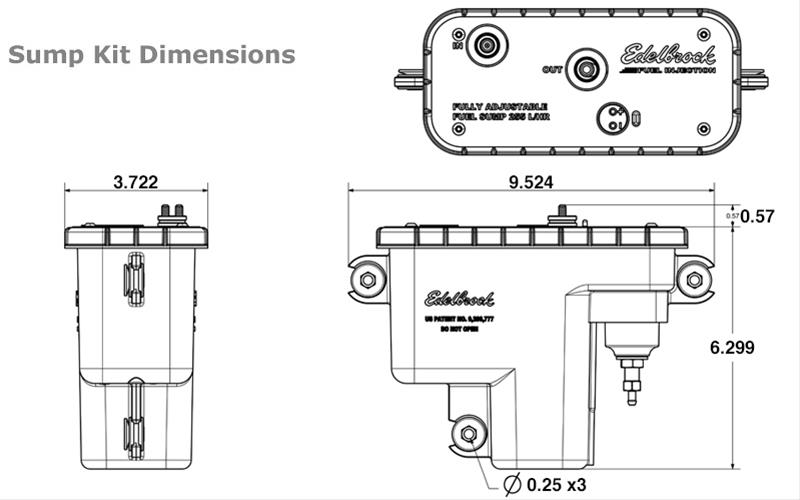

Length: 9.000 in.

Width: 3.750 in.

Height: 10.000 in.

Quantity: Sold Individually

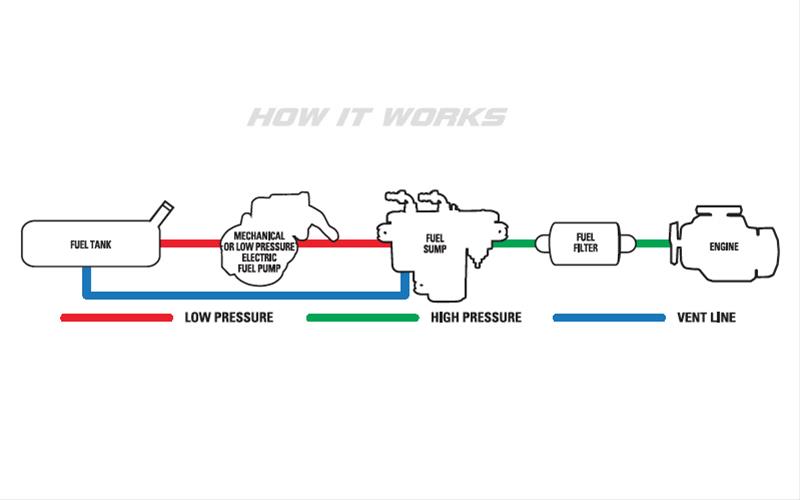

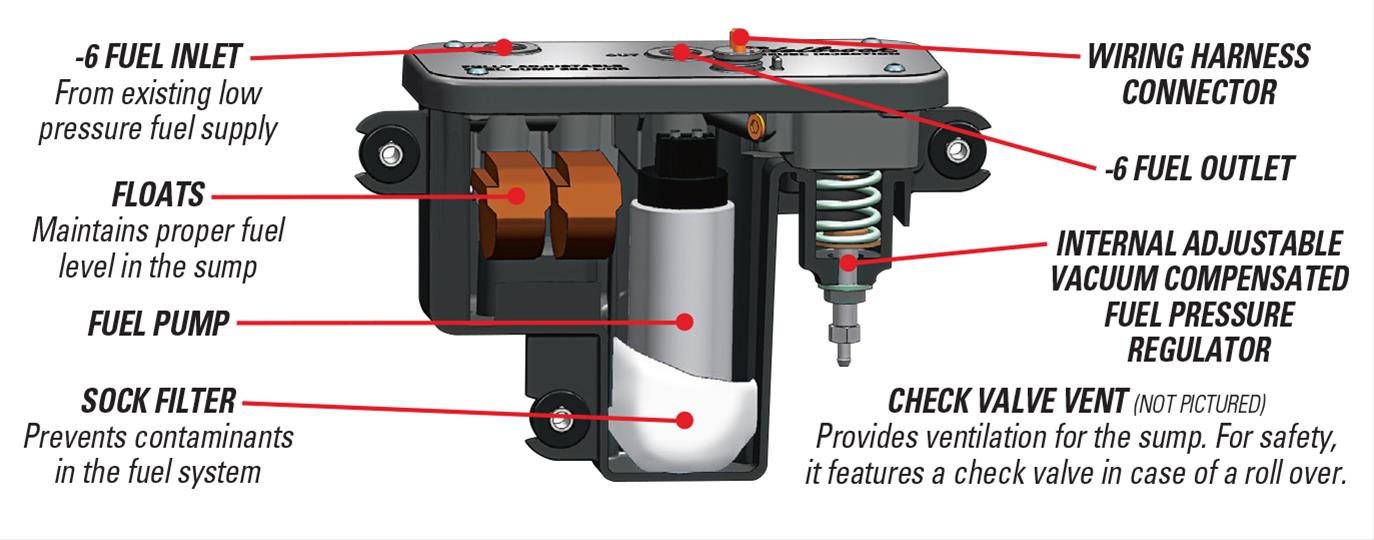

Edelbrock universal EFI sump fuel systems are designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped wit an existing low-pressure carbureted fuel system. They're complete self-contained systems that can be easily installed under the hood. The unique design of these systems allows them to deliver constant fuel pressure with no fuel return line or external fuel pressure regulator. They are compatible with the existing factory fuel tank and pump.

These units are ideal for use with various aftermarket EFI systems and with many popular engine swap applications that require constant 35 to 90 psi fuel pressure. The systems feature a new compact design that's adjustable from 35 to 90 psi and include a vacuum reference port. These 67 lph pumps are a great solution when used with an Edelbrock Pro-Flo 4 or 4+, or other aftermarket EFI system.

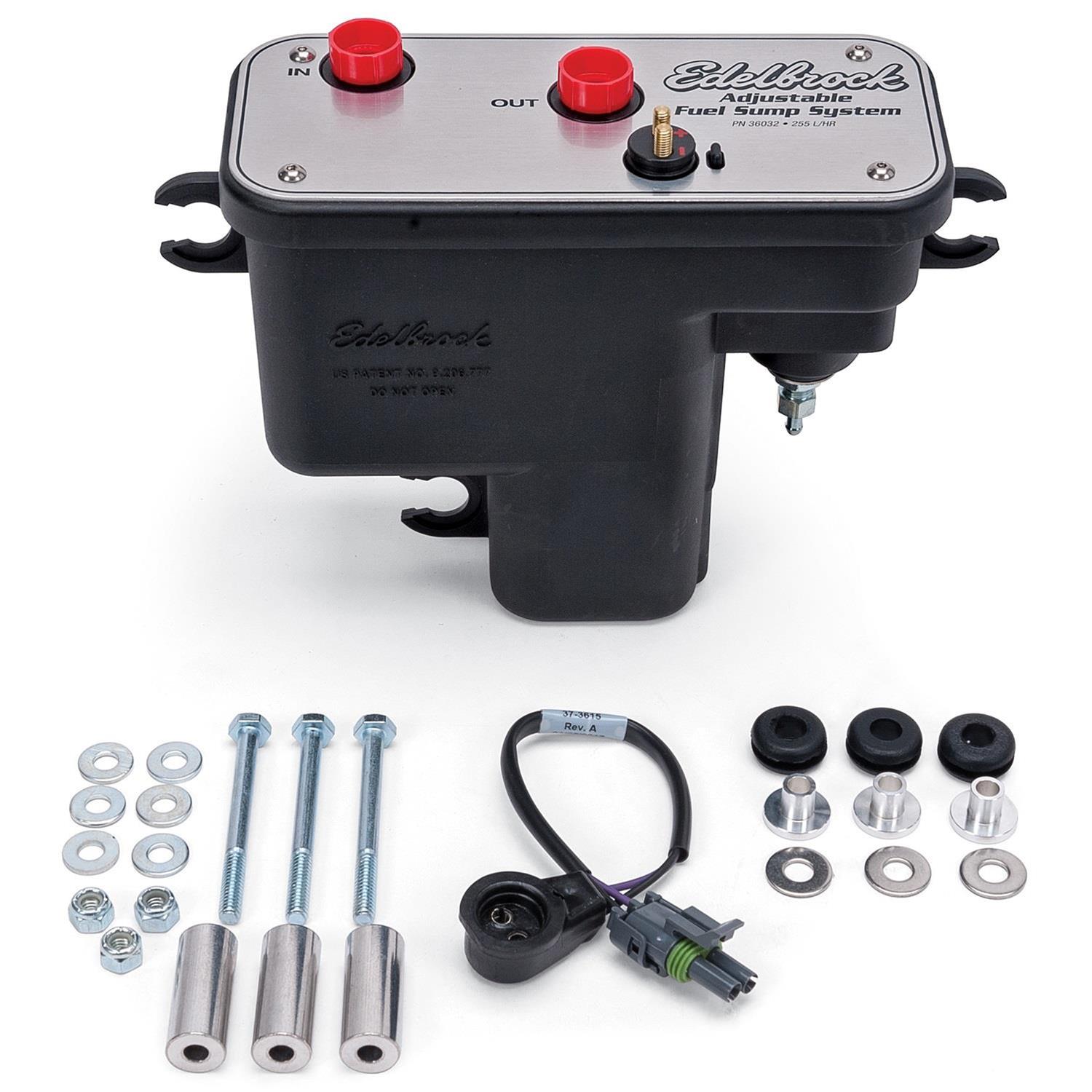

Edelbrock universal EFI sump fuel systems are also available in a kit. Each complete kit includes a wiring harness, universal mounting brackets, hose, fittings and all of the necessary hardware for installation.
