Edelbrock 35930 Ford 302 Windsor Pro-Flo 4 EFI System (450HP)

Product Information

Edelbrock Pro-Flo 4 EFI Systems

Edelbrock Pro-Flo 4 EFI systems provide you with a high performance traditional-style intake and 4150-style throttle body. Unlike regular throttle body EFI systems, Pro-Flo 4 features the fuel rails and individual injectors for each cylinder mounted on the manifold. This Edelbrock design produces the best fuel atomization and distribution for the ultimate performance, as well as delivering the most control and the most efficient way to deliver fuel to your engine. Along with innovative design, Pro-Flo 4 systems have the latest technology with an all-new ECU, and even more features for advanced tuning, with the key being their exclusive E-Tuner app with base calibrations developed on their dyno.

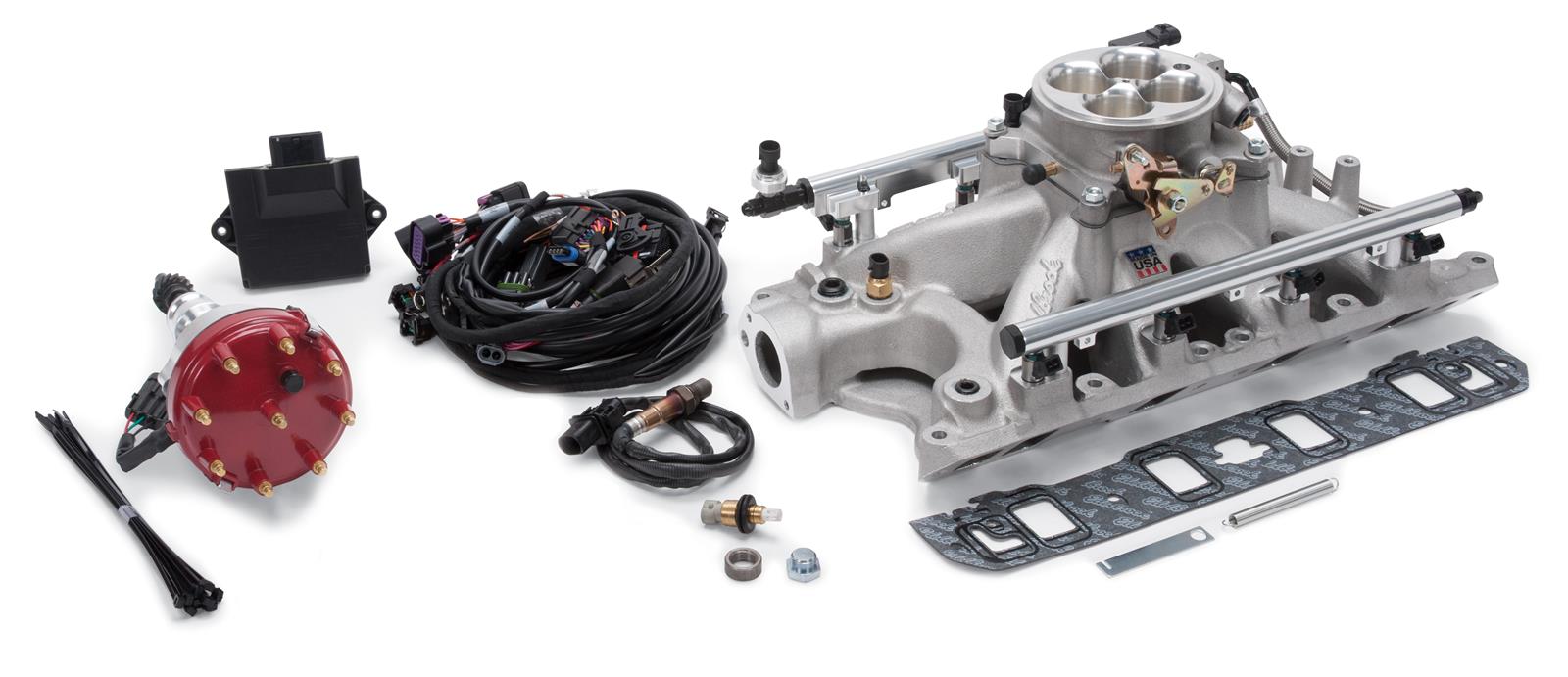

Edelbrock Pro-Flo 4 EFI systems include and feature:

* Engine Control Unit with faster processor and upgraded Bluetooth chip in a thinner waterproof design
* Fully assembled intake manifold with air valve, fuel rails, and injectors
* Fully assembled OEM high-quality wiring harness with pre-terminated connectors and labeled connection for a simplified installation
* E-Tuner application for setup and engine monitoring
* Wideband oxygen sensor
* Distributor (not included with LS kits)
* Gaskets and hardware
* Installation instructions
* Ready to run out of the box with pre-loaded calibrations
* Self-learning technology--no tuning experience or laptop tuning required
* Ignition control--adjust ignition curve with the E-Tuner 4 App for optimal performance and mpg
* Offered with multiple fuel injector choices
* Now boost compatible up to 15 psi by switching to a 2-bar MAP sensor and downloading the new firmware update from Edelbrock for free! It is recommended to regularly check for firmware updates even if not utilizing boost control.
* Systems automatically compensate for altitude and weather changes
* E-Tuner 4 app with Bluetooth connectivity between ECU and Android phone or tablet. Includes multiple dash display configurations for monitoring engine vitals and performance; multiple control functions including two adjustable cooling fan outputs, idle speed, AFR set points, acceleration fuel tuning, ignition control, cold start fuel, and cranking fuel.

Specifications:

• Fuel Injection Style: Multi-port
• Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
• Maximum Horsepower with Gas: 450
• Timing Control Compatible: Yes
• Power Adder Compatible: Yes
• ECM Included: Yes
• Self Tuning: Yes
• User Tunable: Yes
• Fuel Pump Included: No
• EGR: No
• Transmission Controller Included: No
• Metering Style: Speed density
• Intake Manifold Included: Yes
• Intake Section Included: Complete
• Intake Material: Aluminum
• Intake Color: Natural
• Engine Block Deck Height: Standard deck
• Multi-Port Fuel Rails Included: Yes
• Throttle Body Included: Yes
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Quantity: 4
• Venturi Diameter (mm): 44.45mm
• Airflow Rate (cfm): 1,000 cfm
• Throttle Body Material: Aluminum
• Throttle Body Finish: Natural
• Injectors Included: Yes
• Injector Size (lbs/hr): 29 lbs./hr.
• Calibration Module Included: No
• Wiring Harness Included: Yes
• Oxygen Sensor Included: Yes
• Fuel Pressure Regulator Included: No
• Distributor Included: Yes
• MAP Sensor Included: Yes
• IAT Sensor Included: Yes
• TPS Sensor Included: Yes
• IAC Motor Included: Yes
• Quantity: Sold as a kit.
• Notes: Boosted engines require a 2-bar MAP sensor. The distributor gear is compatible with iron flat tappet camshafts and austempered iron hydraulic roller camshafts. Not for use with factory steel hydraulic roller cams. Factory steel hydraulic roller camshafts will need to use the EDL-22735 distributor gear. The E-Tuner 4 app communicates wireless via Bluetooth and is available for IOS or Android platforms.
