Edelbrock 1571 E-Force Supercharger for 2014-19 Corvette Stingray LT1 - Stage 1

1571 E-Force Supercharger for 2014-19 Corvette Stingray LT1 - Stage 1

Skip to product information
1 of 1
Edelbrock Part No. ED1571
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:ED1571

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

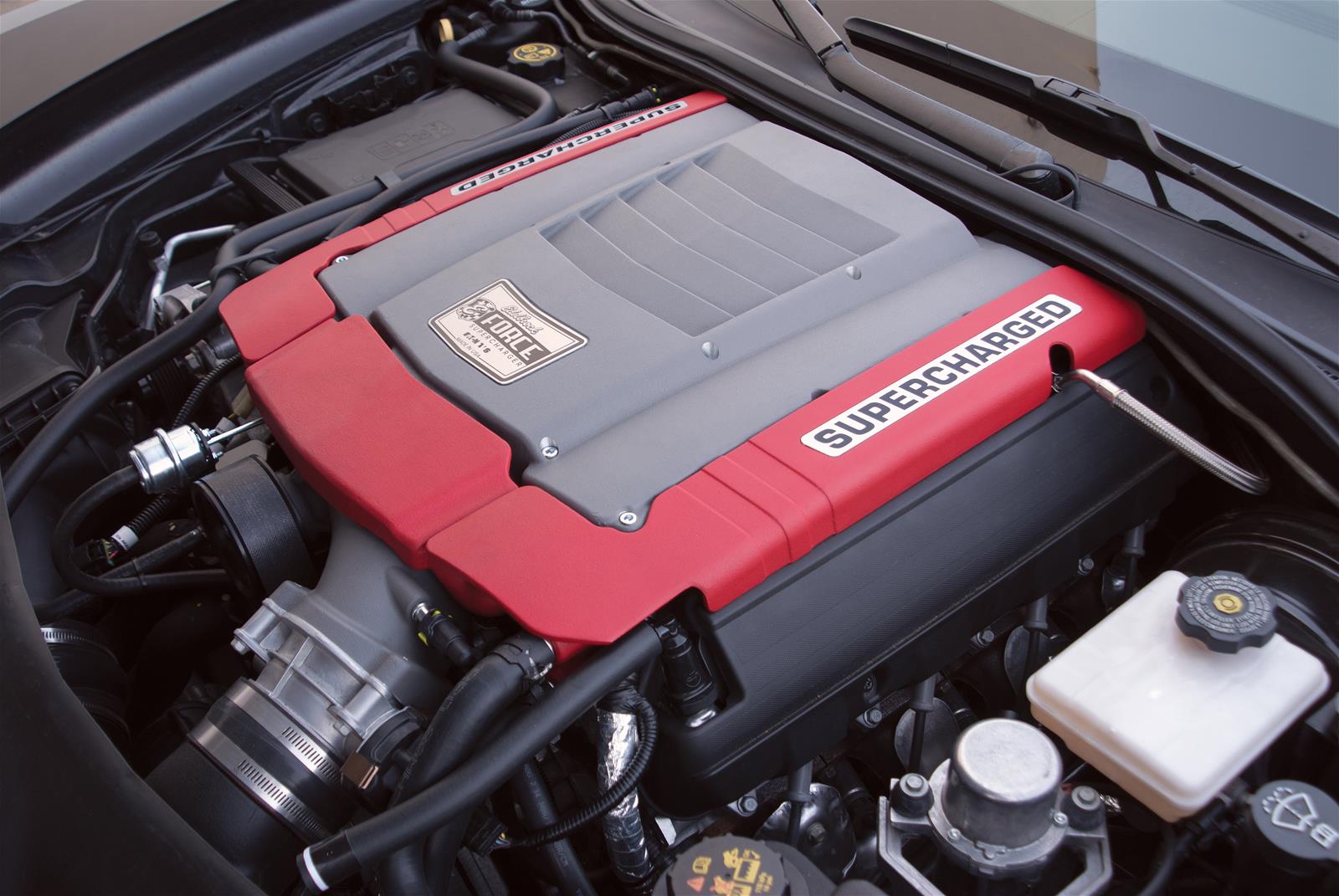

The Edelbrock supercharger Stage 1 Street System part #1571 for 2014-19 Corvette Stingray increases the performance of your LT1 engine to 624 horsepower and 600 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1571 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Product Information

The Edelbrock supercharger Stage 1 Street System part #1571 for 2014-19 Corvette Stingray increases the performance of your LT1 engine to 624 horsepower and 600 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1571 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Edelbrock
MPN
Not provided
UPC
085347015719
Our Part Number
ED1571
Vehicle Model: Corvette
Gasket Or Seal Included: Yes
Hose Included: Yes
Outside Pulley Diameter: 3.5
Mounting Bracket Included: Yes
Housing Material: Cast Aluminum
Rotor Type: Eaton TVS 2300
Internal Step Up: Yes
Maximum Boost Pressure: 5.5
Quantity: Kit
Maximum Torque: 600
Universal Or Specific Fit: Specific
Maximum Horsepower: 624
Mounting Hardware Included: Yes
Center Housing Cooling Type: Intercooler
System Type: Stage 1 - Street System
Tensioner Included: Yes
Pulley Belt Width: 10-Rib
Finish: Black Powder Coated
Maximum Pressure Reading: 5.5
Oil Capacity: 150
Harmonic Balancer Diameter: 7.5
Calibration: Yes
Air Filter Included: Yes
