Edelbrock 1572 E-Force Supercharger for 2006-13 Corvette Z06 LS7

1572 E-Force Supercharger for 2006-13 Corvette Z06 LS7

Skip to product information
1 of 1
Edelbrock Part No. ED1572
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:ED1572

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

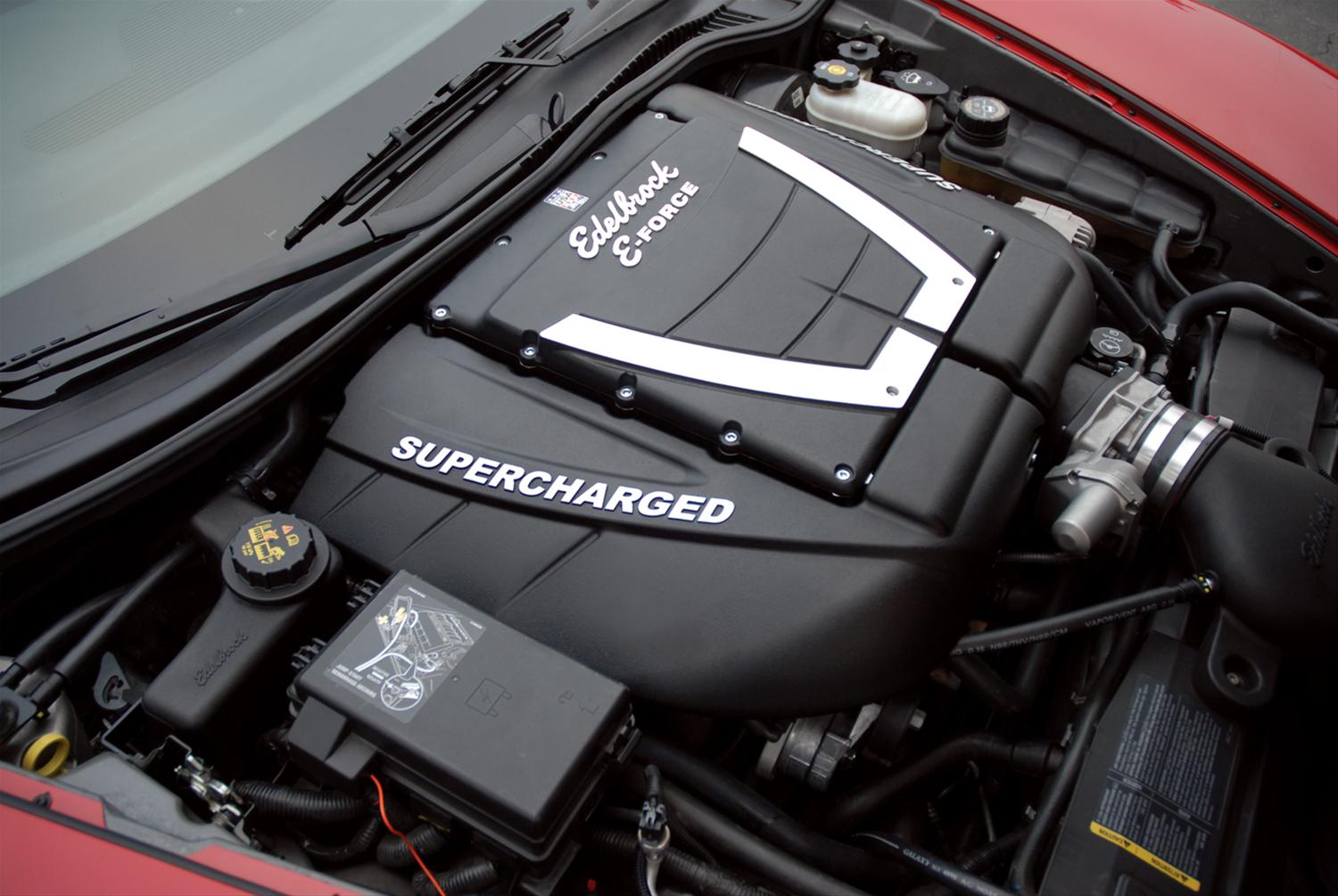

The Edelbrock supercharger Stage 1 Street System part #1572 for 2006-13 Corvette ZO6 with Dry sump increases the performance of your LS7 engine to 657 horsepower and 582 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1572 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Product Information

The Edelbrock supercharger Stage 1 Street System part #1572 for 2006-13 Corvette ZO6 with Dry sump increases the performance of your LS7 engine to 657 horsepower and 582 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1572 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Edelbrock
MPN
Not provided
UPC
085347015726
Our Part Number
ED1572
Center Housing Cooling Type: Intercooler
Pulley Belt Width: 6-Rib
Finish: Black Powder Coated
Outside Pulley Diameter: 3.25
System Type: Stage 1 - Street System
Tensioner Included: Yes
Calibration: Yes
Internal Step Up: Yes
Fuel Injector Type: 60
Air Filter Included: Yes
Gasket Or Seal Included: Yes
Vehicle Model: Corvette
Housing Material: Cast Aluminum
Hose Included: Yes
Maximum Torque: 582
Universal Or Specific Fit: Specific
Rotor Type: Eaton TVS 2300
Maximum Boost Pressure: 5.5
Maximum Horsepower: 657
Quantity: Kit
Mounting Bracket Included: Yes
Maximum Pressure Reading: 5.5
Oil Capacity: 150
Harmonic Balancer Diameter: 7.5
Mounting Hardware Included: Yes
Fitment
