Edelbrock 1593 E-Force Supercharger for 2005-07 Corvette LS2 - Stage 1

1593 E-Force Supercharger for 2005-07 Corvette LS2 - Stage 1

Skip to product information
1 of 1
Edelbrock Part No. ED1593
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:ED1593

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

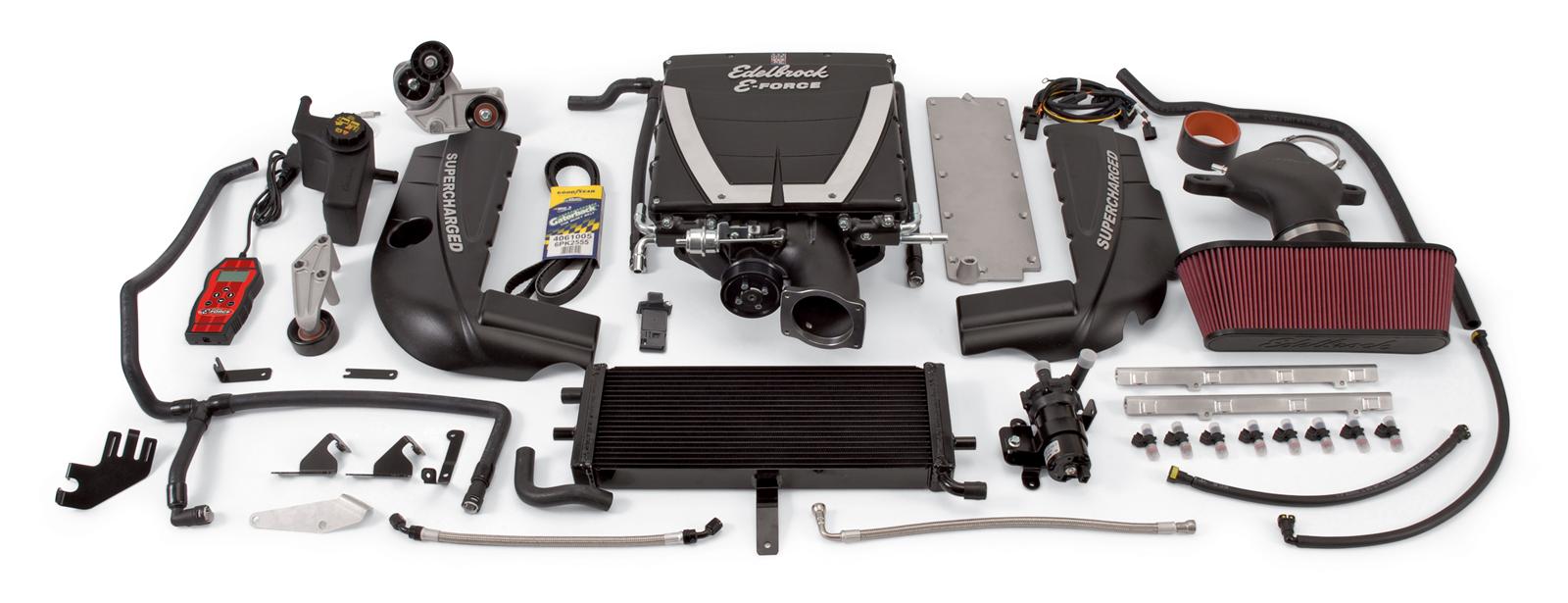

The Edelbrock supercharger Stage 1 Street system part #1593 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 554 horsepower and 515 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1593 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Product Information

The Edelbrock supercharger Stage 1 Street system part #1593 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 554 horsepower and 515 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1593 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Edelbrock
MPN
Not provided
UPC
085347015931
Our Part Number
ED1593
Air Filter Included: Yes
Internal Step Up: Yes
Quantity: Kit
Maximum Torque: 515
Maximum Horsepower: 554
Gasket Or Seal Included: Yes
Mounting Bracket Included: Yes
Maximum Pressure Reading: 5.5
Universal Or Specific Fit: Specific
Harmonic Balancer Diameter: 7.5
Mounting Hardware Included: Yes
Rotor Type: Eaton TVS 2300
Pulley Belt Width: 6-Rib
Vehicle Model: Corvette
Finish: Black Powder Coated
Housing Material: Cast Aluminum
Hose Included: Yes
Oil Capacity: 150
Maximum Boost Pressure: 5.5
Fuel Injector Type: 52
System Type: Stage 1 - Street System
Tensioner Included: Yes
Center Housing Cooling Type: Intercooler
Outside Pulley Diameter: 3.875
Calibration: Yes
