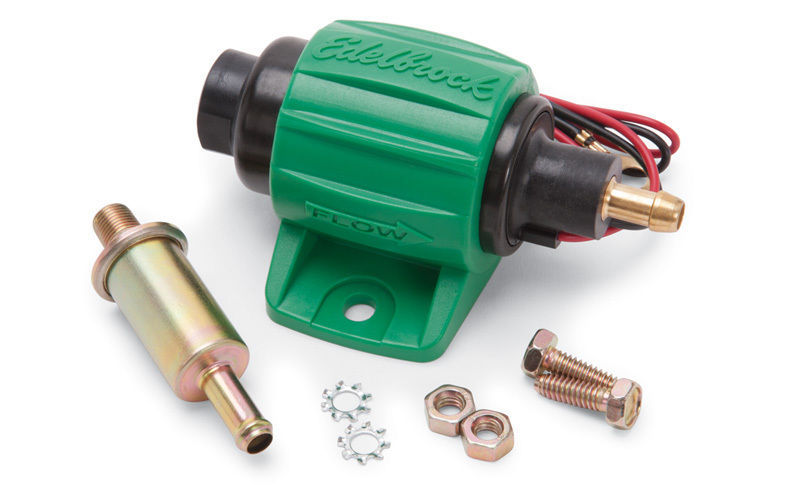

Edelbrock 17302 Universal Micro Electric Fuel Pump - 38 GPH / 144 LPH (Diesel)

17302 Universal Micro Electric Fuel Pump - 38 GPH / 144 LPH (Diesel)

1 2
Edelbrock
Edelbrock Part No. ED17302
Sale Sold out
Taxes included. Shipping calculated at checkout.

ED17302

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

Edelbrock part #17302 fuel pump is a gravity fed type pump with a simple 2 wire design. It requires approximately one amp average draw at maximum delivery and works on 12 Volt negative ground systems only. It features an in-line style rotor and vane pump design. 4-7 PSI, 38 GPH for most carbureted applications and is compatible with Diesel only. Pump has integrated 5/16 barb fittings on fuel outlet and 5/16 fitting on included fuel filter inlet.

Product Information

Edelbrock part #17302 fuel pump is a gravity fed type pump with a simple 2 wire design. It requires approximately one amp average draw at maximum delivery and works on 12 Volt negative ground systems only. It features an in-line style rotor and vane pump design. 4-7 PSI, 38 GPH for most carbureted applications and is compatible with Diesel only. Pump has integrated 5/16 barb fittings on fuel outlet and 5/16 fitting on included fuel filter inlet.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Edelbrock
MPN
Not provided
UPC
085347173020
Our Part Number
ED17302
Terminal Type: Lead Wire
Strainer Included: No
Mounting Bracket Included: Yes
Gasket Or Seal Included: No
Fuel Pump Inlet Type: Hose Barb
Minimum Pressure: 4
Mounting Hardware Included: Yes
Maximum Pressure: 7
Outlet Type: Hose Barb
Negative Ground: Yes
Pump Type: Electric
Outlet Outside Diameter: 0.312
In Tank or External: External
Pump Design: In-line Electric Fuel Pump
Outlet Quantity: 1
Internal Or External: External
Universal Or Specific Fit: Universal
Regulator Included: No
Seal And Lock Ring Included: No
Wiring Harness Included: No
Maximum Flow Rating: 144 LPH/38
Inlet Type: Hose Barb
Fuel Sending Unit Included: No
Fuel Type: Diesel
Compatible Fuel Type: Diesel
Features an easy to setup 2-wire design
Features a gravity fed in-line, self-priming and regulating design
Can also be used as a lift or transfer pump
Designed for use with automotive and industrial applications
Includes filter and all of the necessary hardware for installation
