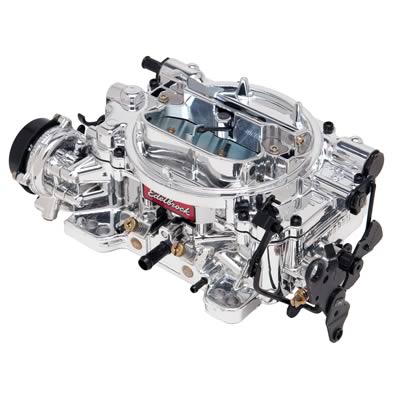

Edelbrock 181349 Reman Thunder AVS Carb #181349 800 CFM W/ Electric Choke, EnduraShine (Non-EGR)

181349 Reman Thunder AVS Carb #181349 800 CFM W/ Electric Choke, EnduraShine (Non-EGR)

Name: Edelbrock 181349 Reman Thunder AVS Carb #181349 800 CFM W/ Electric Choke, EnduraShine (Non-EGR)
Brand: Edelbrock
SKU: ED181349
Price: 1111.80 AUD
Availability: OutOfStock

1 1

Edelbrock

Edelbrock Part No. ED181349

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:ED181349

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

Product Information

Edelbrock Remanufactured Thunder Series AVS 800 cfm, Square-Flange, Electric Choke Carburetor (non-EGR)

Product Information

Edelbrock Remanufactured Thunder Series AVS 800 cfm, Square-Flange, Electric Choke Carburetor (non-EGR)

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications

Manufacturer: Edelbrock
MPN: Not provided
UPC: 085347993369
Our Part Number: ED181349

Inlet Fitting Thread Diameter: 0.625
Primary Jet Diameter: 0.113
Secondary Jet Diameter: 0.101
Maximum Flow Rating: 800
Body Material: Aluminum
Base Length: 6.25
Base Width: 5.937
Air Cleaner Flange Diameter: 5.125
Adjustable Float Level: No
EGR Port: No
Marine Approved: No
Mounting Hole Diameter: 0.355
Street Legal: No
Small Venturi Diameter: 1.630
Metering Rod Power Tip Diameter: 0.047
Mounting Hole Quantity: 8
Flange Shape: Square Bore
Float Material: Brass
Metering Rod Length: 3.15
Gasket Or Seal Included: Yes
Barrel Quantity: 4
Center Hung Floats: No
Choke Type: Electric
Spacer Included: No
Main Venturi Diameter: 1.525
Float Level: 0.437
Mounting Hardware Included: No
Body Height: 3.25
Float Drop: 1.0
Grade Type: Performance
Linkage Attached: No
Finish: EnduraShine

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

Edelbrock

Edelbrock products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.
