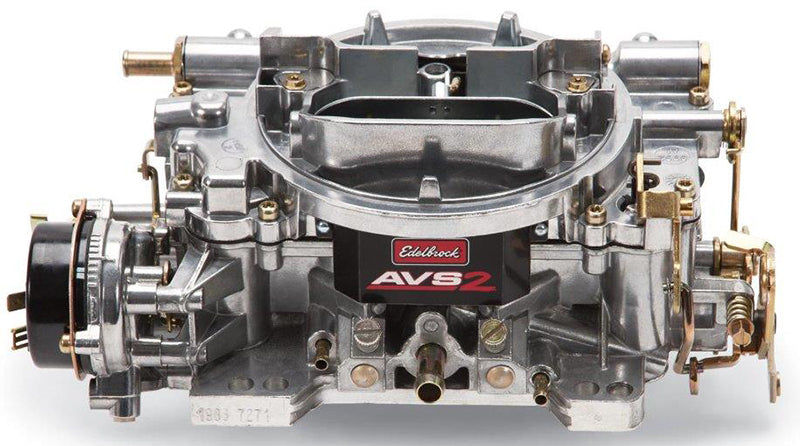

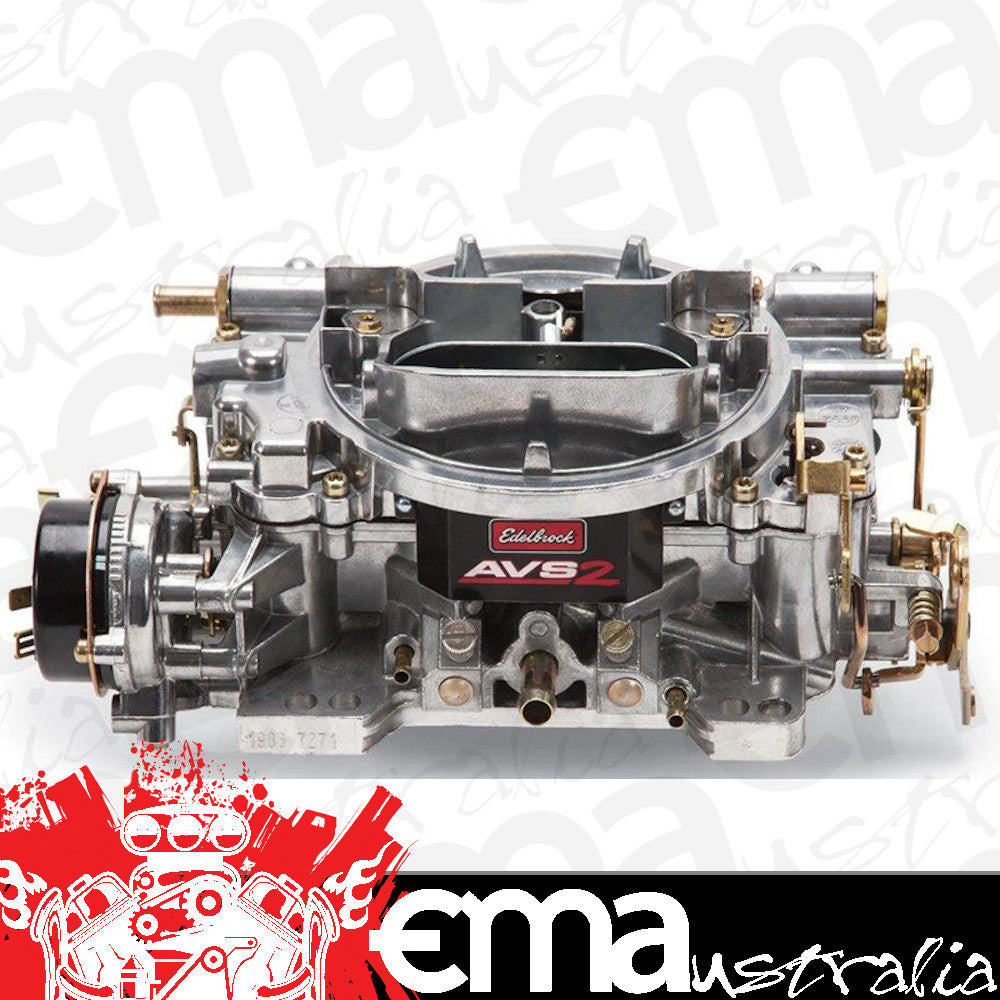

Edelbrock 1901 AVS2 Carburetor #1901 500 CFM With Electric Choke, Satin Finish (Non-EGR)

1901 AVS2 Carburetor #1901 500 CFM With Electric Choke, Satin Finish (Non-EGR)

1 2
Edelbrock
Edelbrock Part No. ED1901
$1,003.10 AUD
$1,003.10 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

ED1901

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Availability: Ships in 1-3 Business Days*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

The Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1901 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

Product Information

The Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1901 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Edelbrock
MPN
Not provided
UPC
085347019014
Our Part Number
ED1901
Condition: New
Maximum Flow Rating: 500
Flange Shape: Square
Secondary Jet Diameter: 0.095
Metering Rod Size: .070 x .052
Spring Force: 5" Hg (Orange)
Recommended Use: For Single Carb Applications
Body Height: 3.25
Bore Diameter: Primary Bore 1.44; Secondary Bore 1.6875
Primary Jet Diameter: 0.095
Series: AVS2
Material: Aluminum
Gasket Or Seal Included: Yes
Choke Type: Electric
Main Venturi Diameter: 1.19
Barrel Quantity: 4 Barrel
Booster Type: annular
EGR Port: No
Finish: Satin
