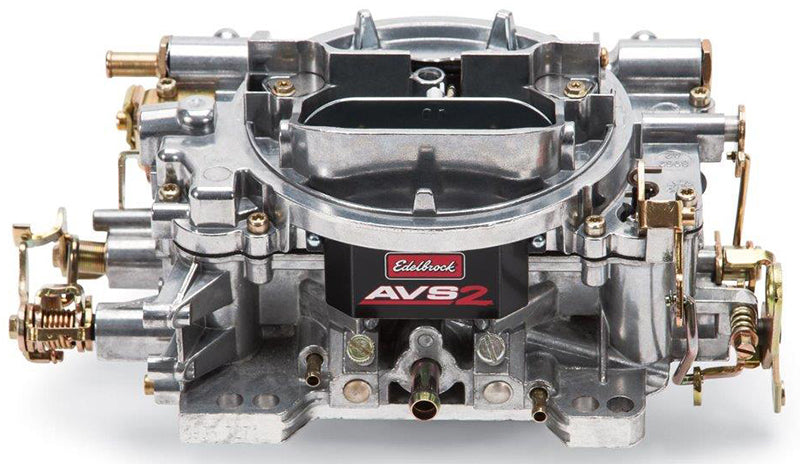

Edelbrock ED1902 500 CFM AVS2 Series Carburettor

The AVS2 Series is the next generation in Edelbrock carburetors. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular booster features eight, equally spaced orifices to improve fuel metering from idle to the main. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual- or single-plane intake manifolds. The AVS2 includes both timed and full vacuum ports for ignition advance.

500 CFM THE ULTIMATE PERFORMANCE CARBURETOR
Designed and calibrated for small cubic-inch engines and dual-quad applications such as our RPM Dual-Quad Air-Gap, Edelbrock C-26, F-28 and Street Tunnel Ram. For single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1901/#1902 are calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg).
