Edelbrock 3869 Throttle Body #3869 For Pro-Flo XT

3869 Throttle Body #3869 For Pro-Flo XT

Name: Edelbrock 3869 Throttle Body #3869 For Pro-Flo XT
Brand: Edelbrock
SKU: ED3869
Price: 765.47 AUD
Availability: OutOfStock

1 2

Edelbrock

Edelbrock Part No. ED3869

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:ED3869

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

Product Information

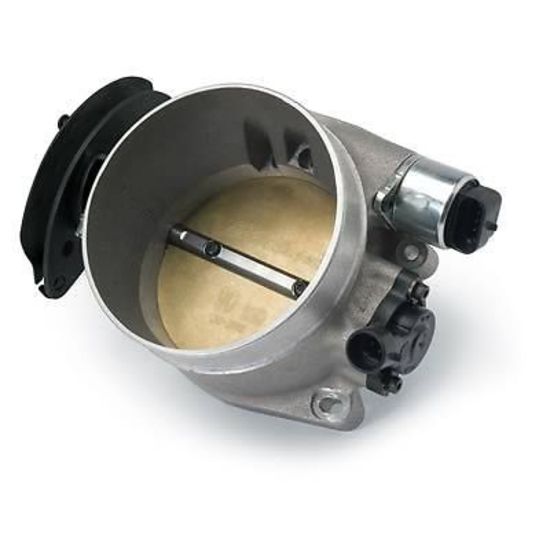

The Edelbrock 90mm single bore throttle body is intended for Pro-Flo XT and EFI Victor Elbow applications. It has provisions for either LS1 or LS2 mounting bolt patterns. The throttle body uses LS1 style TPS and IAC. It offers better idle control than other 90mm throttle bodies, because of the addition of an idle bleed screw. By using the bleed screw to create a base amount of idle air flow instead of throttle tip-in, the TPS signal is unaffected. Features a 4.5" Inlet. Satin Finish

Product Information

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications

Manufacturer: Edelbrock
MPN: Not provided
UPC: 085347038695
Our Part Number: ED3869

Material: Aluminum
Gasket Or Seal Included: Yes
Quantity: Sold Individually
Finish: Satin
Idle Air Control Motor Included: Yes
Cubic Feet Per Minute Rating: 1100
Series: Pro-Flo XT
Bore Diameter: 90
Throttle Position Sensor Included: Yes
Type: Single Blade
