Edelbrock 46750 Crate Engine #46750 GM LS3 Gen V 416, Supercharged, 720 HP, 695 ft-lbs

46750 Crate Engine #46750 GM LS3 Gen V 416, Supercharged, 720 HP, 695 ft-lbs

Name: Edelbrock 46750 Crate Engine #46750 GM LS3 Gen V 416, Supercharged, 720 HP, 695 ft-lbs
Brand: Edelbrock
SKU: ED46750
Price: 43925.95 AUD
Availability: OutOfStock

1 1

Edelbrock

Edelbrock Part No. ED46750

$43,925.95 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:ED46750

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

Product Information

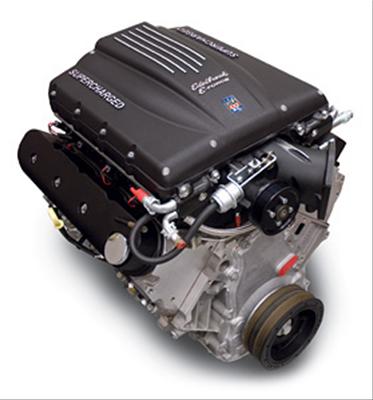

Edelbrock part #46750 Supercharged LS 416 crate engine produces an astounding 720 horsepower and 695 ft-lbs. of torque. The foundation of this engine is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons. This engine features an Edelbrock supercharger with Eaton TVS 2300cc/rev rotors. Also included are the essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger equipped on this engine features a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation. Engine Specifications: Displacement: 416 c.i.d.

Product Information

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications

Manufacturer: Edelbrock
MPN: Not provided
UPC: 085347467501
Our Part Number: ED46750

Crankshaft Material: Forged Steel
Induction Type: Supercharged
Oil Pan Included: Yes
Piston Type: Forged Aluminum
Timing Cover Included: Yes
Outside Pulley Diameter: Stock
Main Bearing Cap Bolt Quantity: 4-Bolt
Idler Pulley Included: Yes
Type: GM LS3 Gen V
Carburetor Type: Not Included
Rocker Arm Ratio: 1.7:1
Camshaft Type: 215deg/247deg, .629/.656, 121 LSA
Cylinder Head Type: GM LSA With Edelbrock Valve Springs #5768
Grade Type: Performance
Construction Type: Assembled
Harmonic Balancer Included: Yes
Calibration: Yes
Wire Harness Included: Yes
Displacement: 416
Engine Block Material: Cast Iron
Power Steering Pump Included: Yes
Fuel Injectors Included: Yes
Plug Wire and Boot Included: Yes
Horsepower: 720
Rear Main Seal Type: 1-Piece
Water Pump Included: Yes, Standard
Carburetor Choke Type: N/A
Valve Cover Type: OEM, Black Powder Coated
Universal Or Specific Fit: Specific Fit
Oil Filter Included: Yes
Compression Ratio: 9.5:1
Air Cleaner Type: Conical
Cylinder Head Material: Aluminum
Distributor Included: No
Valve Cover Included: Yes
Rocker Arm Type: LS3
Valve Cover Material: Cast Aluminum
Alternator Included: Yes
ECU Included: Yes
Flywheel Included: No
Quantity: Sold Individually
Manifold Material: Aluminum
Intake Manifold Type: EFI
Rotor Type: Eaton TVS 2300, Black Powder Coated
Spark Plugs Included: No
Throttle Body Included: Yes
Torque: 695
Pulley Belt Width: Stock
Hardware Included: Yes

Fitment

Confirm compatibility with our team before ordering when your application is not listed.
