Edelbrock 61175 Victor Jr Gen II HEMI Chrysler Cylinder Head Hydraulic Roller Camshaft

61175 Victor Jr Gen II HEMI Chrysler Cylinder Head Hydraulic Roller Camshaft

1 1
Edelbrock
Edelbrock Part No. ED61175
$2,611.36 AUD
$2,611.36 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

ED61175

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

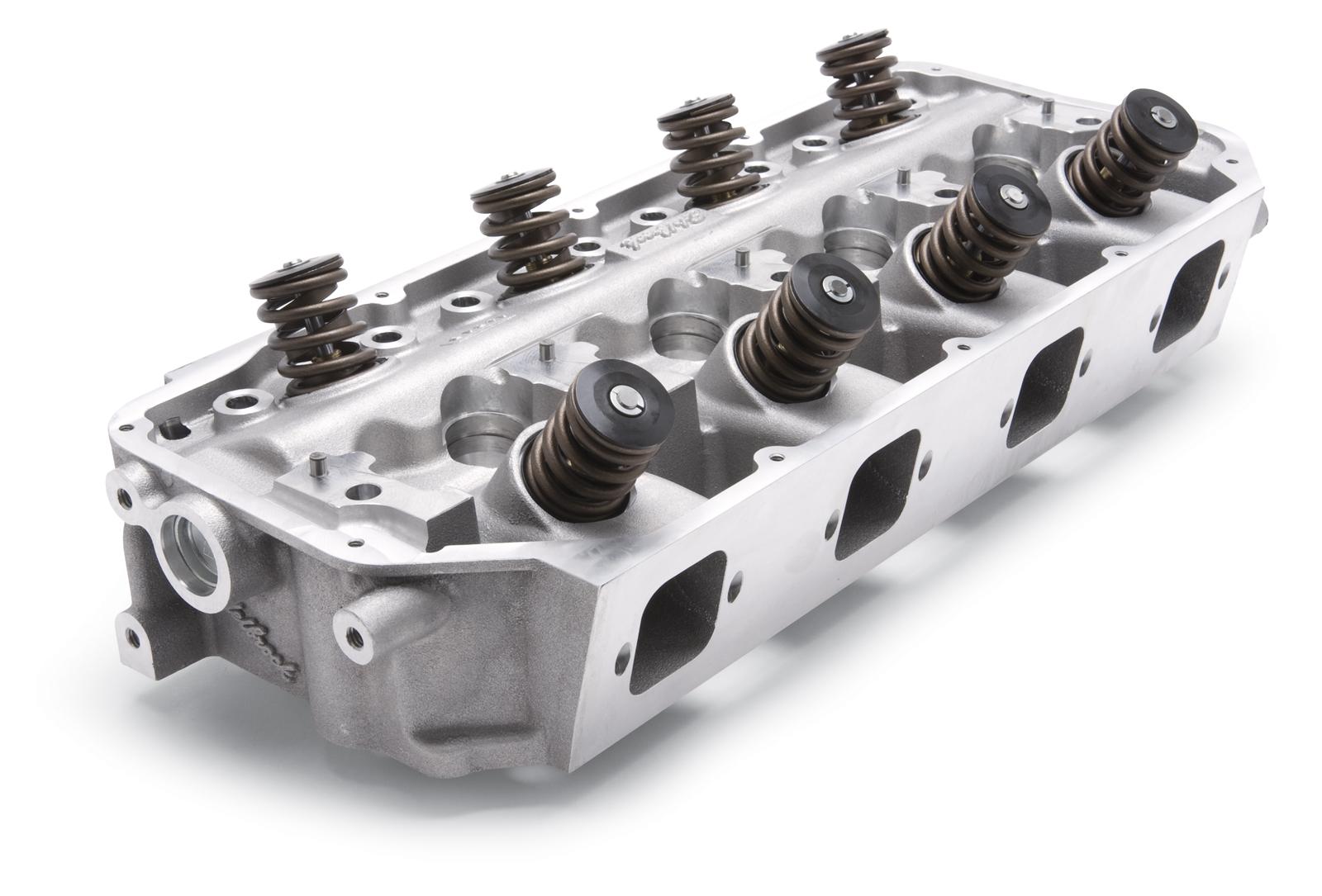

Our new Edelbrock #61175 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.

Product Information

Our new Edelbrock #61175 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Edelbrock
MPN
Not provided
UPC
085347611751
Our Part Number
ED61175
Seat Material: Ductile Iron
Deck Thickness: 0.625
Valve Angle: Exhaust (Tipped) 1.5-21.5 deg/Intake Stock
Camshaft Type: Hydraulic Roller
Push Rod Diameter: (Suggested) 0.3125 in Or 0.375
Intake Valve Diameter: 2.320
Exhaust Valve Diameter: 1.94
EGR Port: No
Exhaust Port Location: Standard
Seat Angle: Exhaust 45 deg/Intake 45
CNC Ported: Yes
Exhaust Runner Volume: 105
Horsepower: 550-800
Valve Spring Maximum Lift: 0.700
Guide Material: Manganese Bronze
Quantity: Sold Individually
Valve Stem Diameter: 0.3125
Retainer Included: Yes
Valve Spring Diameter: 1.54
Construction Type: Complete
10671: No
10024: Yes
10025: Yes
10252: Chromoly Steel
10583: No
10261: No
10582: No
Valve Lock Material: Steel
Product Series: Victor Jr.
Product Family: Victor
