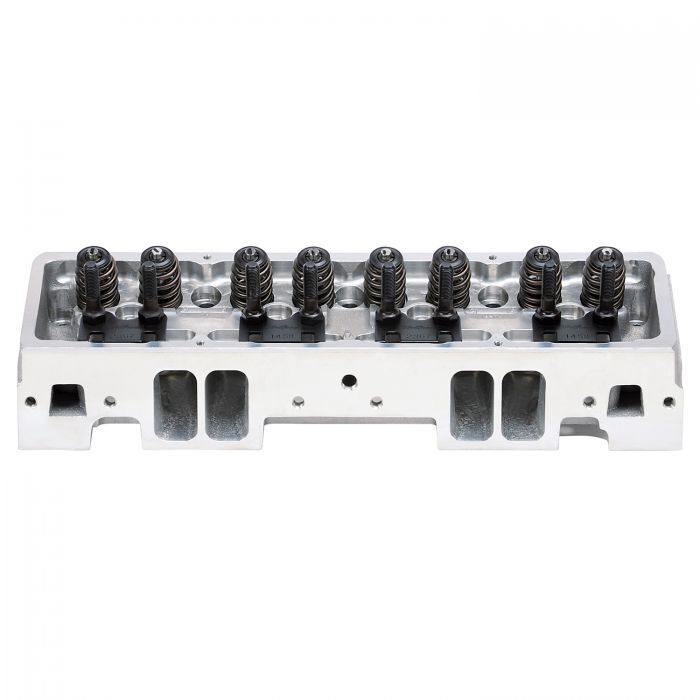

Edelbrock 61205 E-CNC 225 Small-Block Chevy Cylinder Head 70cc Hydraulic Roller

61205 E-CNC 225 Small-Block Chevy Cylinder Head 70cc Hydraulic Roller

Skip to product information
1 of 1
Edelbrock Part No. ED61205
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:ED61205

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

The Edelbrock part #61205 Small Block Chevy E-CNC 225 cylinder head offers the ultimate performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift. E-CNC S/B CHEVY FEATURES: - Features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance - Maintains the stock 23deg valve angle and intake flange bolt pattern for use with 1986 and earlier intake manifolds - Delivers up to 30-60 horsepower over Performer RPM cylinder head - #61205 & #61209 features 7/16" studs and angled spark plugs - Ideal for high Performance's street and racing applications

Product Information

The Edelbrock part #61205 Small Block Chevy E-CNC 225 cylinder head offers the ultimate performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift. E-CNC S/B CHEVY FEATURES: - Features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance - Maintains the stock 23deg valve angle and intake flange bolt pattern for use with 1986 and earlier intake manifolds - Delivers up to 30-60 horsepower over Performer RPM cylinder head - #61205 & #61209 features 7/16" studs and angled spark plugs - Ideal for high Performance's street and racing applications

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Edelbrock
MPN
Not provided
UPC
085347612055
Our Part Number
ED61205
Quantity: Sold Individually
Intake Valve Diameter: 2.10
Valve Angle: 23
Combustion Chamber Volume: 64
Valve Spring Maximum Lift: 0.680
CNC Ported: Yes
Exhaust Port Location: +.200
Construction Type: Complete
Rotor Center Bore Inside Diameter: angled
Rocker Arm Stud Diameter: 0.4375
Exhaust Runner Volume: 88
Retainer Included: No
Valve Spring Diameter: 1.34
10024: No
10025: Yes
10252: Chromoly Steel
10583: No
10261: No
10671: Yes
10582: No
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
Product Series: E-CNC
Product Family: CNC
Camshaft Type: Hydraulic Roller
Horsepower: 500-600
Push Rod Diameter: (Suggested) 0.3125
Deck Thickness: 0.5625
Seat Angle: Exhaust 45 deg/Intake 45
Valve Stem Diameter: 0.3110
Seat Material: Ductile Iron
Guide Material: Manganese Bronze
Exhaust Valve Diameter: 1.60
EGR Port: No
