Edelbrock 61709 Victor Small-Block Chrysler Cylinder Head

61709 Victor Small-Block Chrysler Cylinder Head

Skip to product information
1 of 1
Edelbrock Part No. ED61709
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:ED61709

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

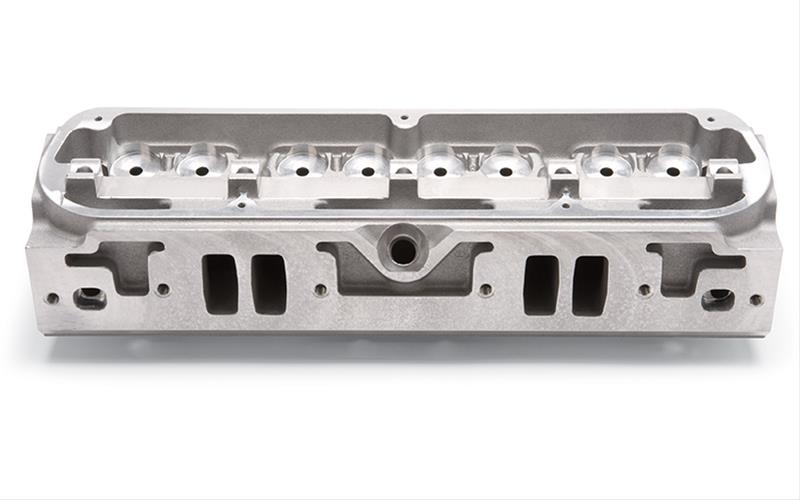

The Edelbrock #61719 Victor Series Bare cylinder heads are for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. These cylinder heads are an in-line valve design incorporating a 16 Deg valve angle (stock is 18 Deg ) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available

Product Information

The Edelbrock #61719 Victor Series Bare cylinder heads are for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. These cylinder heads are an in-line valve design incorporating a 16 Deg valve angle (stock is 18 Deg ) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Edelbrock
MPN
Not provided
UPC
085347617098
Our Part Number
ED61709
Intake Runner Volume: 225.0
Valve Angle: 16
Guide Plates Included: No
Grade Type: Performance
Push Rod Diameter: 0.312
Combustion Chamber Volume: 60.0
Material: Aluminum
Deck Thickness: 0.562
CNC Ported: No
Deck Height: 9.600
Head Casting Number: 6170F
Product Family: Victor
Fitment
