Product Information

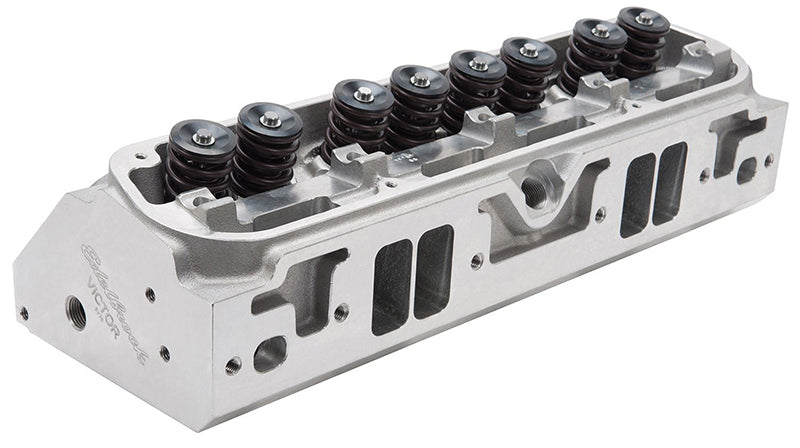

These Edelbrock #61729 Victor Series cylinder head is for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available

Product Information

These Edelbrock #61729 Victor Series cylinder head is for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Edelbrock
MPN
Not provided
UPC
085347617296
Our Part Number
ED61729
Deck Thickness: 0.625
Valve Spring Maximum Lift: 0.670
Seat Angle: Exhaust 45 deg/Intake 45
10671: No
10024: Yes
10025: Yes
10252: Chromoly Steel
10583: No
10261: No
10582: No
Valve Lock Material: Steel
Product Series: Victor
Product Family: Victor
Horsepower: 500-650
CNC Ported: No
Guide Material: Manganese Bronze
Intake Valve Diameter: 2.15
Valve Spring Diameter: 1.55
Quantity: Sold Individually
Camshaft Type: Solid Roller
Retainer Included: Yes
Valve Angle: 16
Guide Plate Material: Hardened Steel
Valve Stem Diameter: 0.3438
EGR Port: No
Construction Type: Complete
Exhaust Port Location: +.500
Exhaust Valve Diameter: 1.60
Exhaust Runner Volume: 62
Seat Material: Ductile Iron
