Product Information

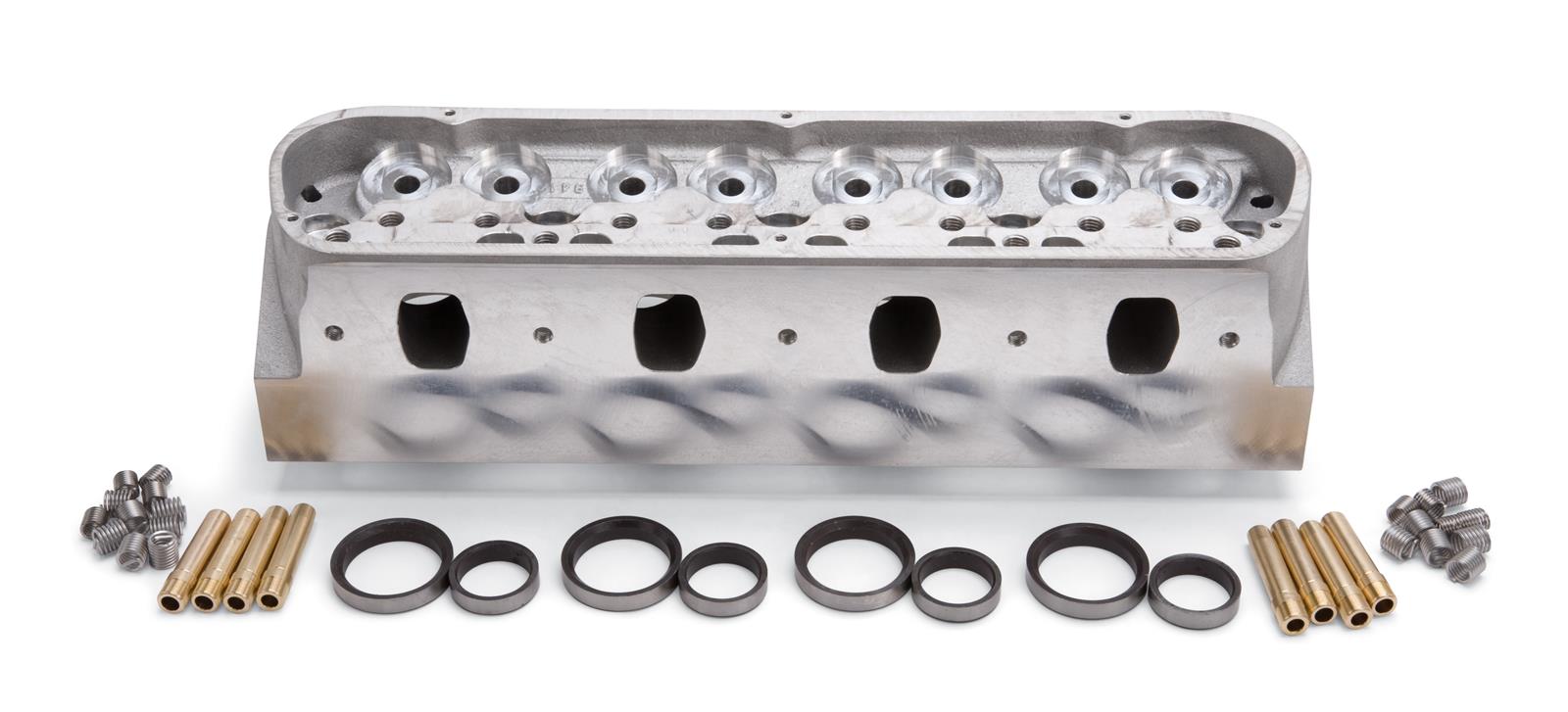

The Edelbrock 773169 Small Block Ford Glidden-Victor II Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Product Information

The Edelbrock 773169 Small Block Ford Glidden-Victor II Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Edelbrock
MPN
Not provided
UPC
085347994373
Our Part Number
ED773169
Material: Aluminum
Combustion Chamber Volume: Possible 24
Exhaust Valve Pierce Points (X,Y)(C): 1.170 in, 0.0
Valve Guides Included: Yes
Intake Valve Diameter: (Suggested) 2.24
Exhaust Valve Diameter: (Suggested) 1.64
Valve Angle: 11.3
EGR Port: No
Valve Spacing: 1.930
Retainer Included: No
Valve Included: No
CNC Ported: No
Exhaust Port Entry: 1.66 in x 1.43
Specialty: Hot Isostatic Pressing (HIP) Processing
Intake Valve Pierce Points (X,Y)(C): -0.760 in, 0.0
Seat Material: Ductile Iron
Grade Type: Performance
Construction Type: Pro-Port Raw
Deck Thickness: 0.625
Guide Plates Included: No
Head Casting Number: N/A
Guide Material: Manganese Bronze
Seat Angle: Exhaust 45 deg/Intake 45
Intake Port Entry: 1.34 in x 1.77
Valve Seats Included: Yes
Quantity: Sold Individually
Valve Springs Included: No
Product Family: Pro-Series
Product Series: Pro-Port
