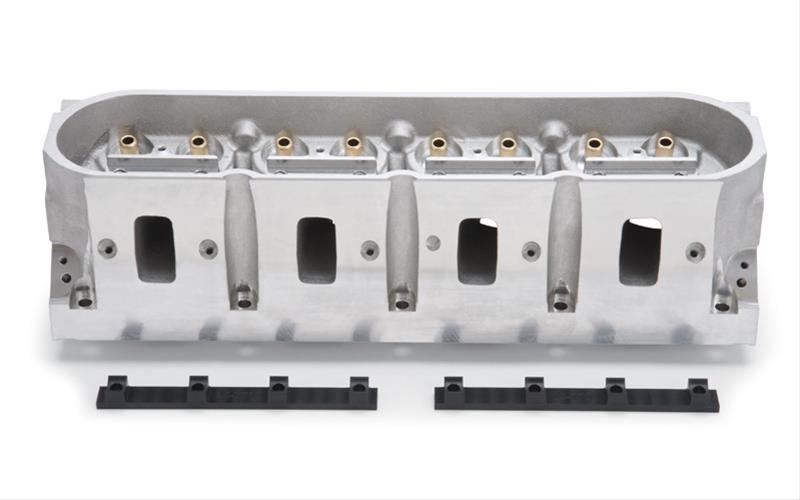

Edelbrock 77369 Pro Port Gen IV LS7 Cylinder Head

77369 Pro Port Gen IV LS7 Cylinder Head

Skip to product information
1 of 1
Edelbrock Part No. ED77369
Regular price $1,497.70 AUD
Regular price Sale price $1,497.70 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:ED77369

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

The Edelbrock 77369 Small Block Chevy LS7 Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Product Information

The Edelbrock 77369 Small Block Chevy LS7 Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Edelbrock
MPN
Not provided
UPC
085347773695
Our Part Number
ED77369
Construction Type: Pro-Port Raw
Valve Included: No
Valve Angle: 12
CNC Ported: No
Retainer Included: No
Deck Thickness: 0.625
Exhaust Valve Diameter: (Suggested) 1.38 in x 1.00
Specialty: Hot Isostatic Pressing (HIP) Processing
Intake Valve Diameter: (Suggested) 2.200
Material: Aluminum
Grade Type: Performance
Head Casting Number: N/A
Valve Springs Included: No
Guide Material: Manganese Bronze
EGR Port: #N/A
Quantity: Sold Individually
Seat Material: Ductile Iron
Guide Plates Included: No
Combustion Chamber Volume: N/A
Seat Angle: Exhaust 45 deg/Intake 45
Product Family: Victor
