Edelbrock 79949 E-CNC Gen III LS Chevy Cylinder Head Hydraulic Roller Camshaft

79949 E-CNC Gen III LS Chevy Cylinder Head Hydraulic Roller Camshaft

Skip to product information
1 of 1
Edelbrock Part No. ED79949
Regular price $2,278.13 AUD
Regular price Sale price $2,278.13 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:ED79949

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

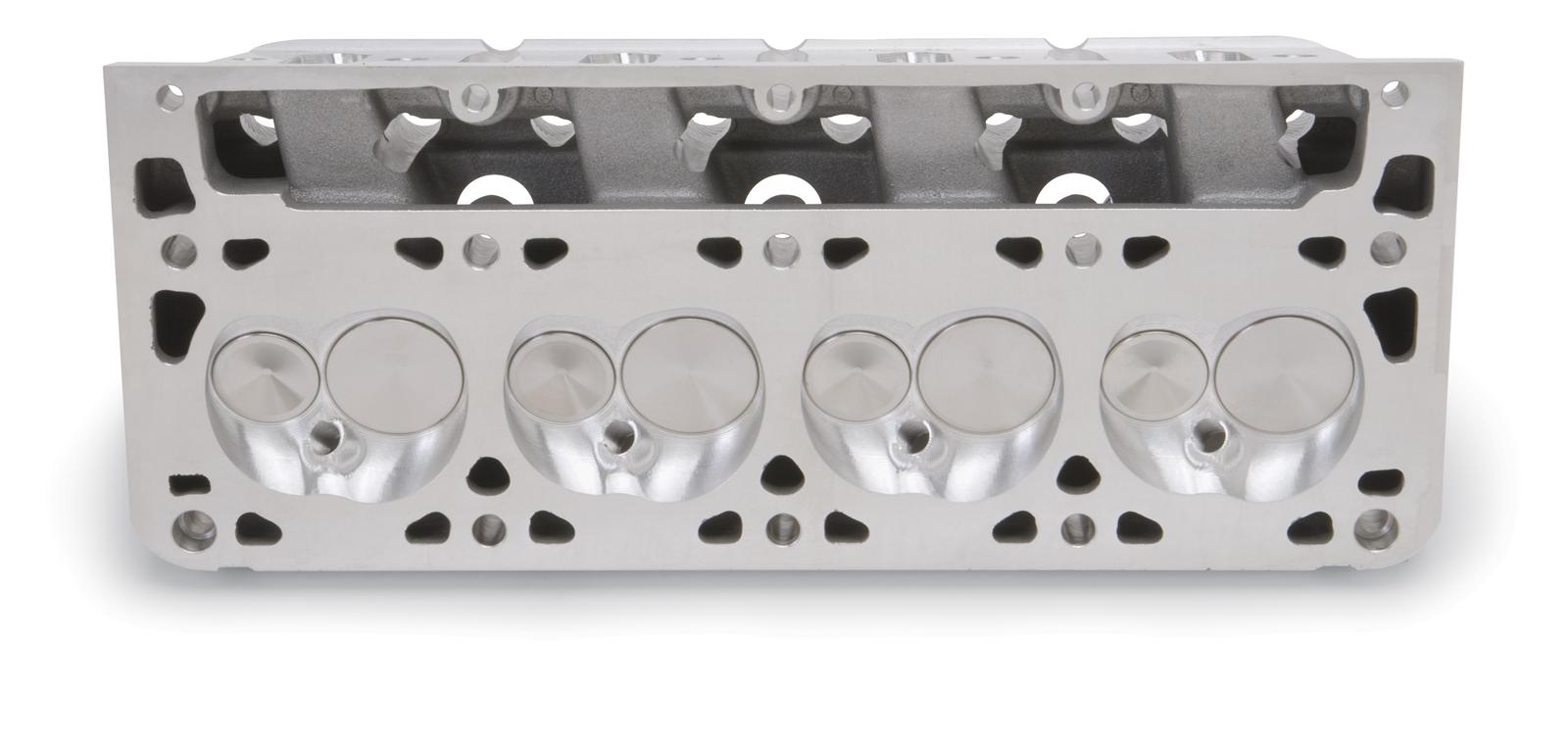

The Edelbrock 79949 E-CNC Small Block Chevy GEN 3 & 4 LS cylinder head are designed for 1997 & later GEN 3 & 4 LS1/LS2 Chevy engines including 4.8L, 5.3L, 5.7L & 6.0L. The E-CNC Cylinder Head feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved air-flow. Dyno tests proved this head is capable of 457 hp & 438 ft-lbs. of torque. High-quality conical beehive springs are secured with steel retainers and valve locks for performance up to .600" valve lift. Match with any one of Edelbrock's LS series intake manifolds and camshafts for a dyno-proven performance combination. Rocker bolt kit #8597 includes 8 rocker bolts that are shorter than stock to prevent the bolts from protruding into the intake ports. E-CNC 215 head is 50-state street legal.

Product Information

The Edelbrock 79949 E-CNC Small Block Chevy GEN 3 & 4 LS cylinder head are designed for 1997 & later GEN 3 & 4 LS1/LS2 Chevy engines including 4.8L, 5.3L, 5.7L & 6.0L. The E-CNC Cylinder Head feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved air-flow. Dyno tests proved this head is capable of 457 hp & 438 ft-lbs. of torque. High-quality conical beehive springs are secured with steel retainers and valve locks for performance up to .600" valve lift. Match with any one of Edelbrock's LS series intake manifolds and camshafts for a dyno-proven performance combination. Rocker bolt kit #8597 includes 8 rocker bolts that are shorter than stock to prevent the bolts from protruding into the intake ports. E-CNC 215 head is 50-state street legal.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Edelbrock
MPN
Not provided
UPC
085347799497
Our Part Number
ED79949
Valve Stem Diameter: 0.314961
Retainer Included: Yes
Valve Angle: 15
Exhaust Port Location: Standard
Valve Spring Diameter: 1.30
CNC Ported: Yes
Exhaust Runner Volume: 76
Horsepower: 400-500
Construction Type: Complete
Guide Material: Manganese Bronze
Push Rod Diameter: (Suggested) 0.3125
EGR Port: No
Exhaust Valve Diameter: 1.57
Seat Angle: Exhaust 45 deg/Intake 45
Seat Material: Ductile Iron
Deck Thickness: 0.625
Intake Valve Diameter: 2.02
Camshaft Type: Hydraulic Roller
Valve Spring Maximum Lift: 0.680
10024: Yes
10025: Yes
10252: Chromoly Steel
10583: No
10261: No
10671: No
10582: No
Valve Lock Material: Steel
Product Series: E-CNC
Product Family: CNC
Quantity: Sold Individually
Fitment
