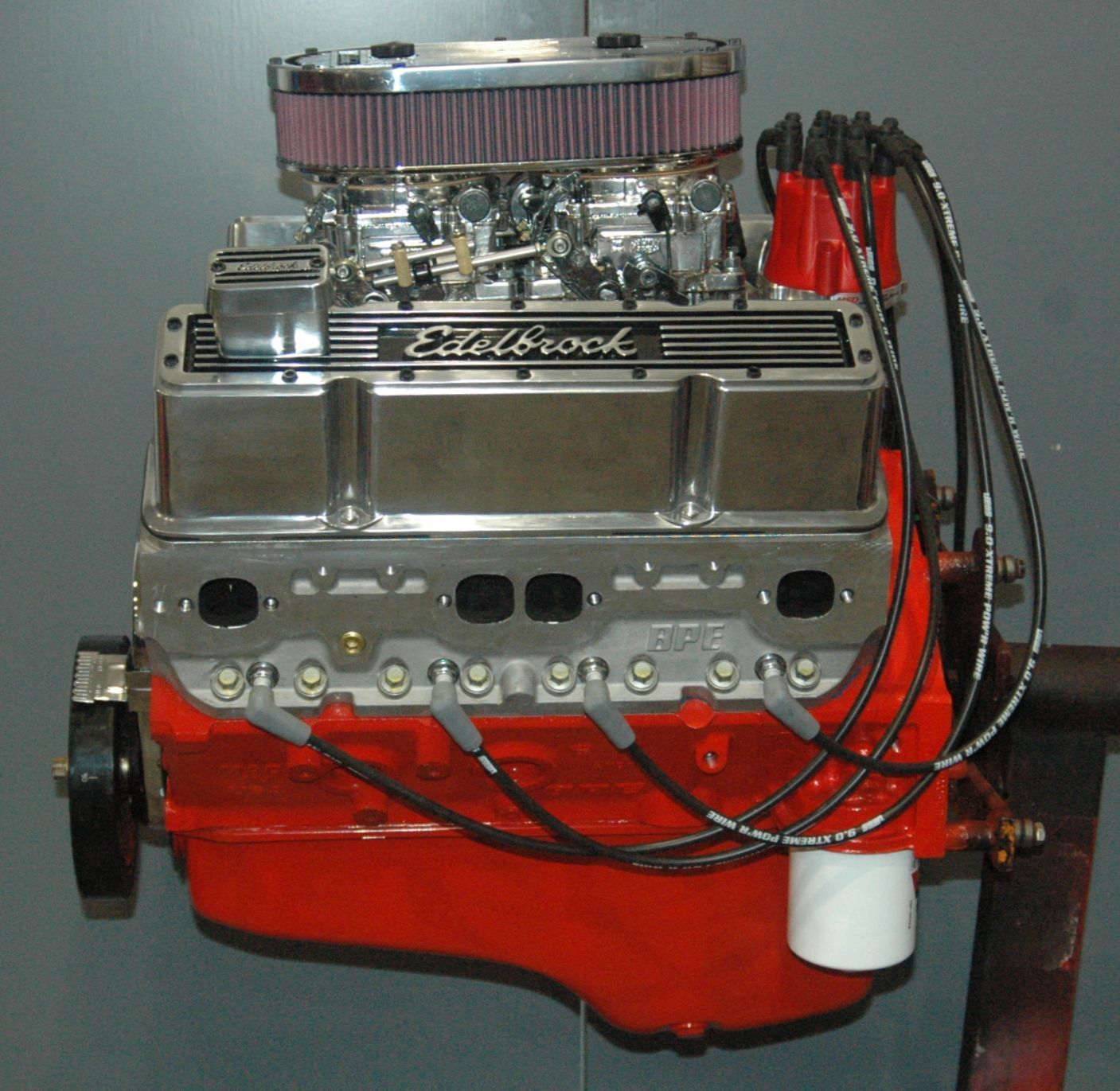

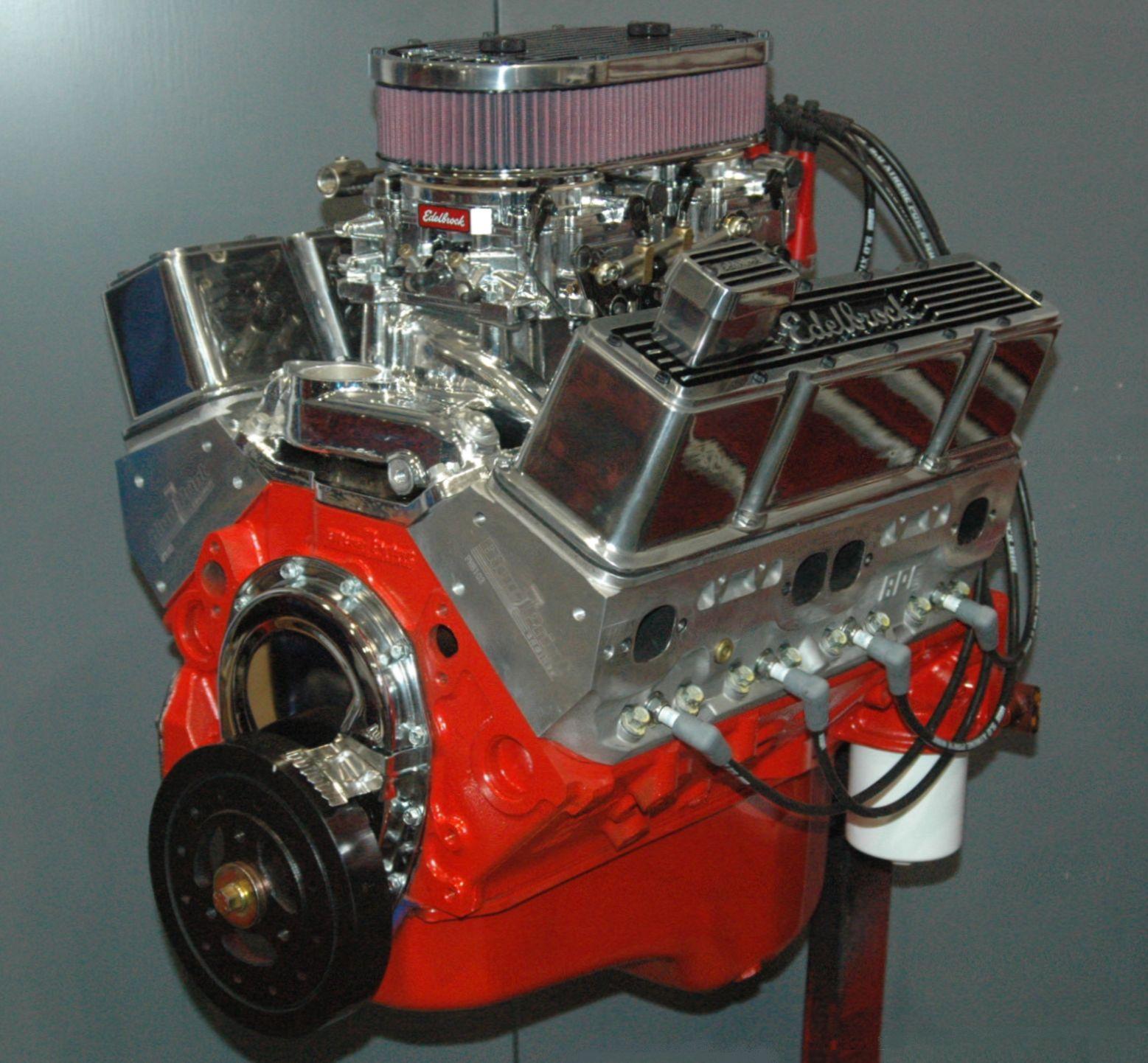

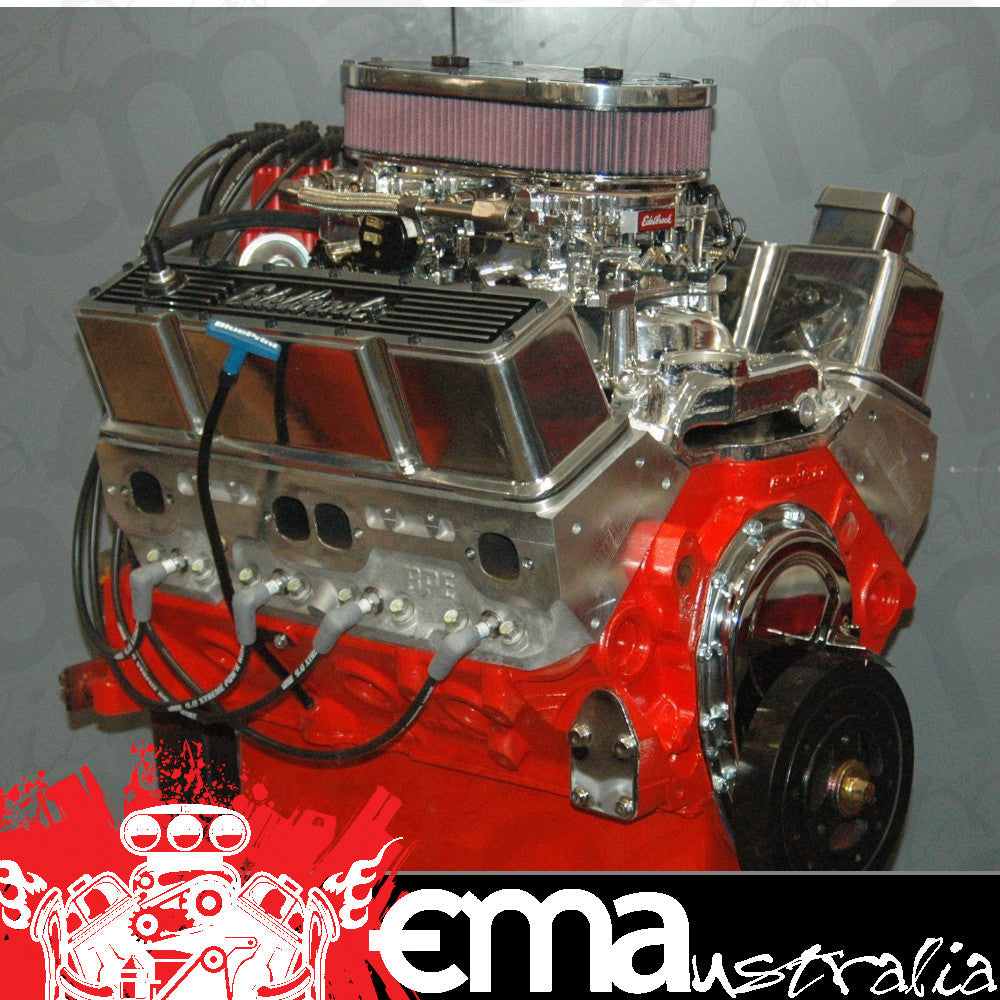

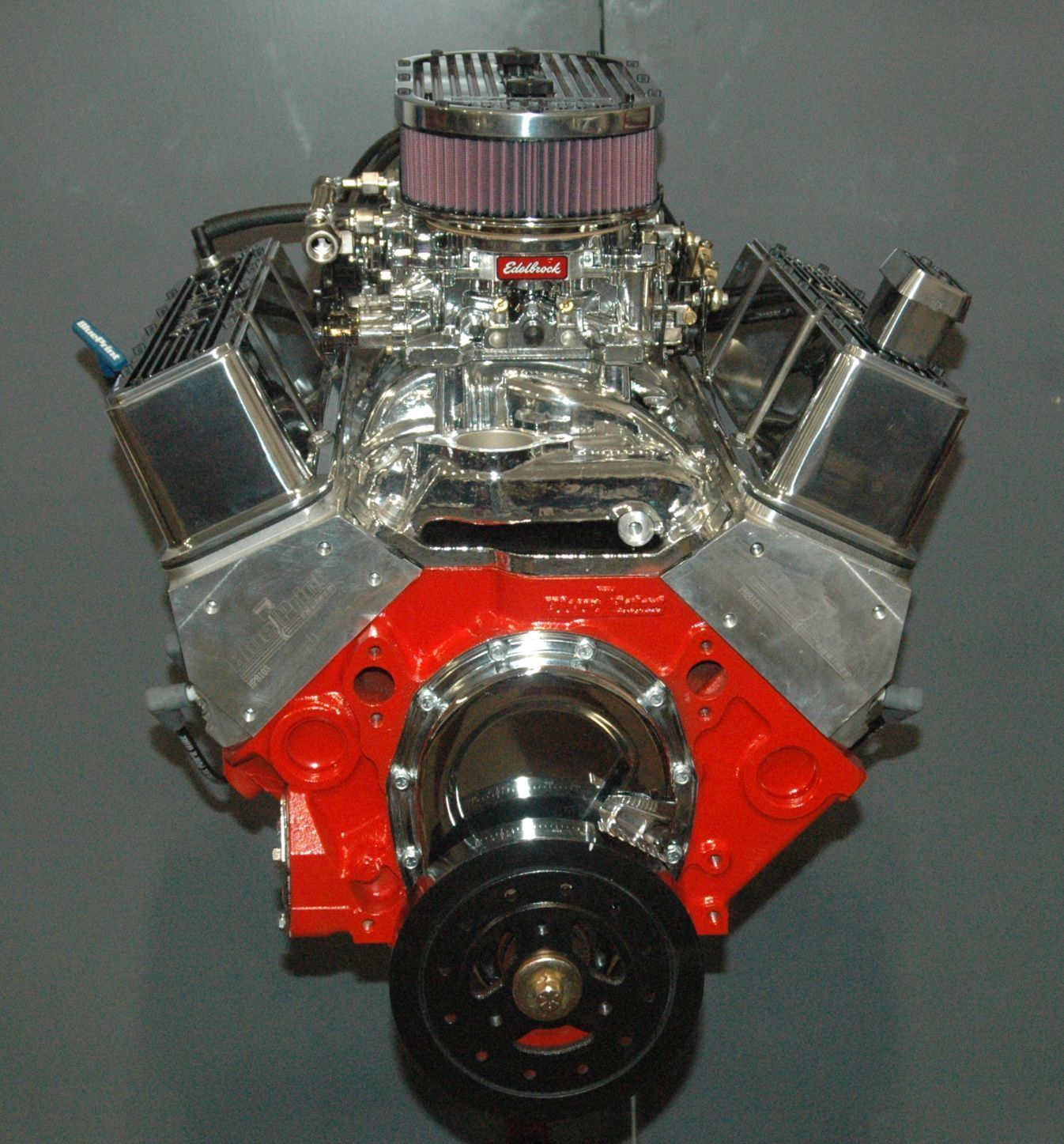

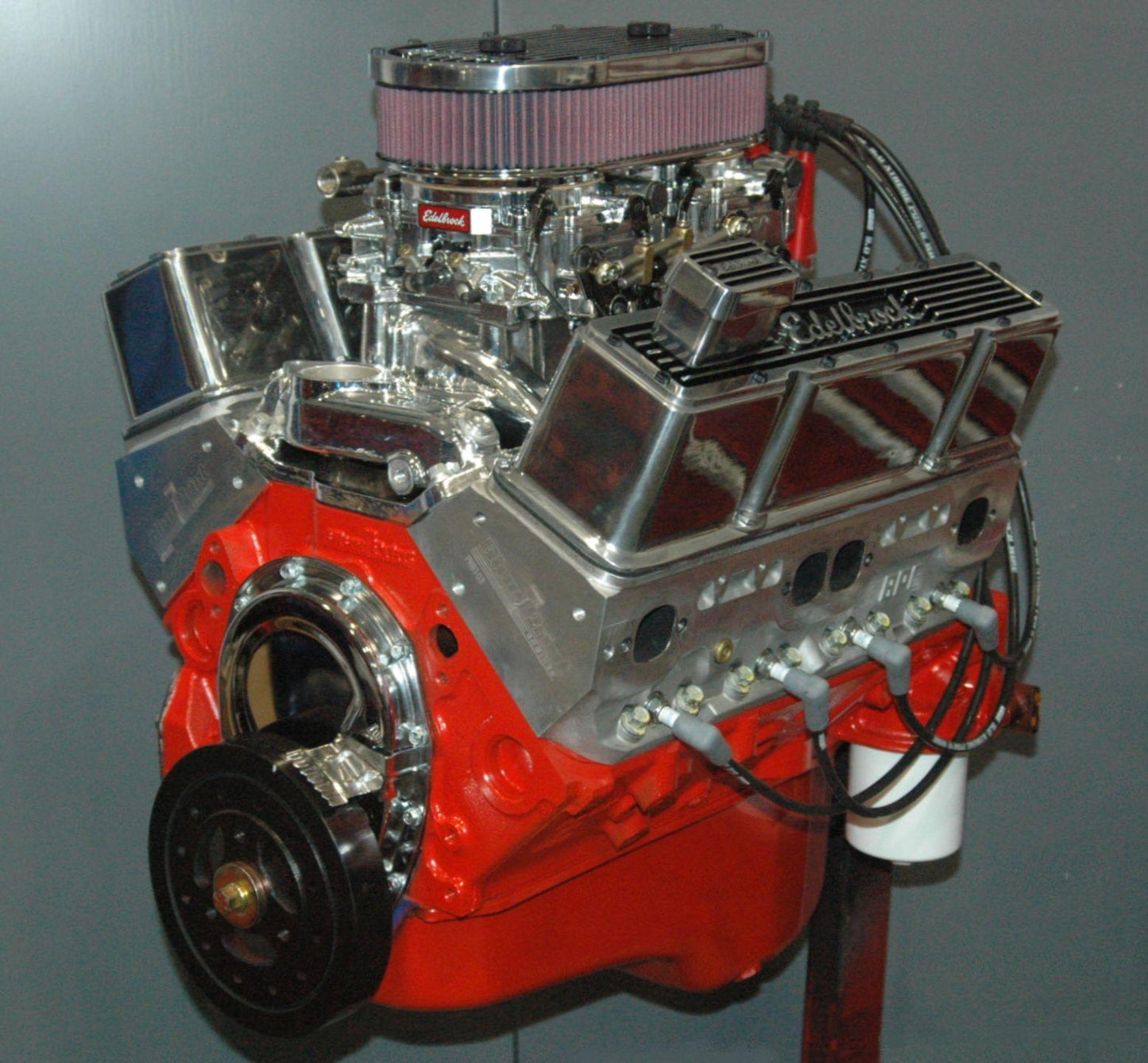

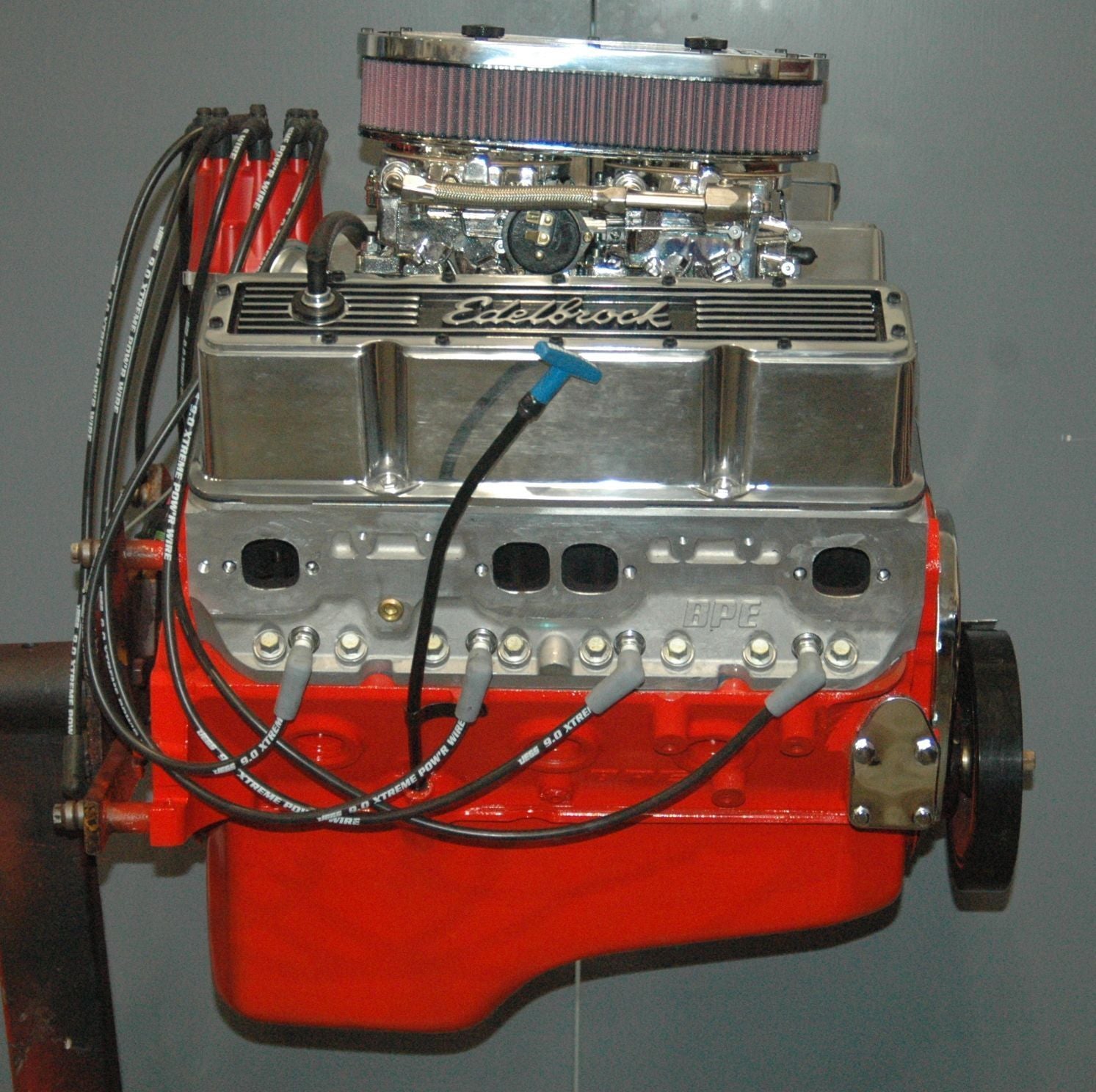

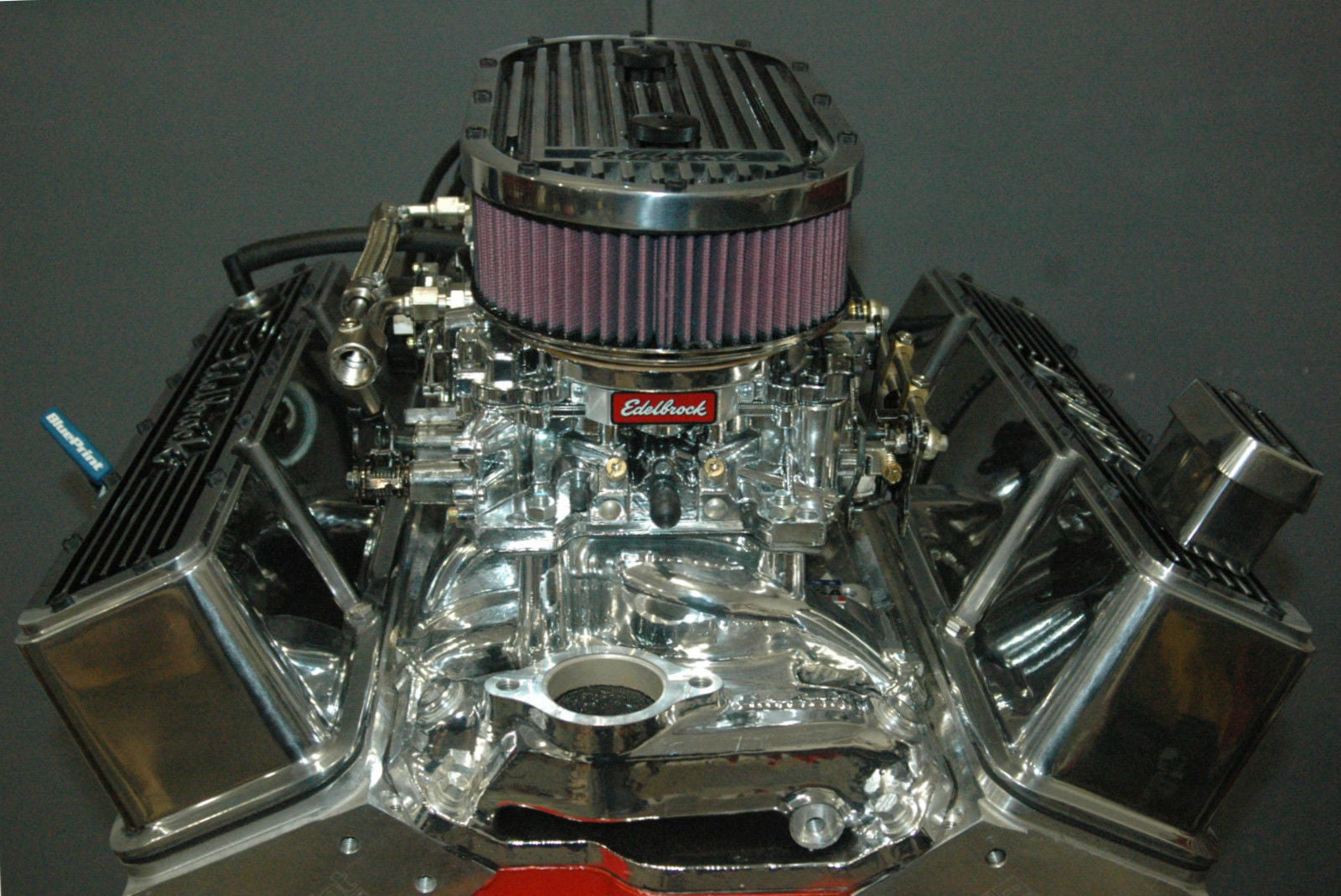

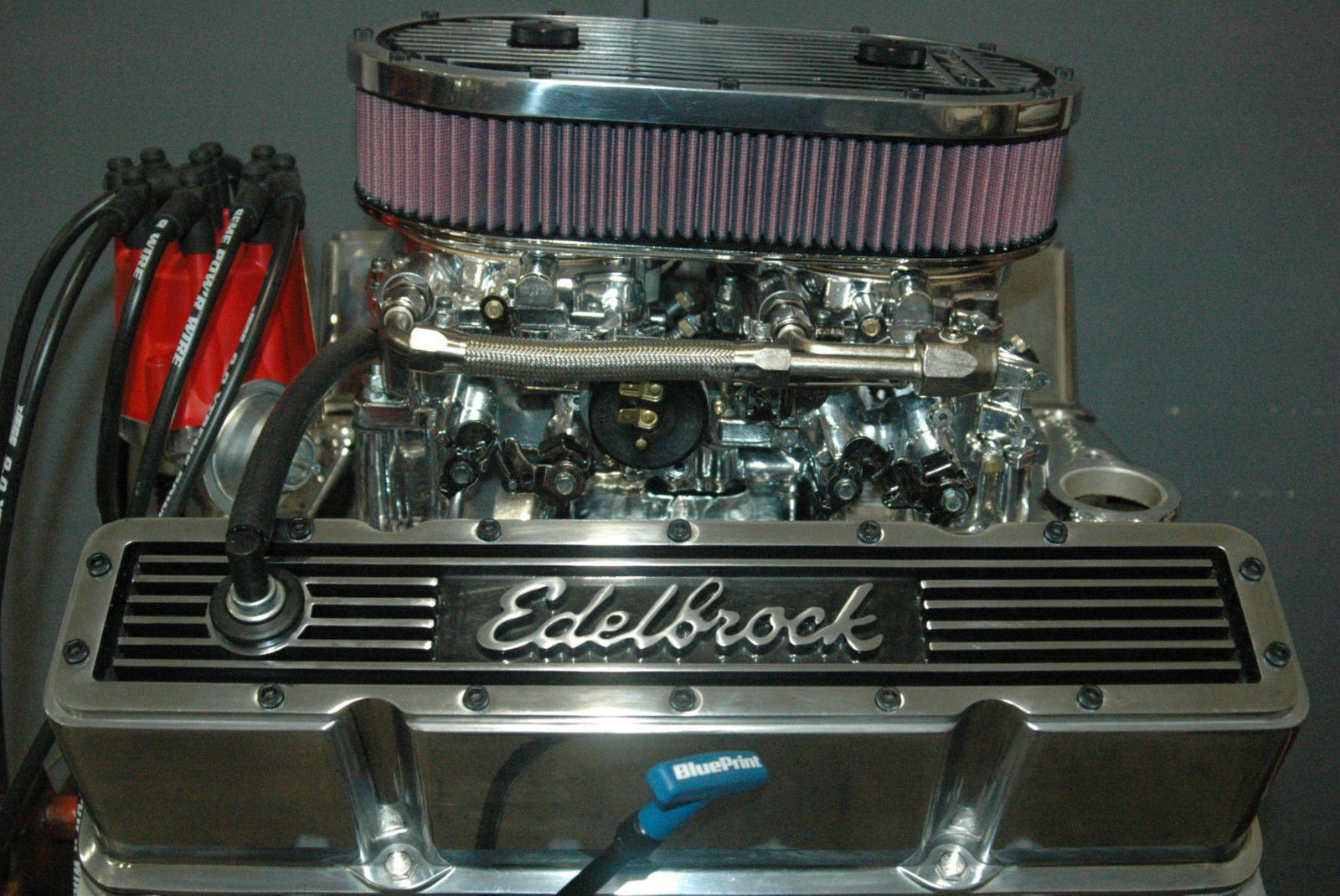

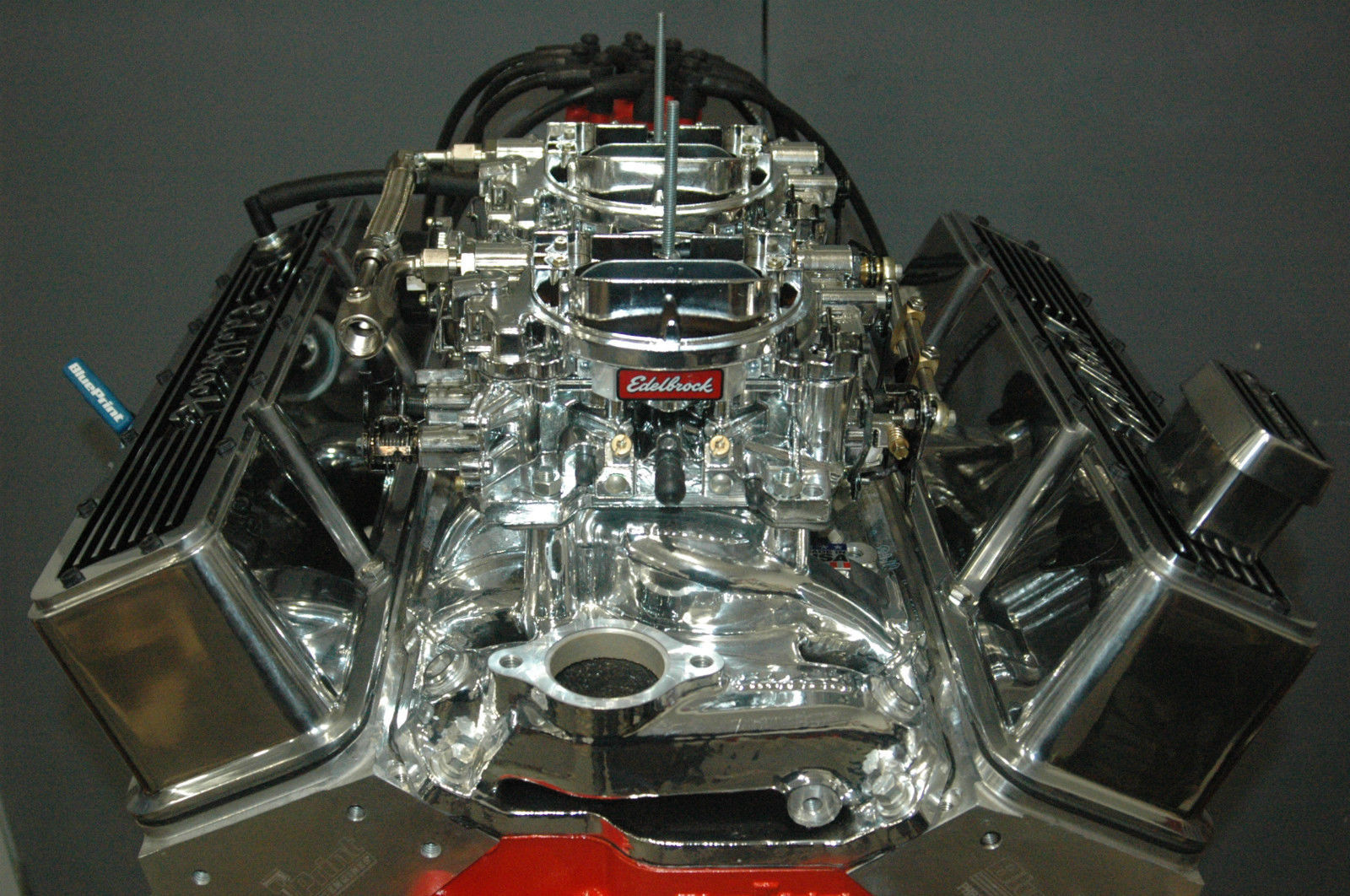

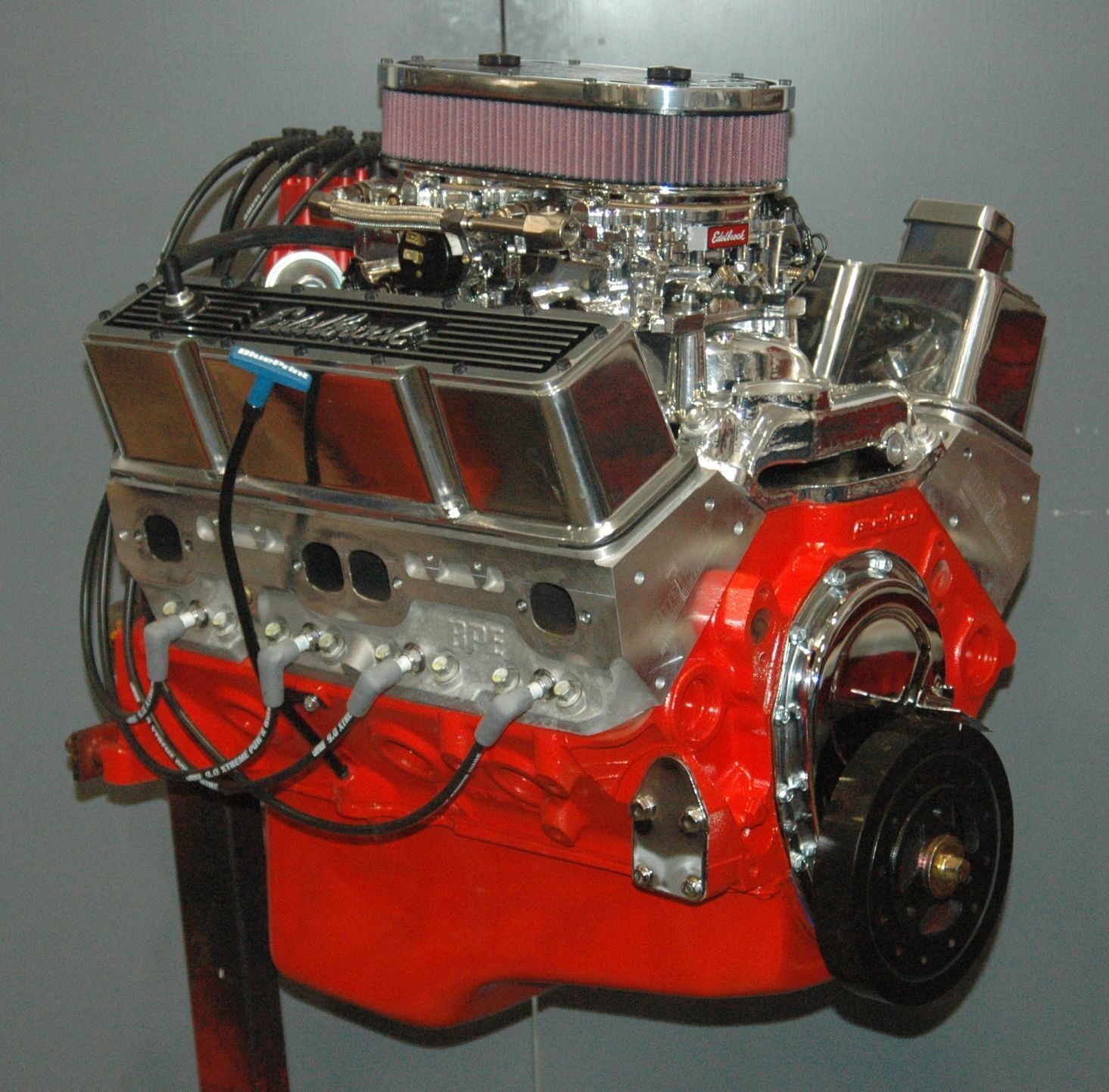

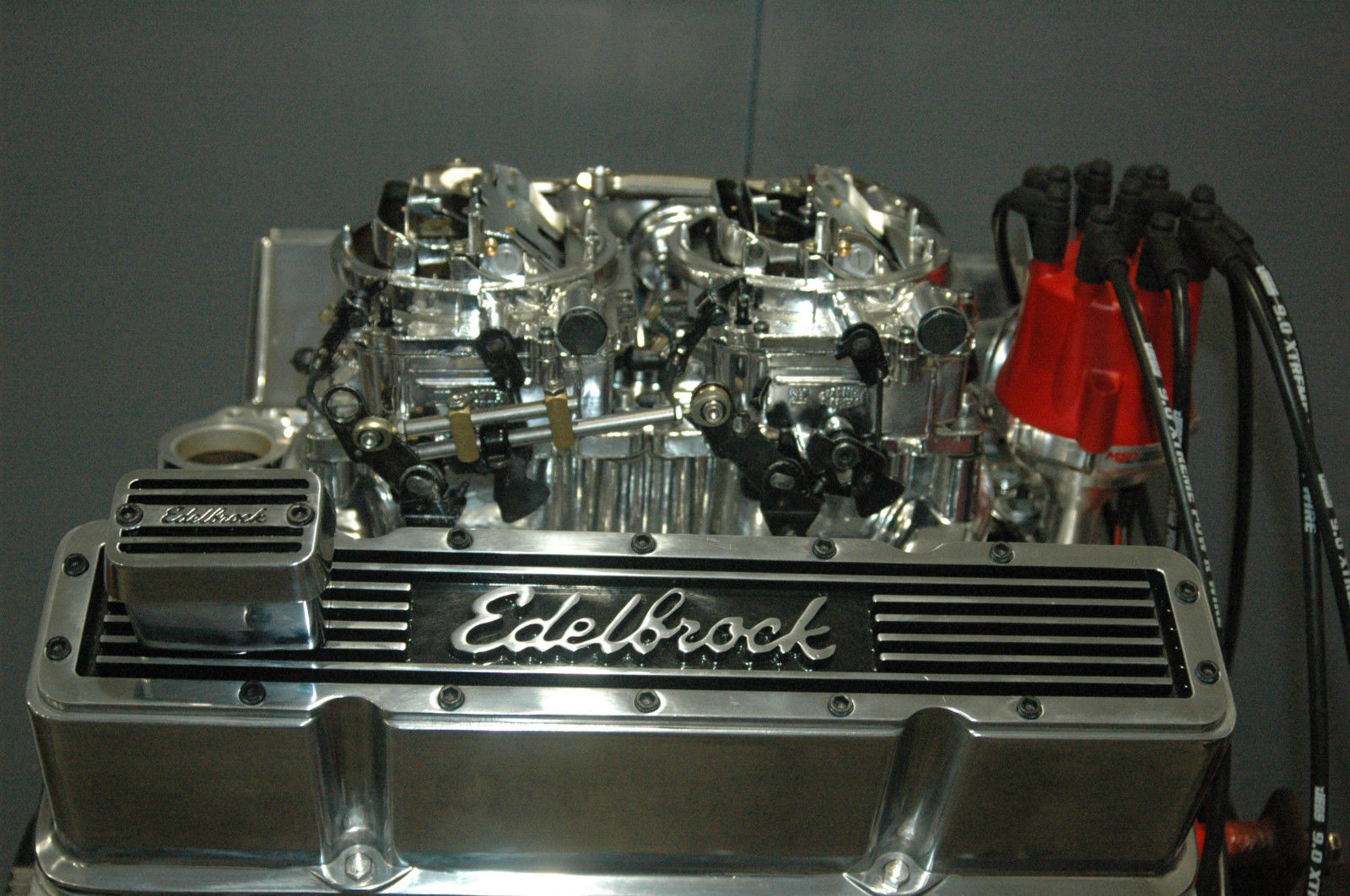

Engine Master Australia 400CRATE EMA - Chevy 400 Dressed Crate Engine 481HP 485Ft/Lb Alloy Heads Edelbrock Dual Carb Kit

Engine Master Australia 400CRATE EMA - Chevy 400 Dressed Crate Engine 481HP 485Ft/Lb Alloy Heads Edelbrock Dual Carb Kit

400CRATE
$20,759.70 AUD
$20,759.70 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Not your grandpa's 400 —BluePrint Engines GM 400 c.i.d. base crate engines are the new "mighty mouse" small blocks.

These engine assemblies are built in the USA by skilled craftsmen utilizing BluePrint's exclusive designed and manufactured blocks. They come balanced, blueprinted, and dyno-tested in house by us on our superflow 902 engine dyno.





HP & Torque: 481 HP / 485 FT LBS
  • Compression Ratio: 10.3:1
  • Edelbrock EnduraShine Performer RPM dual quad air gap manifold & Carburetor kit
  • Aluminum Heads
  • Forged Pistons
  • Roller Cam
  • Forged Crank
  • Part #: BP4002CTC1
Block:
  • BRAND NEW BluePrint Cast Iron Block
  • 4 Bolt Mains
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders are sonic tested for thickness
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  • 1-Piece Rear Main Seal
Rotating Assembly:
  • New forged crankshaft
  • 5.7" connecting rods
  • 150,000 psi rod bolts
  • Forged pistons
  • Hastings moly rings
  • Rotating assembly balanced to within 2 grams
  • High volume oil pump
  • Hydraulic roller cam
  • Roller lifters
Cylinder Heads:
  • BluePrint aluminum — 64cc chamber
  • Hardened retainers and springs
  • 2.08 swirl polished intake valves
  • 1.60 swirl polished exhaust valves
  • BP Aluminum Head Part# H8103
Cam Specs:
  • Cam Type: Roller
  • .553 Intake .576 Exhaust
  • 236 Intake / 242 Exhaust duration
  • @ .050 - 110° lobe separation
  • 1.6 Roller rockers
  • Ignition Timing:
  • 10-16° inital and total timing 32-34° at 3500 RPM
Also Included:

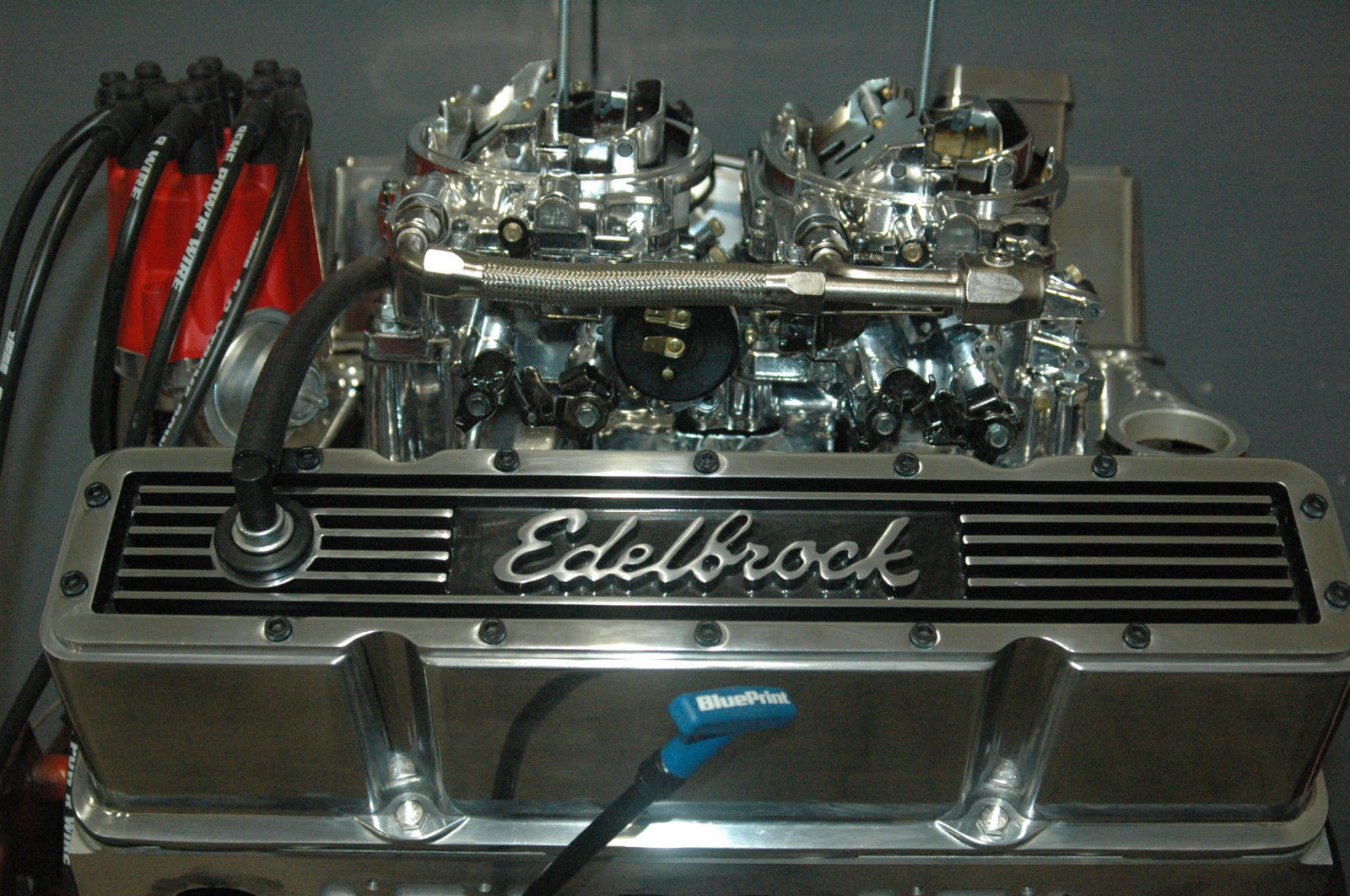

  • Edelbrock Performer RPM Air-Gap Dual-Quad intake manifold

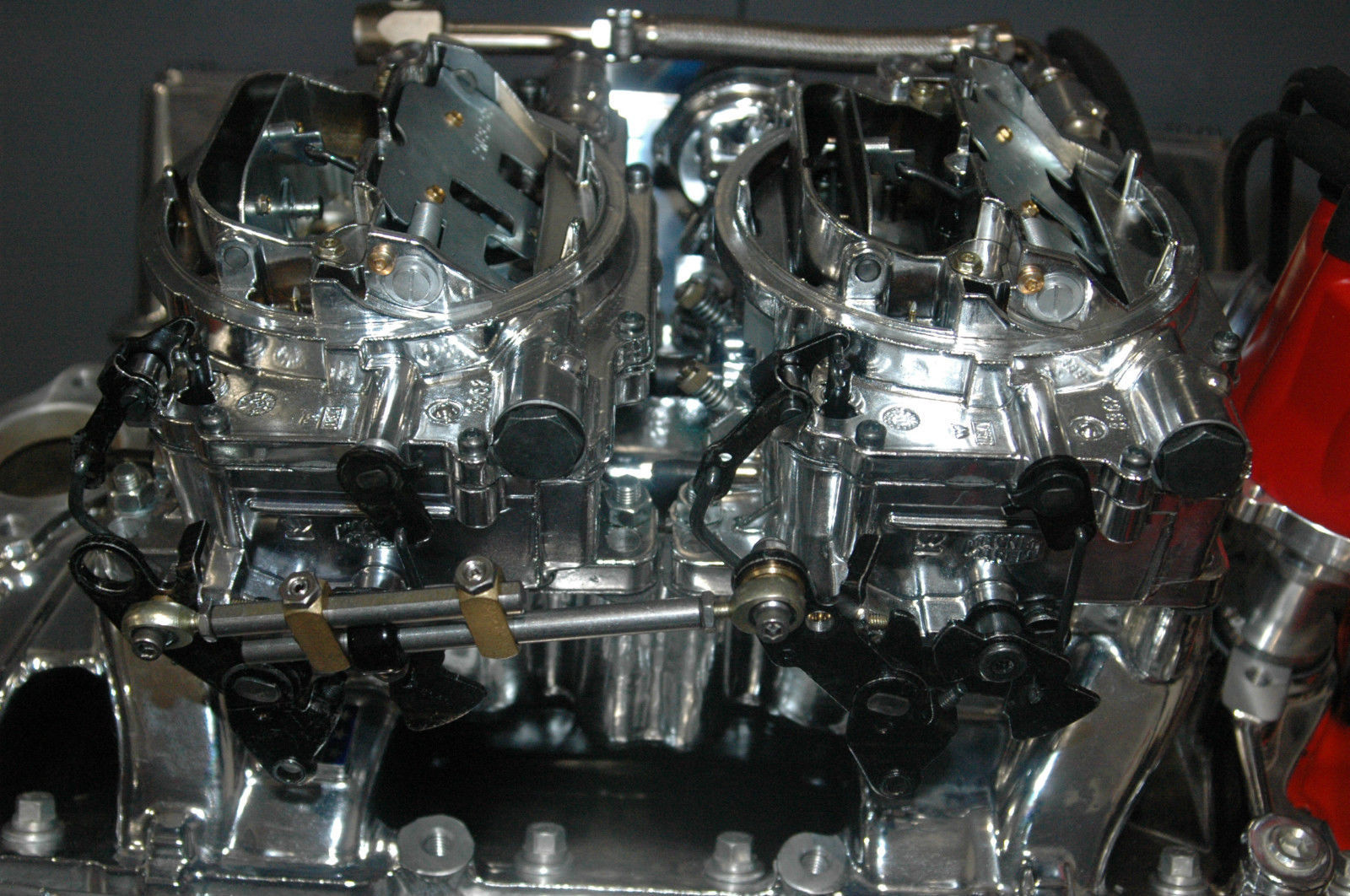

  • Dual Edelbrock 500 CFM Thunder Series AVS carburetors
  • MSD Pro-Billet Ready-To-Run Distributor
  • MSD Blaster SS Coil
  • Edelbrock Elite Series Valve Covers - Polished Finish
  • Edelbrock Elite Series Oval Air Cleaner - Polished Finish
  • Edelbrock Elite Series Rectangular Breathers - Polished Finish
  • Chrome timing cover and pointer
  • Powerbond Street Series Harmonic Balancer
  • Oil pan
  • Brass freeze plugs
  • Dyno test results shipped with engine

Notes: This is a brand NEW BluePrint block manufactured and machined in the USA!

Please contact us with your suburb and postcode for a shipping quote.

We also sell this part at our retail outlet, we only have one of these available, so to avoid any disappointment, please contact us before pressing buy it now.
