Engine Master Australia EMA-ED2194HO1850S-KIT Kitted Item w/ Ed2194 Holden 253 304 308 Intake Manifold & Holley Street Warrior 4160 600Cfm Carburetor

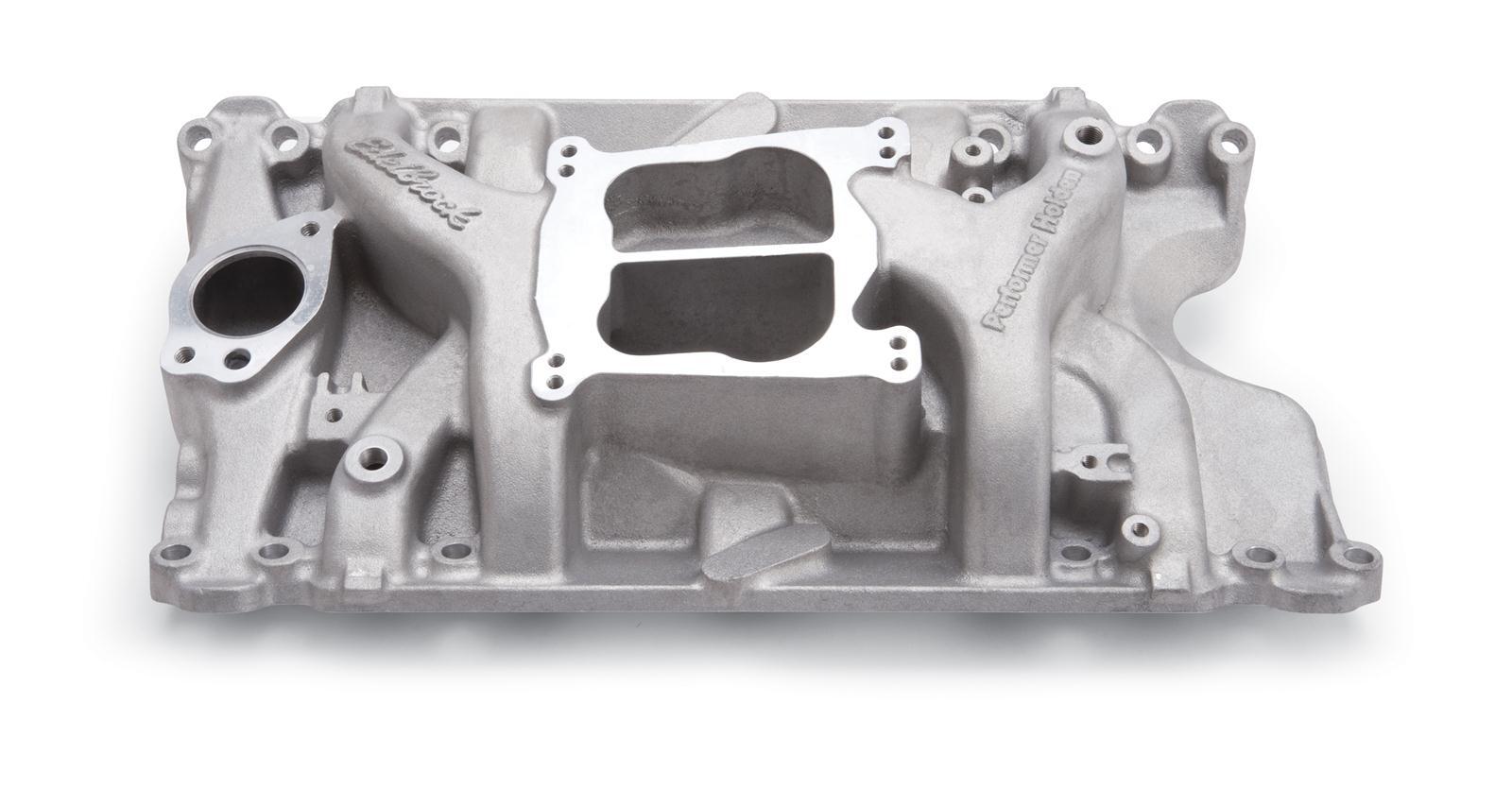

Edelbrock ED2194

Edelbrock Performer intake manifolds are low-rise, dual-plane designs with patented runner tuning and a 180 degree firing order that you won't find with the competition.

This combination boosts torque over a wide rpm range, from idle to 5,500 rpm. These manifolds also deliver improved throttle response over stock intakes and are available in both EGR and non-EGR style.

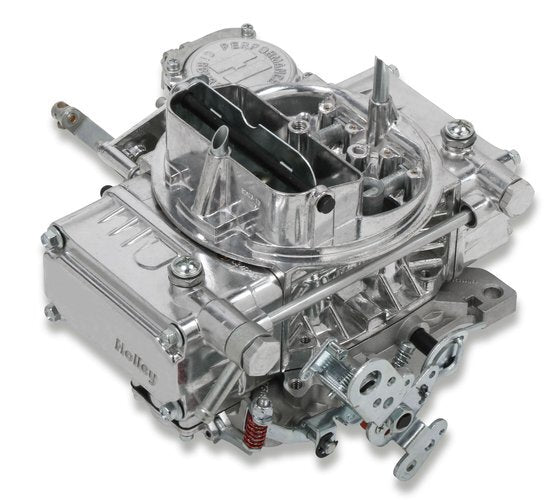

Holley HO0-1850S

Holley has been the world leader in carburetors for over 100 years. We are proud to announce the newest member of our carburetor family- the Street Warrior. The goal in designing the Street Warrior was to take all of those years of experience and build the ultimate performance street carburetor for your daily driver that would not break the bank. Don't let the low price fool you. The Street Warrior uses the latest technology and quality products that Holley is known for. Constructed from aluminum and calibrated to run great right out of the box. The Street Warrior is a great replacement carburetor for your daily driver or your weekend cruiser. Perfect replacement carburetor when your original style is no longer available. Replaces Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern.

• Vibratory polished for good looks and long lasting shine
• Performance upgrade for stock to mildly modified vehicles
• Universal calibration for easy bolt-on performance
• Manual choke (cable actuated - hand controlled) for precise cold start control
• Vacuum secondaries for use on wide variety of vehicles. Compensate for all vehicle weights, gearing & transmissions to allow smooth opening of secondaries.
• Single feed fuel inlet for easy installation
• Integrated 700R4/200R4 transmission kick down cable mounting
• Power valve blow-out protection
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
• Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.

ED2194

• Intake Section Included:Complete
• Engine Block Deck Height:Standard deck
• Carburetor Quantity:One
• Intake Style:Dual plane
• Basic Operating RPM Range:Idle-5,500
• Intake Manifold Height:3.960 in.
• Intake Finish:Natural
• Intake Material:Aluminum
• EGR:No
• Quantity:Sold individually.
• Notes:Includes Edelbrock square-bore carb adapter plate. Fits 253, 304, or 308 c.i.d. Holden V8 engines with carbureted style heads. Do not use high performance or competition intake gaskets. Pilot holes on the exhaust crossover may need drilled out depending on application. Accepts both square-bore and spread-bore carbs
• Special Attention:Manifold height: A-3.25 in., B-4.67 in.; Carb pad height: 3.96 in. Port exit dimensions: 1.07 in. x 1.83 in.

HO0-1850S

• Carburetor Use:Street
• CFM:600
• Choke:Manual
• Circuit:2
• Condition:New
• Emission Code:3
• Finish:Shiny
• Fuel:Gasoline
• Fuel Inlet:Single
• Marine Use:No
• Material:Aluminum
• Model:4160
• Primary Main Jet:66
• Primary Power Valve:6.5
• Primary Pump Nozzle Size:31
• Product Type:Carburetor
• Secondaries:Vacuum
• Supercharged Application:No
• Throttle Bore:1.563 inch
