Superchargedford347 EMA - Supercharged Ford 347 Windsor Turnkey 474HP 480Ft/Lb Dart Block Edelbrock Heads
Product Information
We start this combo off with a solid foundation, a brand new Dart SHP iron block, we then add all the good bits!
Scat crank, I beam rods, Probe pistons, Edelbrock E-Street Alloy heads,Comp Cams hydraulic roller cam just to mention a few. The engine comes complete with quality valve covers, oil pan, alternator etc. and MSD Ignition.
We didn't want to stop just there so we topped this beast off with a Weiand Polished 174 supercharger kit! This combo is proven to produce 475 5600RPM, Torque peaks at an impressive 480 Ft/Lb@ 4,900RPM. Dyno runs were done with 6PSI of boost.

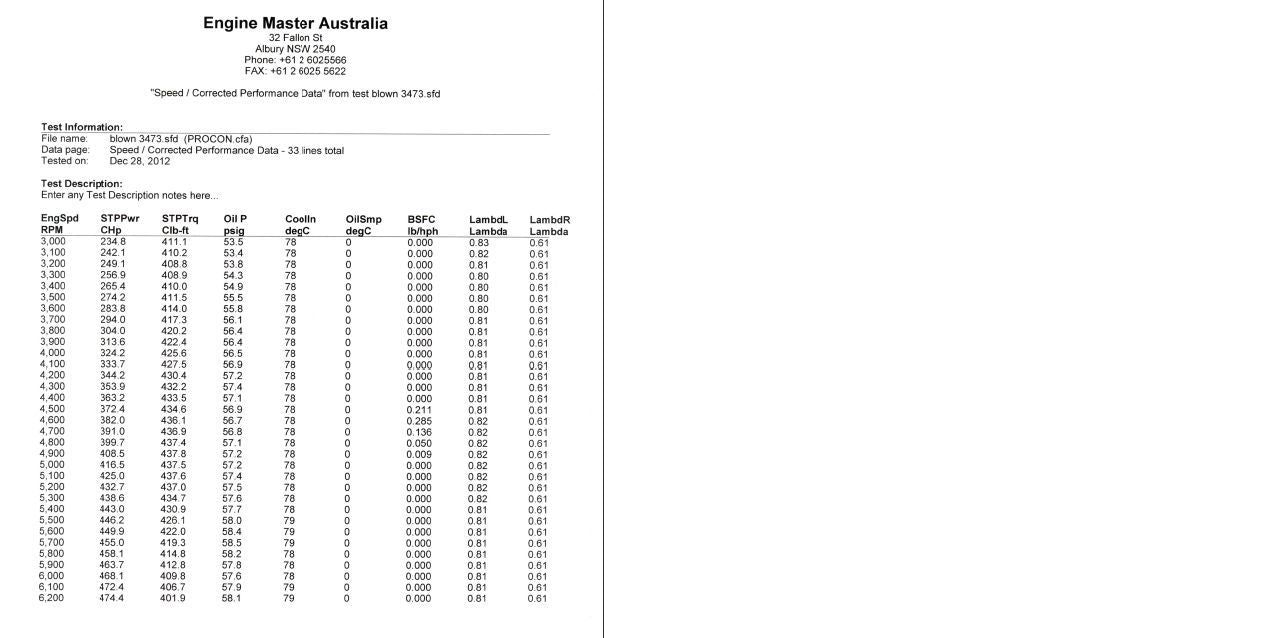

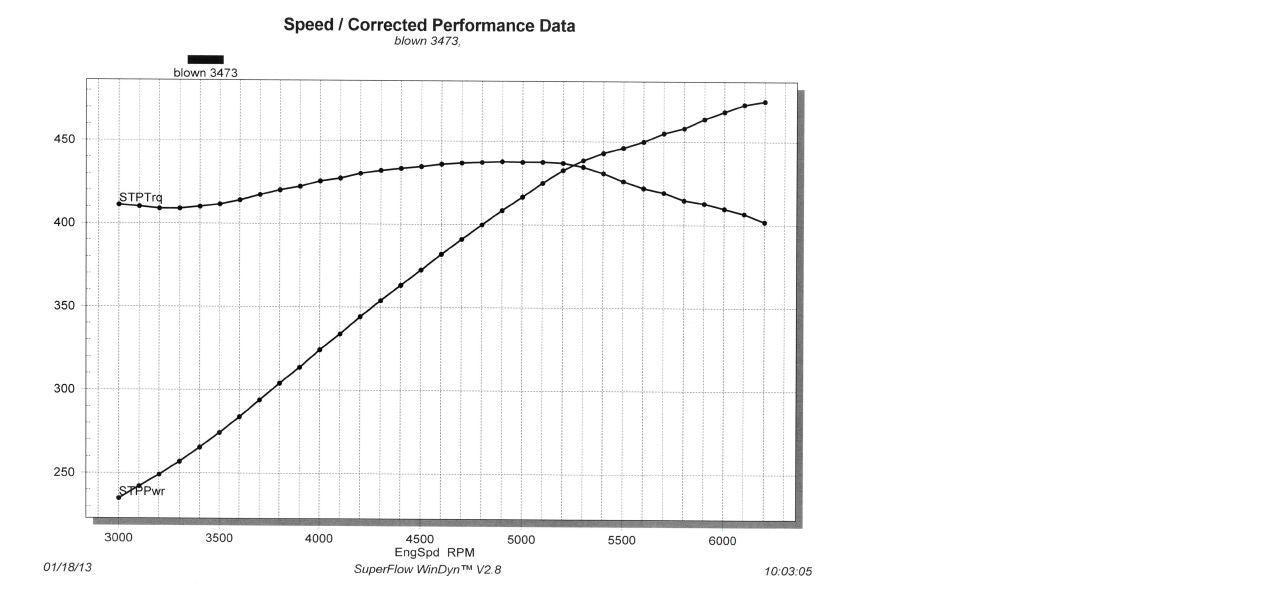

Each and every one of these347'sleaves here fully run in and dyno tuned (sheets will be included) on our recently upgraded Superflow 902 engine dyno!
All Parts are brand new, this is not a reconditioned engine!
We assemble these engines in house, aspects of this engine can be modified to suit specific requirements during the assembly process, it may change the price. Please call if you need further info on a customized package.
Below is a list of the components included with this package
- Heads: Edelbrock E-Street Alloy (Part No. ED5025)170cc Intake runner 2.020" Intake Valves 1.600" Exhausts
- Rotating Assembly: Scat 9000 Series Cast Lightweight Stroker Crank, Scat 4340 Series Forged I-Beam Rods, Probe SRS Dish Top Pistons, Sealed Power Plasma Moly Rings, Clevite Main & Rod Bearings
- Valvetrain: Comp Cams Nitrous HP Hydraulic Roller Cam 232/224 @ .050", 114° Lobe, Comp Cams High Energy Hydraulic Roller Lifters, Comp Cams Ultra Pro Mag Roller Rockers, Comp Cams Chromoly Pushrods
- Ignition: MSD Ready To Run Pro Billet Distributor (With Hold Down), MSD Blaster 3 Coil & Bracket, MSD Super Conductor Leads
- SuperCharger: Weiand 174 Polished Kit
- Misc: Melling Oil Pump & Pickup, Edelbrock High Volume Alloy Water Pump, Scat 157T Flexplate, Powerbond Race Series Balancer, Proform Alloy Valve covers, Holley Polished 750CFM Carburetor, Tuff Stuff 100 Amp 1 Wire Alternator, Chrome Fuel Rail, Dissy Hold Down, Felpro Gaskets & Seals
- All Parts are brand new, this is not a reconditioned engine!
- We assemble these engines in house, aspects of this engine can be modified to suit specific requirements during the assembly process, it may change the price. Please call if you need further info on a customized package.
- PLEASE EMAIL WITH YOUR SUBURB AND POSTCODE FOR A SHIPPING QUOTE.
