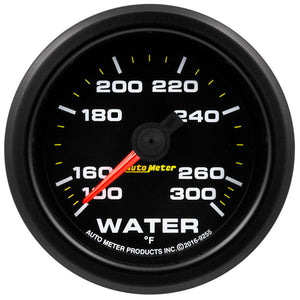

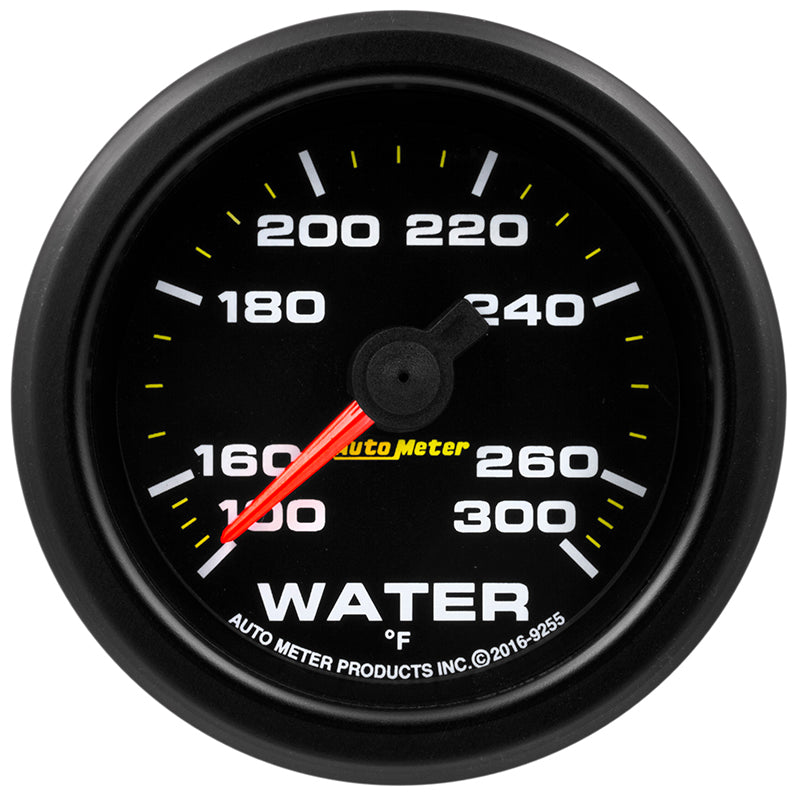

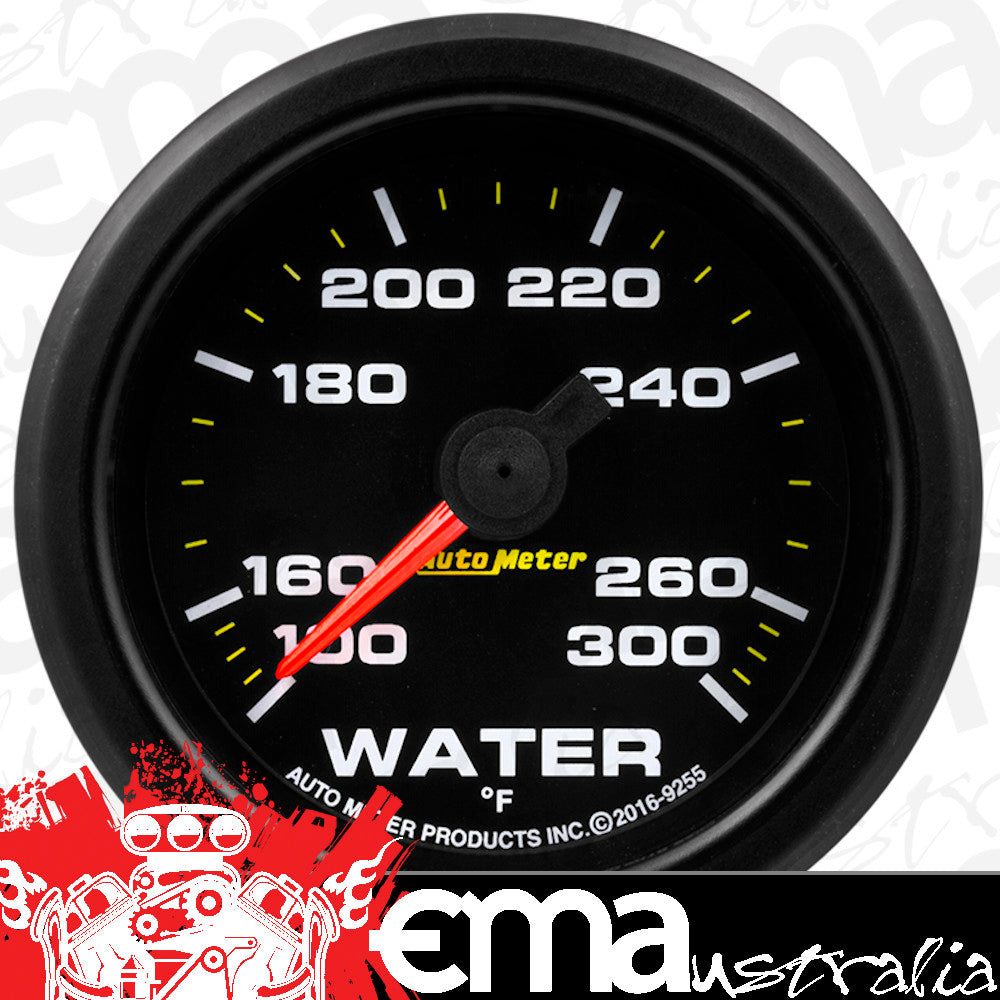

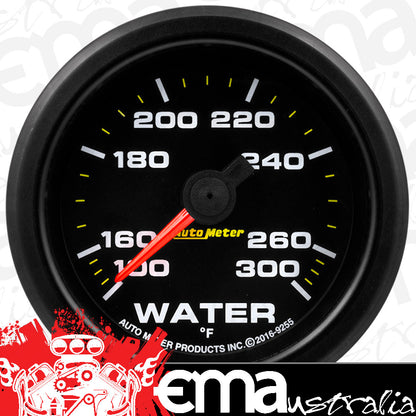

AutoMeter 9255 2 1/16", GAUGE, WATER TEMP, 300ºF, STEPPER MOTOR W/PEAK & WARN, EXTREME

9255 2 1/16", GAUGE, WATER TEMP, 300ºF, STEPPER MOTOR W/PEAK & WARN, EXTREME

1 2
AutoMeter
AutoMeter Part No. AU9255
$420.95 AUD
$452.40 AUD $420.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

AU9255

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Availability: Ships in 1-3 Business Days*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

Designed for the absolute harshest environments, the AutoMeter Extreme Environment series gauges provide the very best in IP69K sealing. One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you’ve got the proper oil weight and cooling capacity. Using AutoMeter’s advanced 1/8� NPT two wire temperature transducer, you can be assured of the most accurate possible readings of the life blood of your engine. The advanced Digital Stepper Motor Drive keeps needle movement smooth and precise. Preconfigured warning points change the gauge's LED illumination from white to red, allowing you to concentrate on the work at hand or taking the checkered flag. A direct plug in wiring harness is included for ease of installation.

Product Information

Designed for the absolute harshest environments, the AutoMeter Extreme Environment series gauges provide the very best in IP69K sealing. One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you’ve got the proper oil weight and cooling capacity. Using AutoMeter’s advanced 1/8� NPT two wire temperature transducer, you can be assured of the most accurate possible readings of the life blood of your engine. The advanced Digital Stepper Motor Drive keeps needle movement smooth and precise. Preconfigured warning points change the gauge's LED illumination from white to red, allowing you to concentrate on the work at hand or taking the checkered flag. A direct plug in wiring harness is included for ease of installation.

Technical Information

Features
• Waterproof Design (IP69K) - Sealed front and rear for protection against the elements in exposed cockpits
• 6 pin DT connector at gauge makes for a sealed connection
• Ultra light weight construction - 70% Lighter than Pro-Comp Liquid Filled 2-5/8� gauges, 60% lighter than Ultra-Lite 2-5/8� Mechanical, 25% lighter than Spek, 10% less than Elite
• White through-dial LED lighting with red pre-set full dial warning with solid and blink transitions
• External momentary switch for control of brightness and peak recall
• Stepper motor design with unique multi-scale dial derived from NASCAR tech for optimized resolution and accuracy in critical operating range
• Preset backlight color change warning - 230ºF
Specifications
Manufacturer
AutoMeter
MPN
Not provided
UPC
046074092558
Our Part Number
AU9255
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-1/4"
Lighting Type: LED
Lighting Color: White
Pointer Color: Fluorescent Red
Movement: Electric, Digital Stepper Motor
Gauge Type: Water Temperature
Range: 100-300 °F
Includes Sensor Unit: 2252
Includes Mounting Hardware: YES
Cross Sell: 5322, 9253, 9240, 9261, 9266, 9217
Upsell: 5322, 9253, 9240, 9261, 9266, 9217
Related Item: 2163, BEX-5000, EP-800, 0447XL
Prop 65 Yes/No: Yes
Prop 65 (C, R or CR): C
Prop 65 - Warning Label: ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png
Series: EXTREME ENVIRONMENT
Dial Color: Black
Lens Style: Flat, Clear
Bezel Color: Black
Bezel Style: Stack
