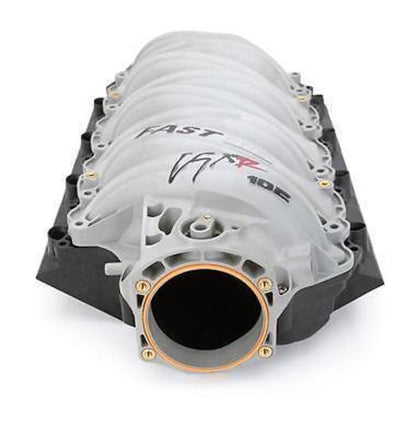

FAST FAST146202 LSXR 102mm Intake Manifold Chev LS7 7L 1800-6000RPM

LSXR 102mm Intake Manifold Chev LS7 7L 1800-6000RPM

Skip to product information
1 of 2
FAST - Fuel Air Spark Technology Part No. FAST146202
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:FAST146202

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

FAST LSXR 102MM INTAKE MANIFOLD CHEV LS7 7L 1800-6000RPM FAST146202The engineers at FAST teamed up with the airflow specialists at RHS to develop a 3-piece, polymer intake manifold. They are constructed from a proprietary advanced polymer material that offers a host of benefits over aluminum aftermarket intakes, including lighter weight and improved strength and heat dissipating characteristics. While they feature a 102mm air inlet that is perfectly suited to the FAST Big Mouth 102mm throttle body, they can also be used with stock or aftermarket 90mm or 92mm throttle bodies. Other features include integrated nitrous bungs and perfect bolt-on fitment that allows for the use of factory accessories without modifications or clearance concerns. The FAST LSXR intake manifolds' 3-piece modular design allows for easy disassembly and porting. This new design gives you the ability to remove individual runners from the manifold for modification.Specs:Application: Chev Holden LS7 7.0L
Engine Block Style Stock/OEM standard deck
Injection Style Multi-port
Basic Operating RPM Range 1,800-6,000
Intake Section Included Complete
EGR Yes
Injectors Included No
Fuel Rails Included No
Aftermarket Fuel Rail Required No
Throttle Body Included No
Throttle Body Bore Diameter 102mm
Supplemental Bosses Cast-In Yes
Supplemental Bosses Machined No
Supplemental Boss Quantity Eight
Runners Included Yes
Runners Removable Yes
Plenum Material Polymer
Plenum Finish Gray
Base Material Polymer
Base Finish Black
Quantity Sold as a kit.
Notes This is a 3-piece unit designed for a stock throttle body or big mouth 102 mm throttle body.
Items are shipped within one to two business days after full payment has been recieved.



Product Information

FAST LSXR 102MM INTAKE MANIFOLD CHEV LS7 7L 1800-6000RPM FAST146202The engineers at FAST teamed up with the airflow specialists at RHS to develop a 3-piece, polymer intake manifold. They are constructed from a proprietary advanced polymer material that offers a host of benefits over aluminum aftermarket intakes, including lighter weight and improved strength and heat dissipating characteristics. While they feature a 102mm air inlet that is perfectly suited to the FAST Big Mouth 102mm throttle body, they can also be used with stock or aftermarket 90mm or 92mm throttle bodies. Other features include integrated nitrous bungs and perfect bolt-on fitment that allows for the use of factory accessories without modifications or clearance concerns. The FAST LSXR intake manifolds' 3-piece modular design allows for easy disassembly and porting. This new design gives you the ability to remove individual runners from the manifold for modification.Specs:Application: Chev Holden LS7 7.0L
Engine Block Style Stock/OEM standard deck
Injection Style Multi-port
Basic Operating RPM Range 1,800-6,000
Intake Section Included Complete
EGR Yes
Injectors Included No
Fuel Rails Included No
Aftermarket Fuel Rail Required No
Throttle Body Included No
Throttle Body Bore Diameter 102mm
Supplemental Bosses Cast-In Yes
Supplemental Bosses Machined No
Supplemental Boss Quantity Eight
Runners Included Yes
Runners Removable Yes
Plenum Material Polymer
Plenum Finish Gray
Base Material Polymer
Base Finish Black
Quantity Sold as a kit.
Notes This is a 3-piece unit designed for a stock throttle body or big mouth 102 mm throttle body.
Items are shipped within one to two business days after full payment has been recieved.
