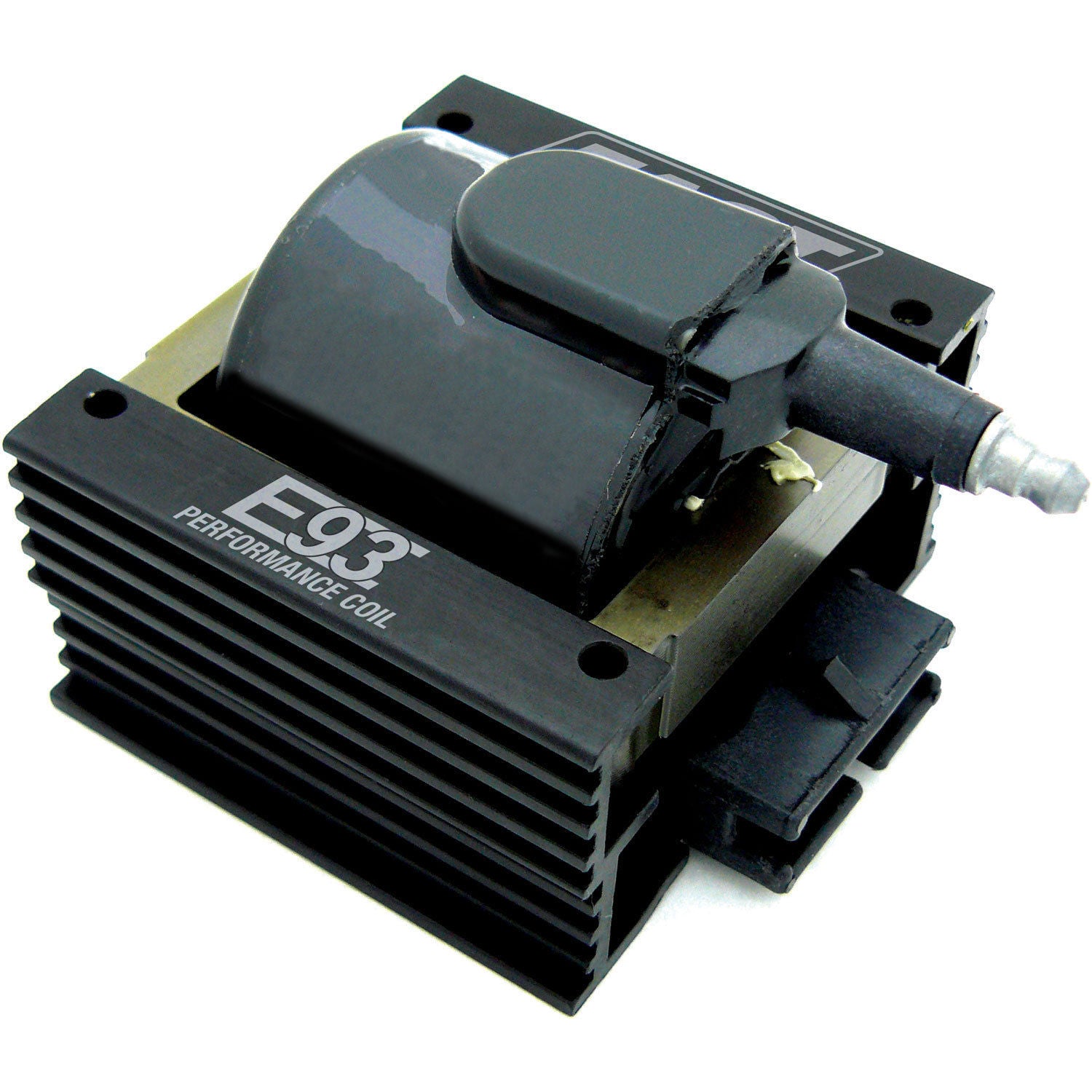

FAST 730-0192 E93 Racing Ignition Coil

730-0192 E93 Racing Ignition Coil

Skip to product information
1 of 2
FAST - Fuel Air Spark Technology Part No. FAST730-0192
Regular price $181.80 AUD
Regular price Sale price $181.80 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:FAST730-0192

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
Availability: Ships in 1-3 Business Days*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

When it comes to high compression and cylinder pressures with redline revving RPM, the E93 Coil is the best choice. This coil was engineered from the inside out to handle the needs of race engines. Inside the low profile coil housing is heavy gauge wiring for use on both sets of windings resulting in a highly effective turns ratio of 60:1. The internals are encapsulated in urethane for protection against extreme vibration and abuse from racing environments. The secondary tower is also lengthened to aid in spark isolation and terminal connection.

Product Information

When it comes to high compression and cylinder pressures with redline revving RPM, the E93 Coil is the best choice. This coil was engineered from the inside out to handle the needs of race engines. Inside the low profile coil housing is heavy gauge wiring for use on both sets of windings resulting in a highly effective turns ratio of 60:1. The internals are encapsulated in urethane for protection against extreme vibration and abuse from racing environments. The secondary tower is also lengthened to aid in spark isolation and terminal connection.

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
FAST
MPN
Not provided
UPC
021174124293
Our Part Number
FAST730-0192
Weight: 2.13 lbs
Ballast Resistor Included: No
Mounting Bracket Included: Yes
Turns Ratio: 60:1
Terminal Quantity: 2
Spark Duration: 245 uS
Secondary Resistance: 820 ohms
Secondary Inductance: 6.8 H
Quantity: Sold Individually
Primary Resistance: .20 ohms
Primary Inductance: 1.9 mH
Peak Current: 615 mA
Oil Filled: No
Mounting Position: Any
Mount Type: Integral
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Meets or Exceeds OEM Specs: Yes
Maximum Voltage: 50,000 V
Length: 4.25
Leakage Inductance: .14 mH
Height: 3.25
Diameter: N/A
Coil Wire Terminal Quantity: 1
Coil Wire Included: No
Coil Wire Attachment: Male/HEI
Coil Style: E-Core
Coil Shape: Square
Coil Internal Construction: Epoxy
Coil Color: Black
Width: 3.5
C.A.R.B. Exempt?: Yes
C.A.R.B. EO Number: D-255-60
